Left Front Tweeter Connector - C513

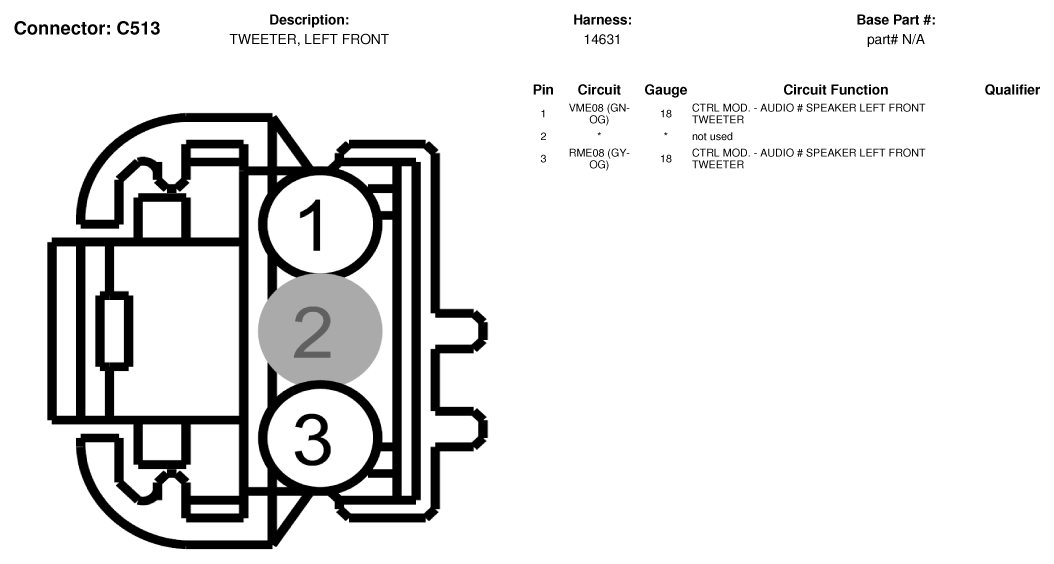

Fig 1: Left Front Tweeter Connector End View (C513)
Courtesy of FORD MOTOR CO.
