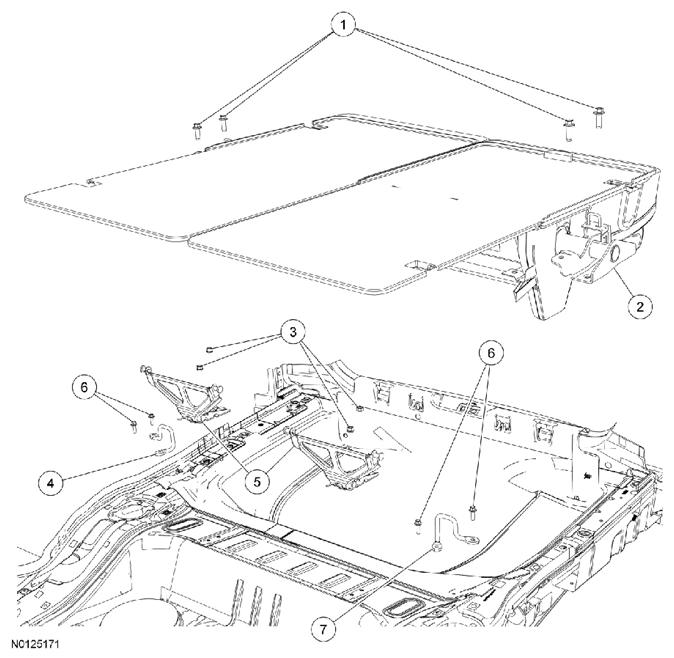

Exploded View
NOTE:
Manual seat shown, power similar.
SEAT PARTS DESCRIPTION CHART
| Item | Service Part Number | Description | Torque |
|---|---|---|---|
| 1 | W505285 | Seat mounting bracket-to-floor bolts (4 required) | 80 Nm (59 lb-ft) |
| 2 | - | Seat assembly | - |
| 3 | N804796 | Load floor support-to-floor pan nuts | 18 Nm (159 lb-in) |
| 4 | 62440 | Right Hand (RH) cushion floor striker | - |
| 5 | 60592 | Load floor supports | - |
| 6 | W505264 | Cushion floor striker-to-floor pan bolts | 23 Nm (17 lb-ft) |
| 7 | 62441 | Left Hand (LH) cushion floor striker | - |
