Cruise Control - Non Adaptive
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

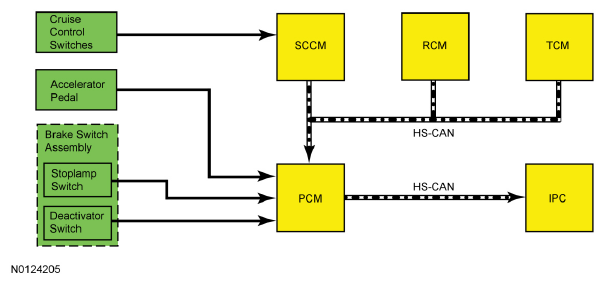

Fig 1: Cruise Control - System Diagram (Non-Adaptive)
Courtesy of FORD MOTOR CO.
