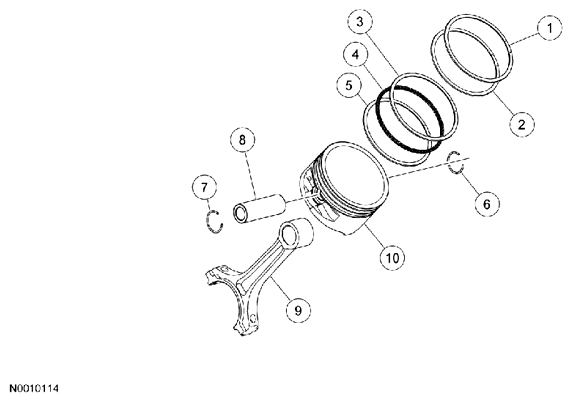

Exploded View
ITEM DESCRIPTION CHART
| Item | Service Part Number | Description |
|---|---|---|
| 1 | - | Piston compression upper ring (part of 6148) |
| 2 | - | Piston compression lower ring (part of 6148) |
| 3 | - | Piston oil control upper segment ring (part of 6148) |
| 4 | - | Piston oil control spacer (part of 6148) |
| 5 | - | Piston oil control lower segment ring (part of 6148) |
| 6 | 6140 | Piston pin retainer clip |
| 7 | 6140 | Piston pin retainer clip |
| 8 | 6135 | Piston pin |
| 9 | 6200 | Connecting rod |
| 10 | 6110 | Piston |
