Exploded View

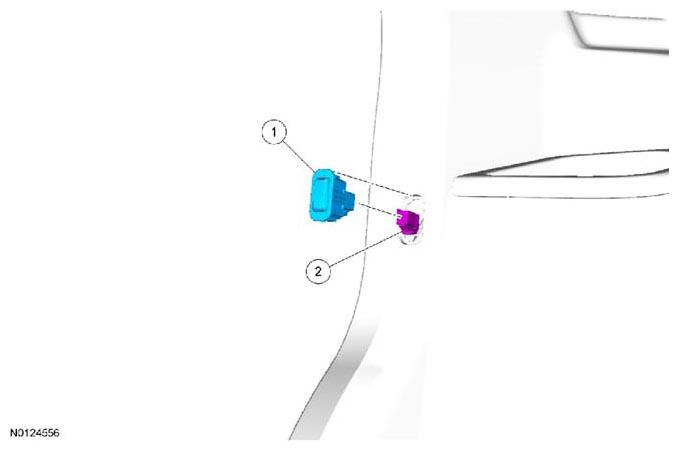

Fig 1: Identifying Seat Control Switch
G07427210Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Service Part Number Description
1 14C715 Switch assembly
2 Part of 14A005 Electrical connector
