Console Front Power Point Connector - C3063

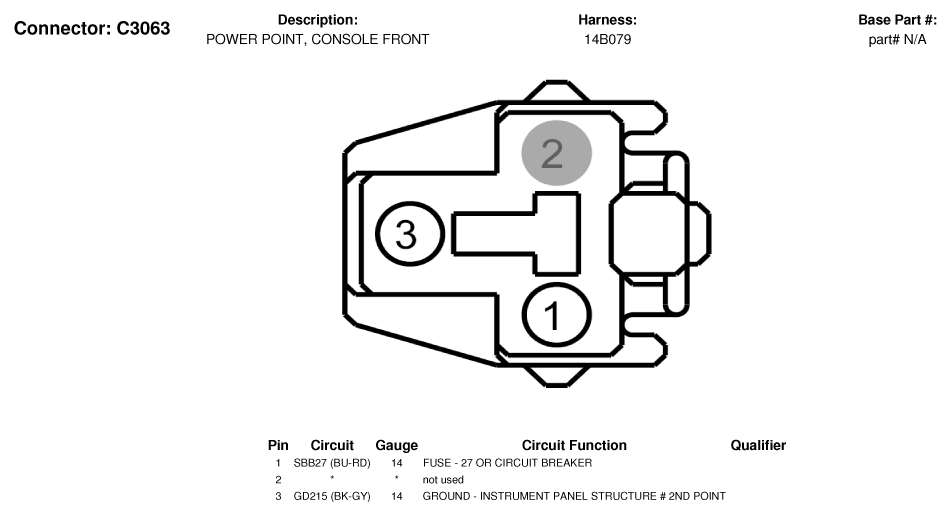

Fig 1: Console Front Power Point Connector End View (C3063)
G07328148Courtesy of FORD MOTOR CO.
