Brake Fluid Level Switch Connector - C124

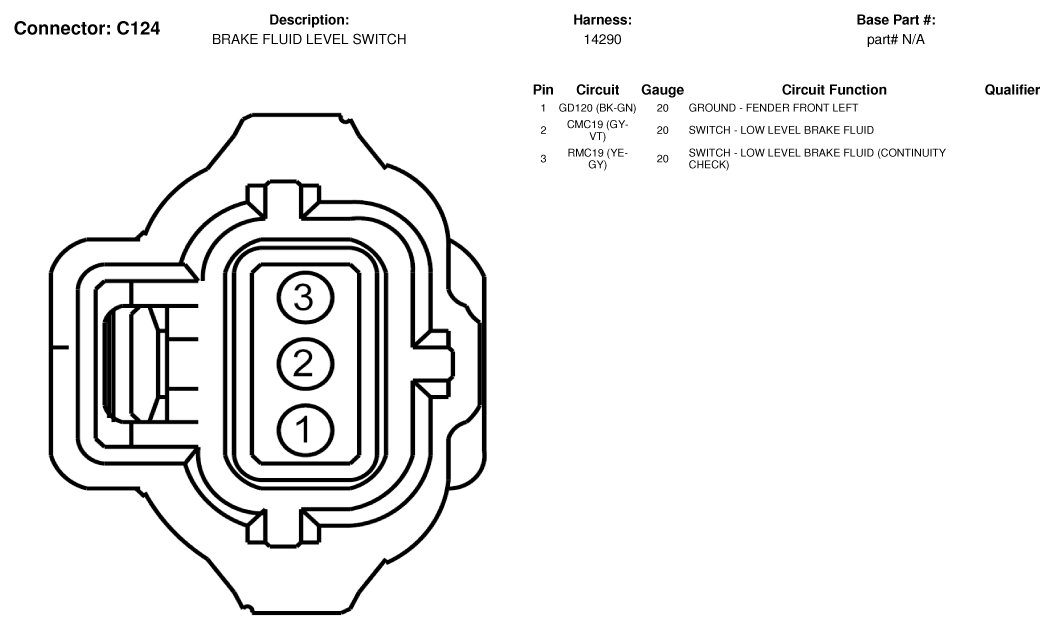

Fig 1: Brake Fluid Level Switch Connector End View (C124)
G07327856Courtesy of FORD MOTOR CO.
