Instrument Panel and Console

Power Point

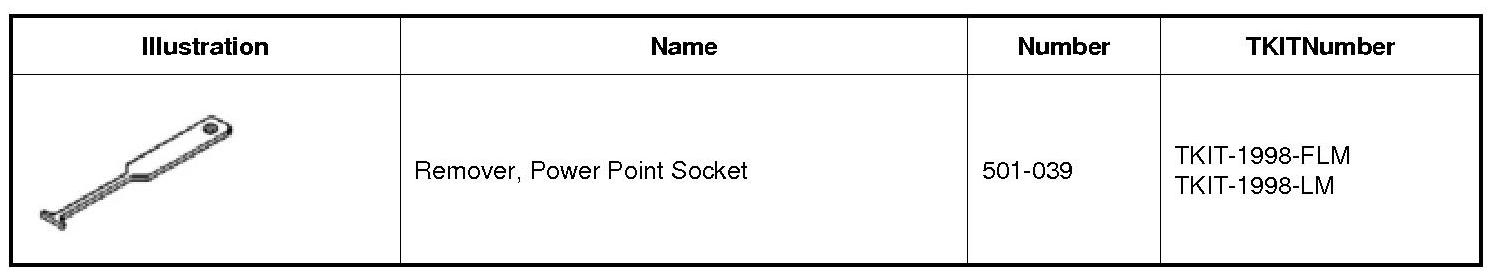

Special Tool(s)






Removal

1. Open the power point cover.

2. Install 501-039 in one of the power point socket slots.





3. Position 501-039 so that it engages in the adjacent slot.





4. Using 501-039, pull the power point socket out of the retainer.





5. Disconnect the electrical connector.

Installation

1. Connect the electrical connector.

2. Slide the power point socket into the retainer.
