Global Positioning System Module (GPSM)

WARNING: Before beginning any service procedure, REFER to Safety Warnings. Failure to follow this instruction may result in serious personal injury [1][2]Safety Warnings.

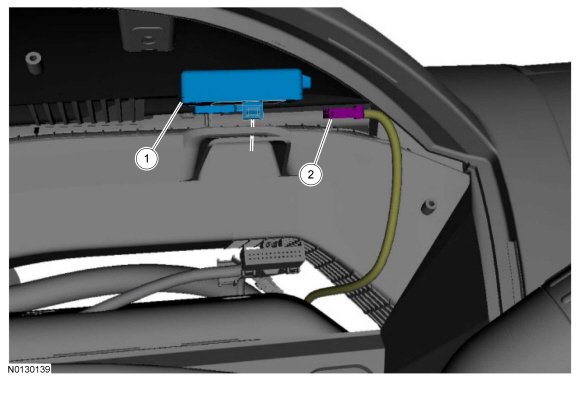

Exploded View










Removal

1. Remove the IPC (Instrument Panel Cluster). REFER to Instrument Panel Cluster (IPC). Service and Repair

2. Release the 2 clips and remove the GPSM (Global Positioning System Module).

1. Disconnect the electrical connector.

Installation

1. To install, reverse the removal procedure.
