Front Controls Interface Module Connector End View (C2402)

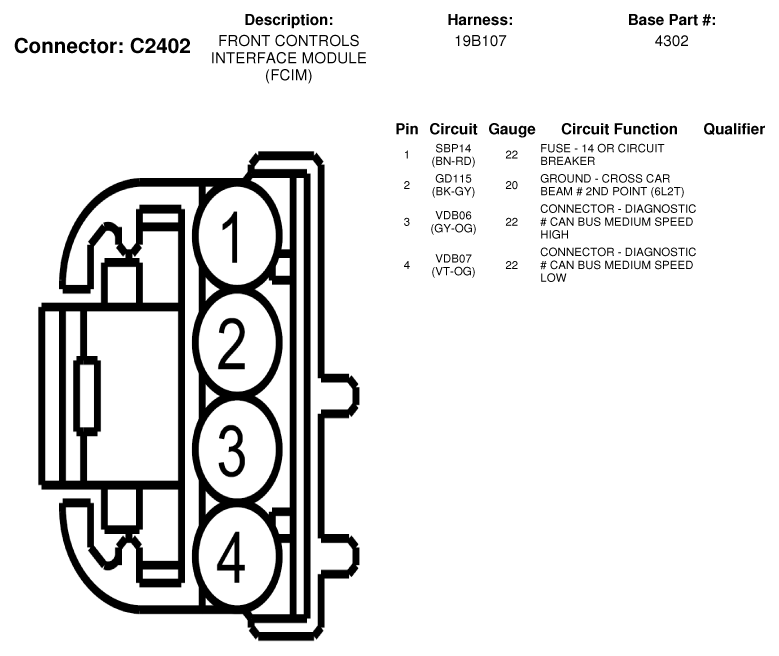

Fig 1: Front Controls Interface Module Connector End View (C2402)
G07334364Courtesy of FORD MOTOR CO.
