Heating Ventilation Air Conditioning (HVAC) Module: Notes

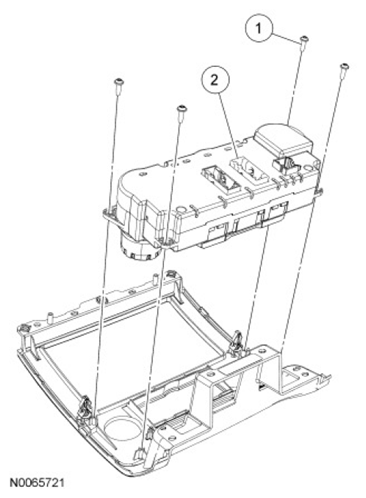

Fig 1: Identifying Heating Ventilation Air Conditioning (HVAC) Module Components
G07440263Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 W505943 HVAC module screw (4 required)
2 19980 HVAC module
