Blower Motor: Notes

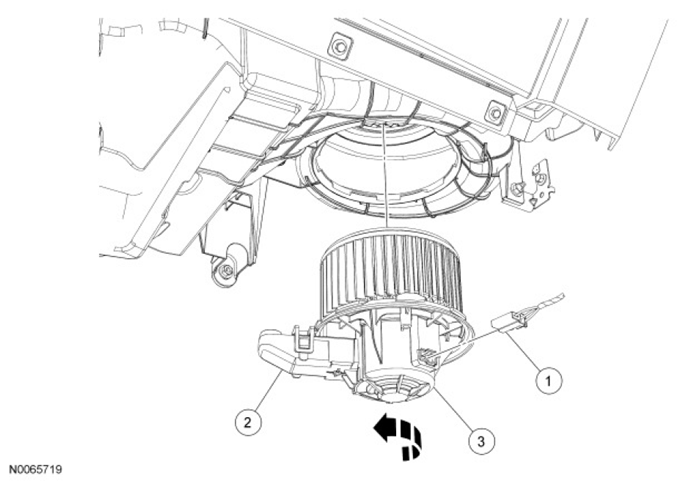

Fig 1: Rotating Blower Motor
G07440233Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Blower motor electrical connector (part of 19D887)
2 - Blower motor vent tube (part of 19805)
3 19805 Blower motor
