Special Tool(s)

SPECIAL TOOLS

G07438917
 Installer, Drive Pinion Flange
205-393
G07438918
 Installer, Transmission Output
Shaft Flange
205-495
G07438919
 Installer, Wheel Speed Sensor Ring
206-060
G07438920
 Installer, Wheel Speed Sensor Ring
206-084/1

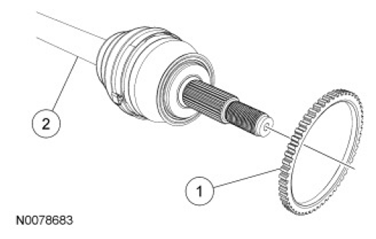

Fig 1: Identifying Wheel Speed Sensor Ring Components
G07438921Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 2C182 Wheel speed sensor ring
2 3A427 LH/3A428 RH Halfshaft
