Engine Lubrication Components - Exploded View




Engine Lubrication Components - Exploded View

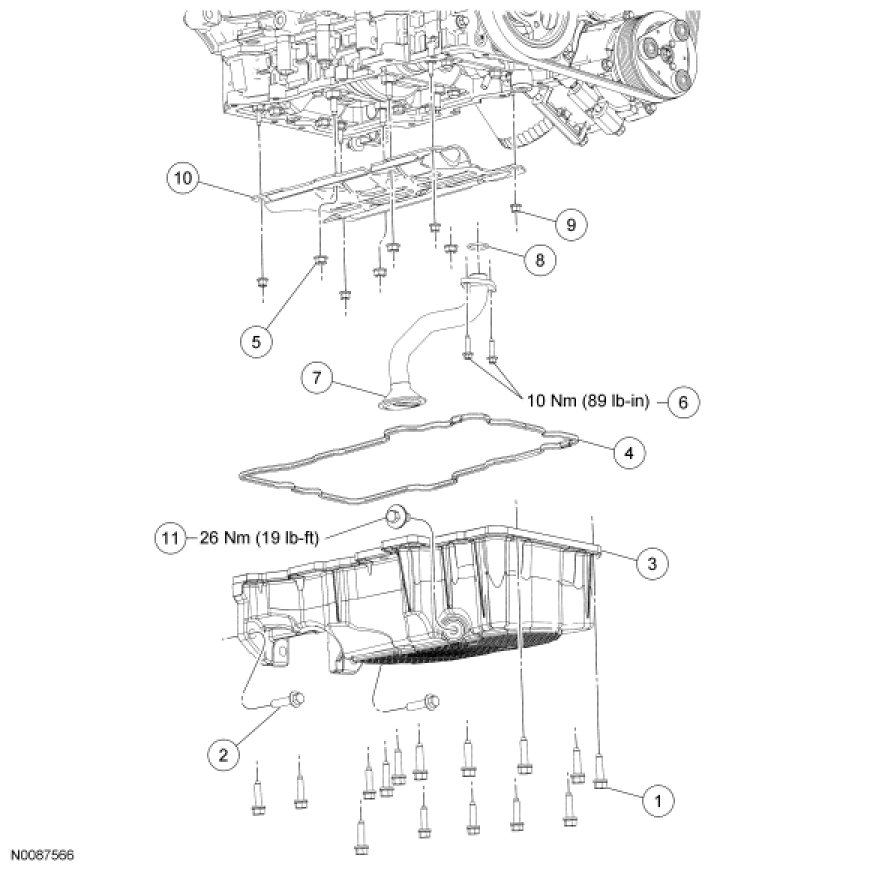

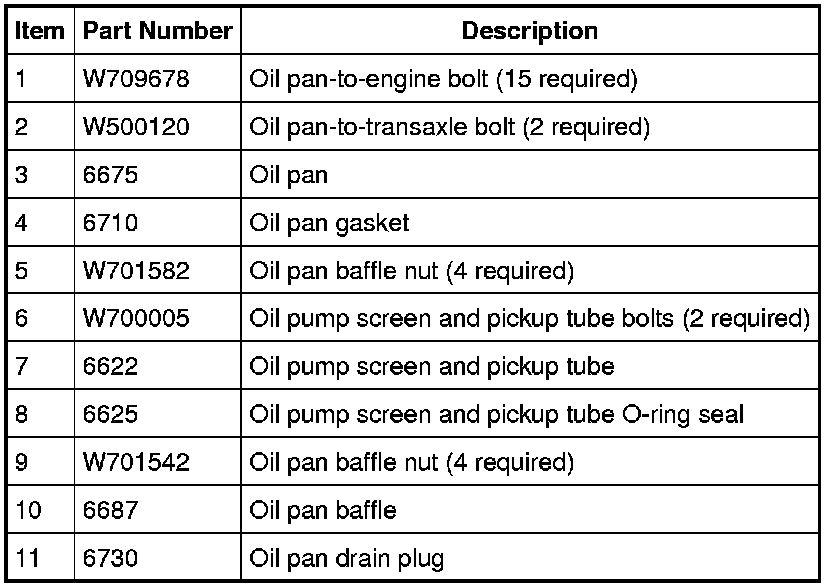

Oil Pan, Oil Pan Baffle and Oil Pump Screen and Pickup Tube

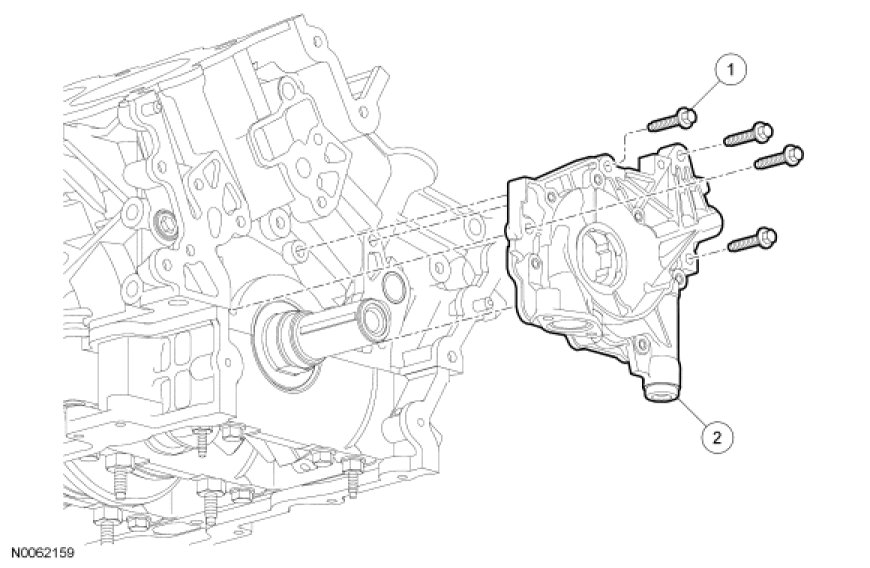

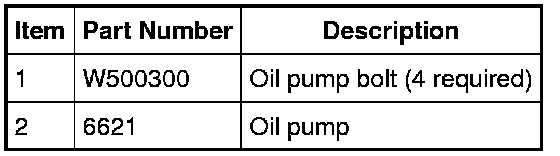

Oil Pump
