Transmission Speed Sensor: Service and Repair

Vehicle Speed Sensor (VSS)









Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

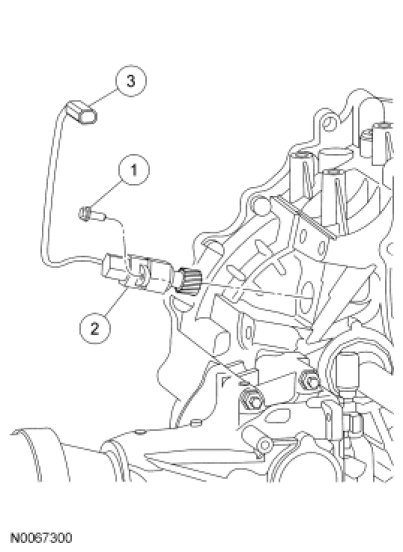

2. NOTE: The electrical connector and the Vehicle Speed Sensor (VSS) are accessed from the top of the transaxle.

Remove the VSS bolt.

3. Disconnect the electrical connector and remove the VSS.

4. To install, reverse the removal procedure.
