Escape 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Assist Distance Sensor
>>

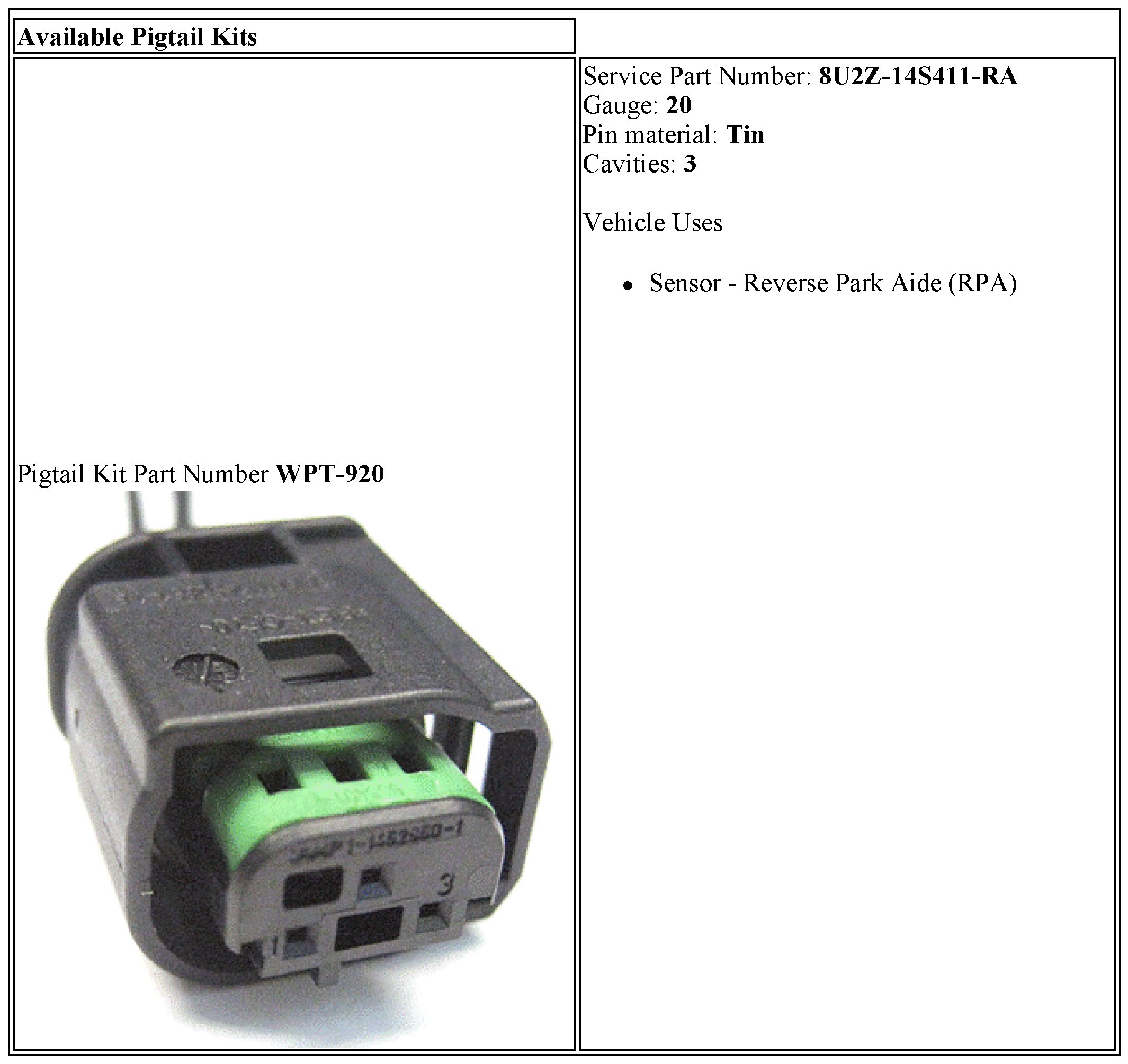

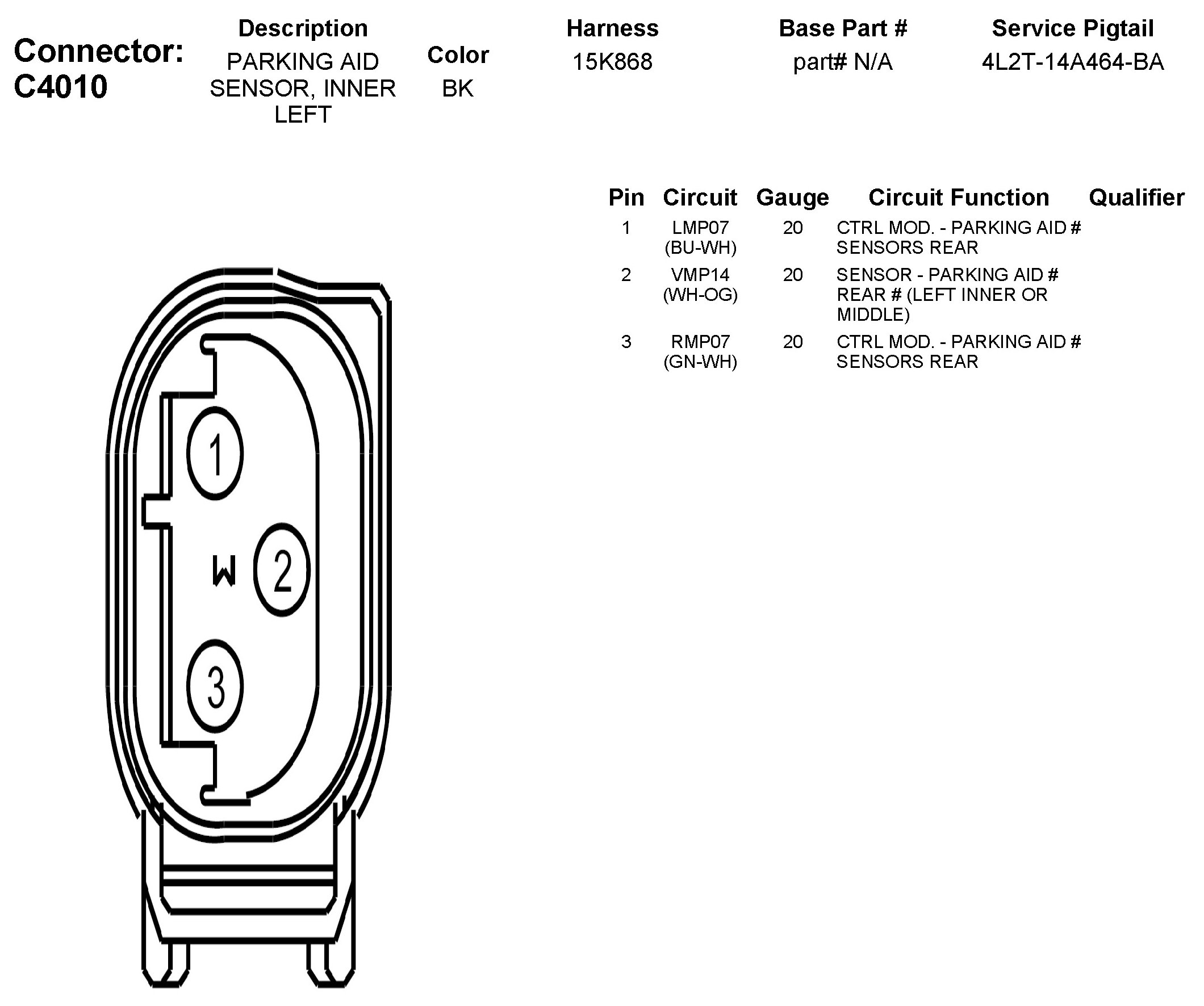

C4010 Parking Aid Sensor, Inner Left
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
C4010 Parking Aid Sensor, Inner Left
