Home >> Ford >> 2011 >> Escape 2WD L4-2.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor >> C3209 Side Impact Sensor, Driver 1
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

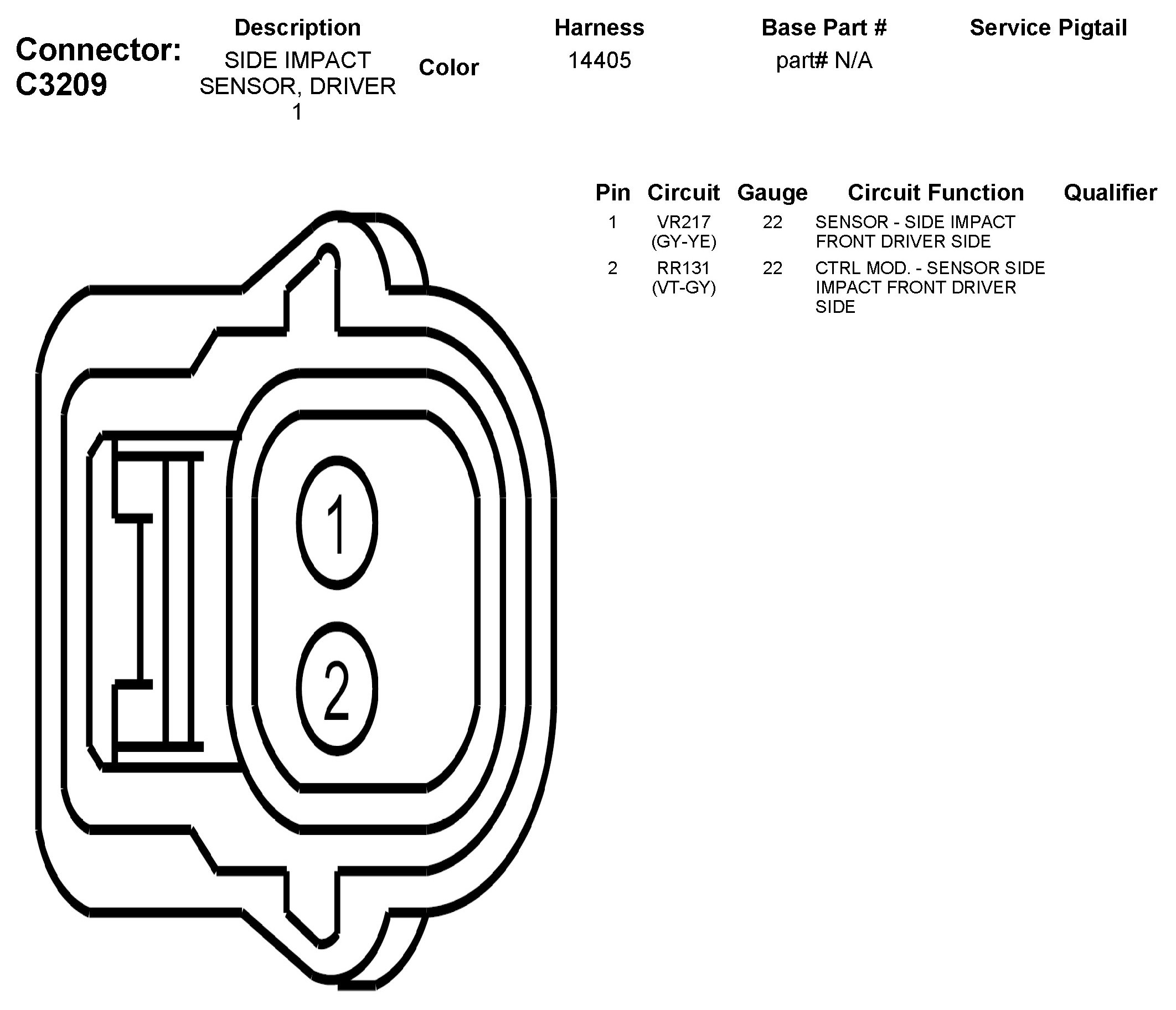

C3209 Side Impact Sensor, Driver 1
