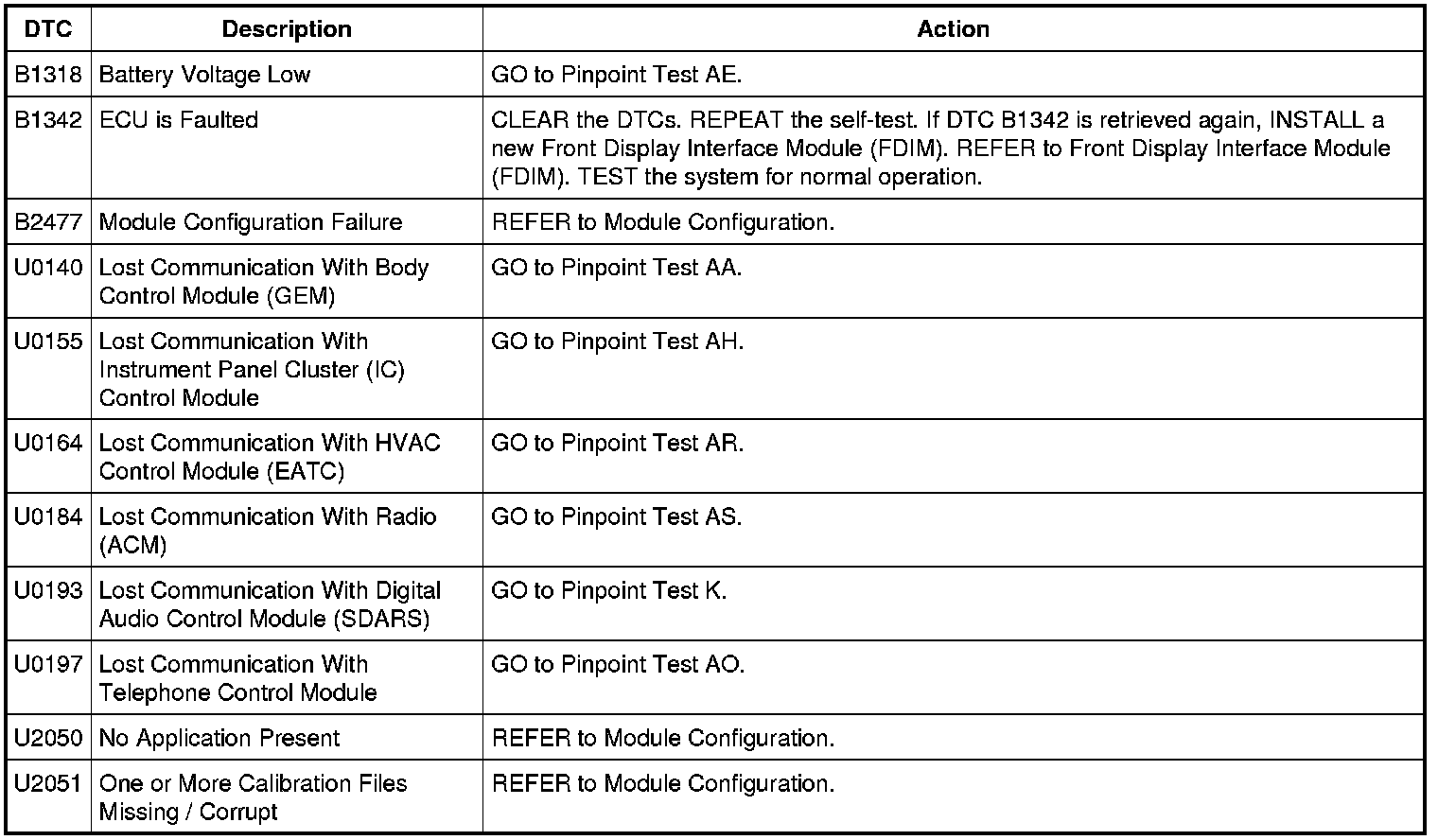

Front Display Interface Module (FDIM) DTC Chart
Information and Entertainment System
DTC Charts
Front Display Interface Module (FDIM) DTC Chart
