Test DN: Motor Electronics Coolant Temperature (MECT) Sensor

PINPOINT TEST DN: MOTOR ELECTRONICS COOLANT TEMPERATURE (MECT) SENSOR

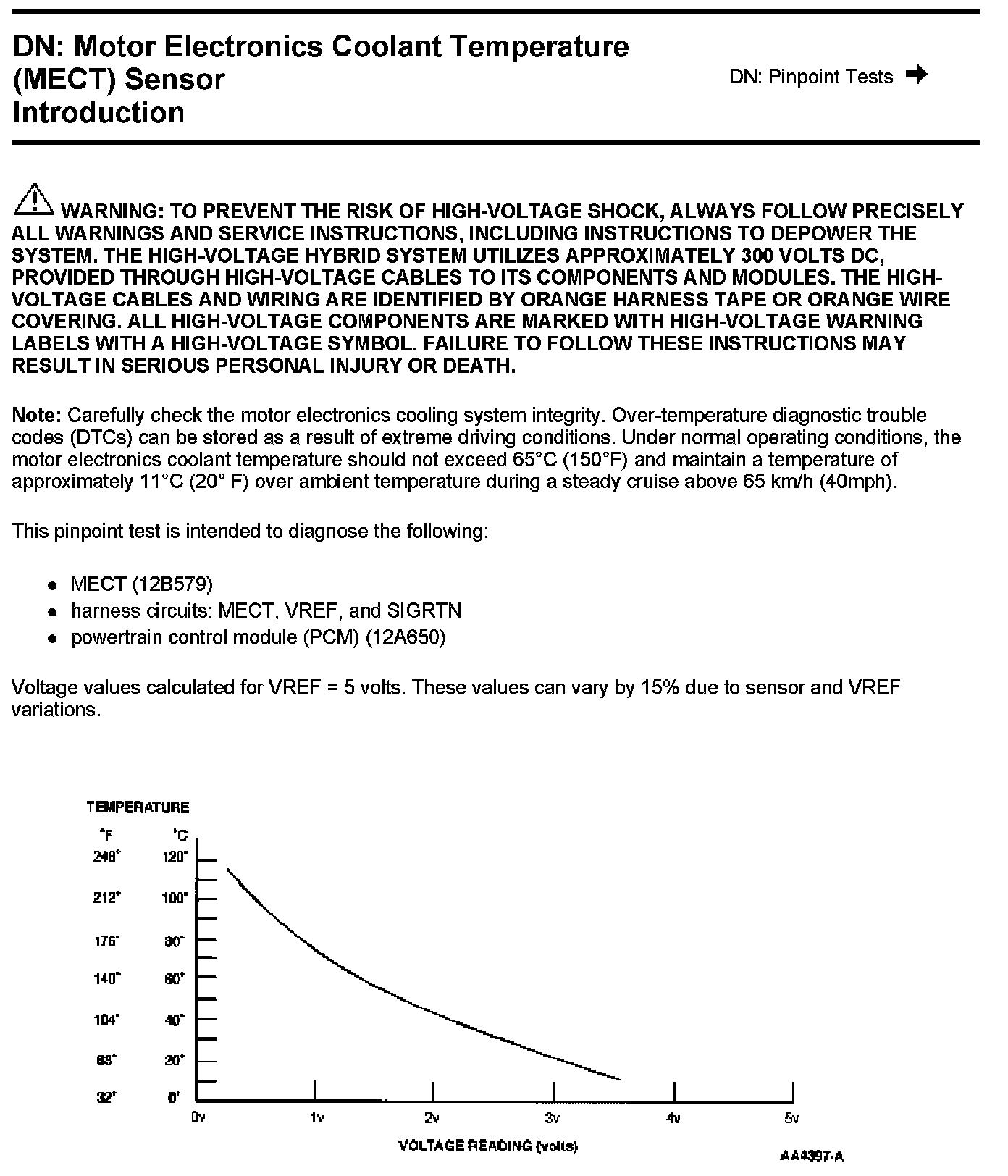

Warning And Note:

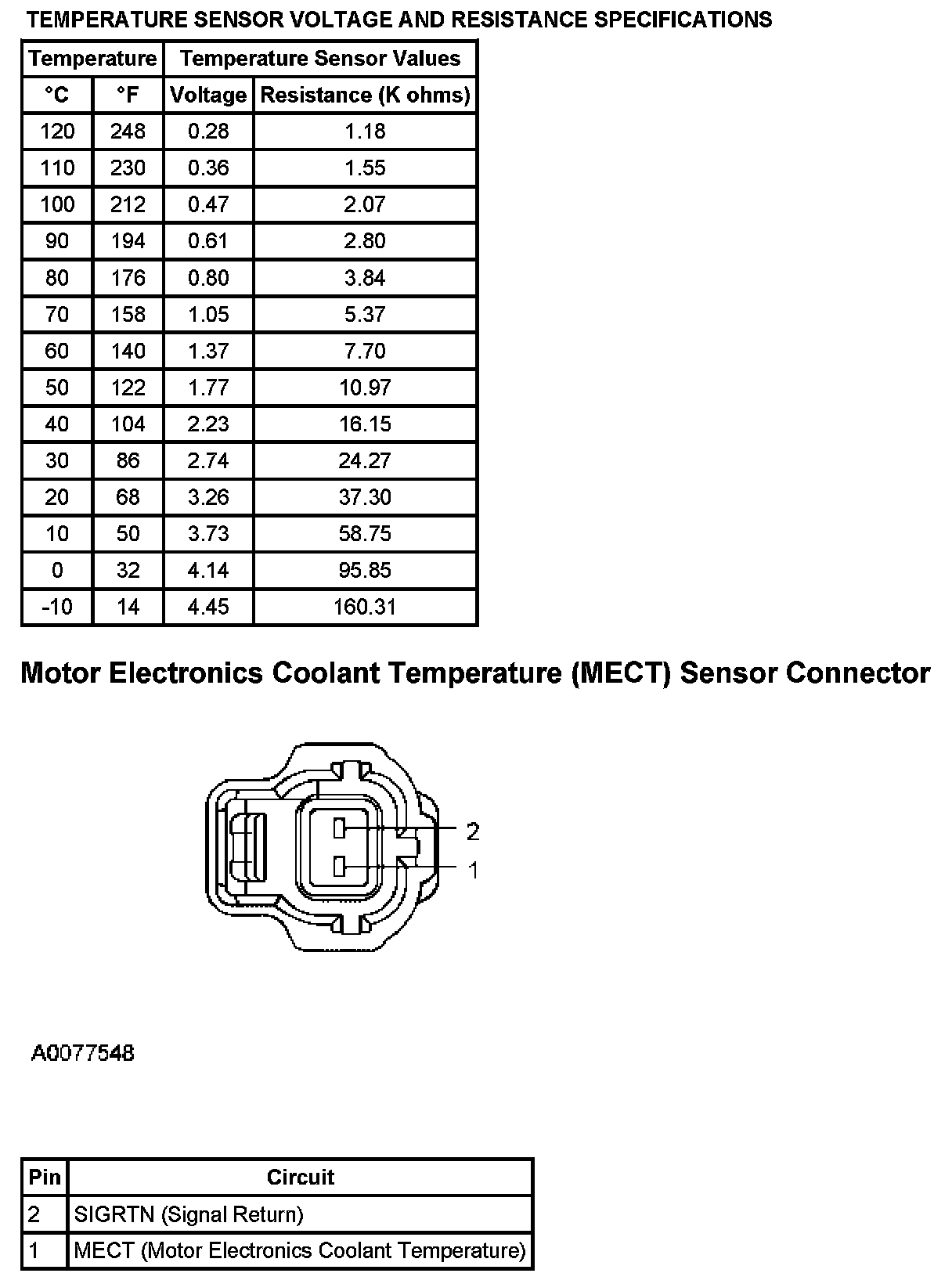

Temperature Sensor Voltage And Resistance Specifications And Motor Electronics Coolant Temperature (MECT) Sensor Connector:

Powertrain Control Module (PCM) Connector:

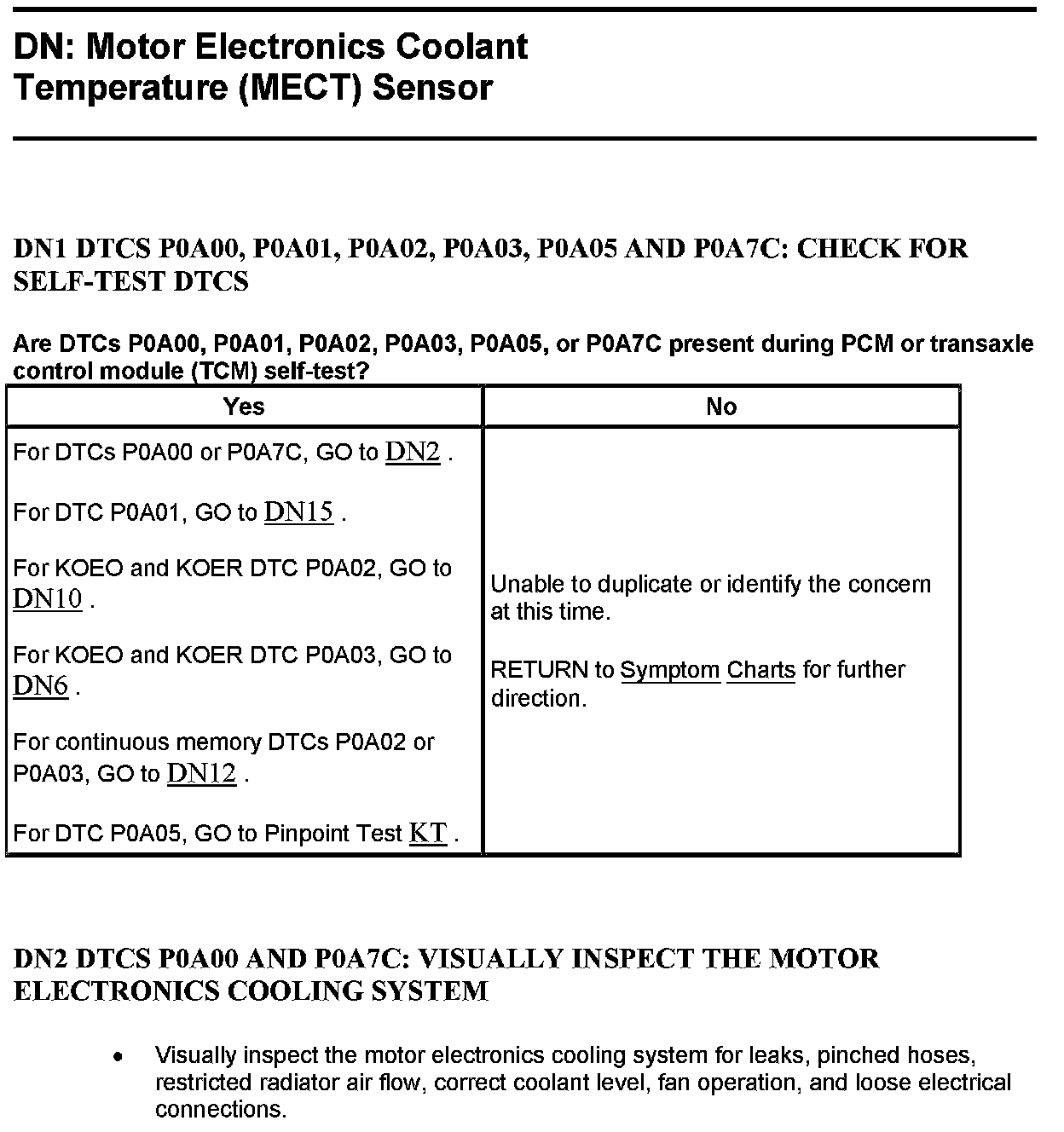

DN1-DN2:

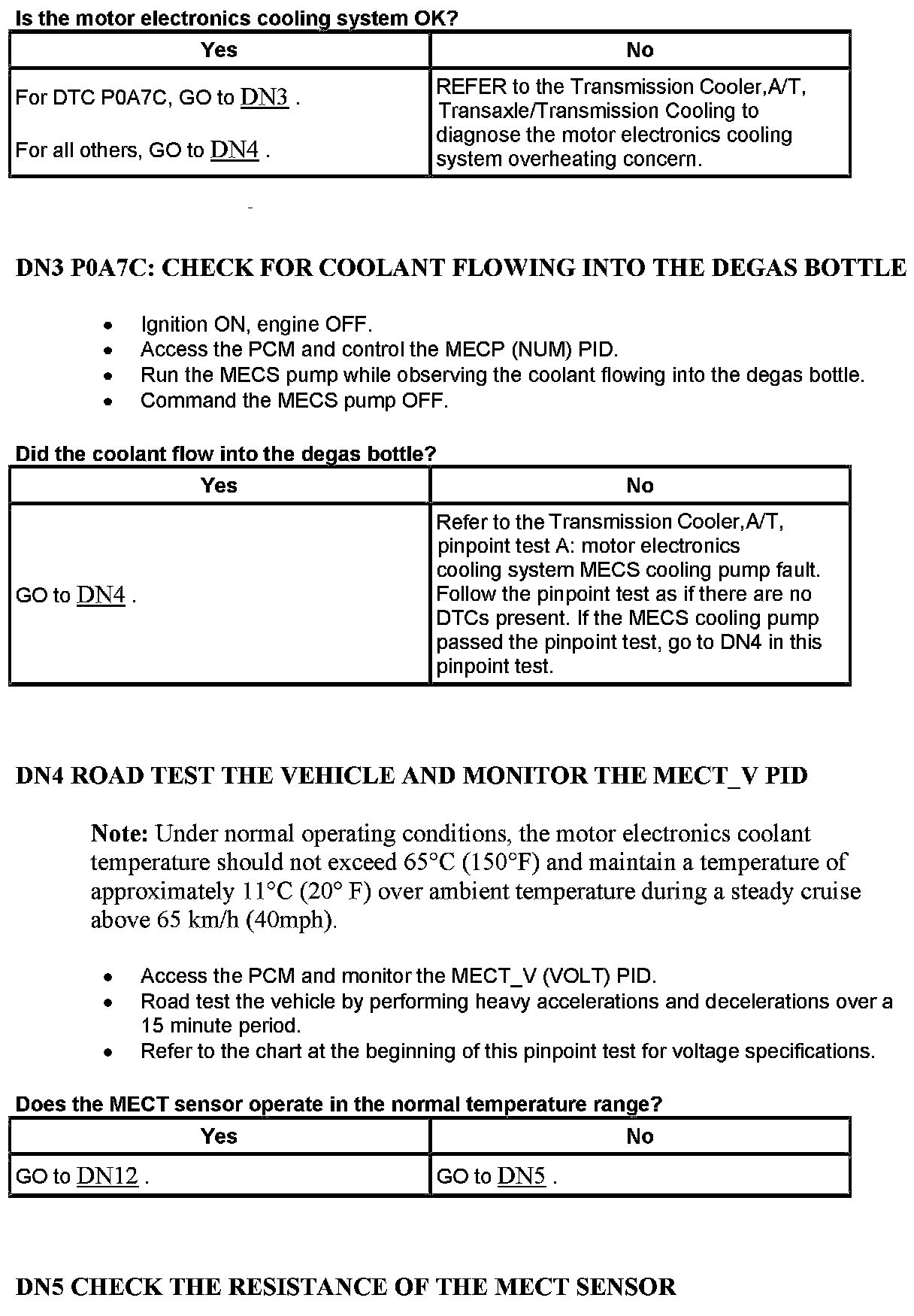

DN2-DN5:

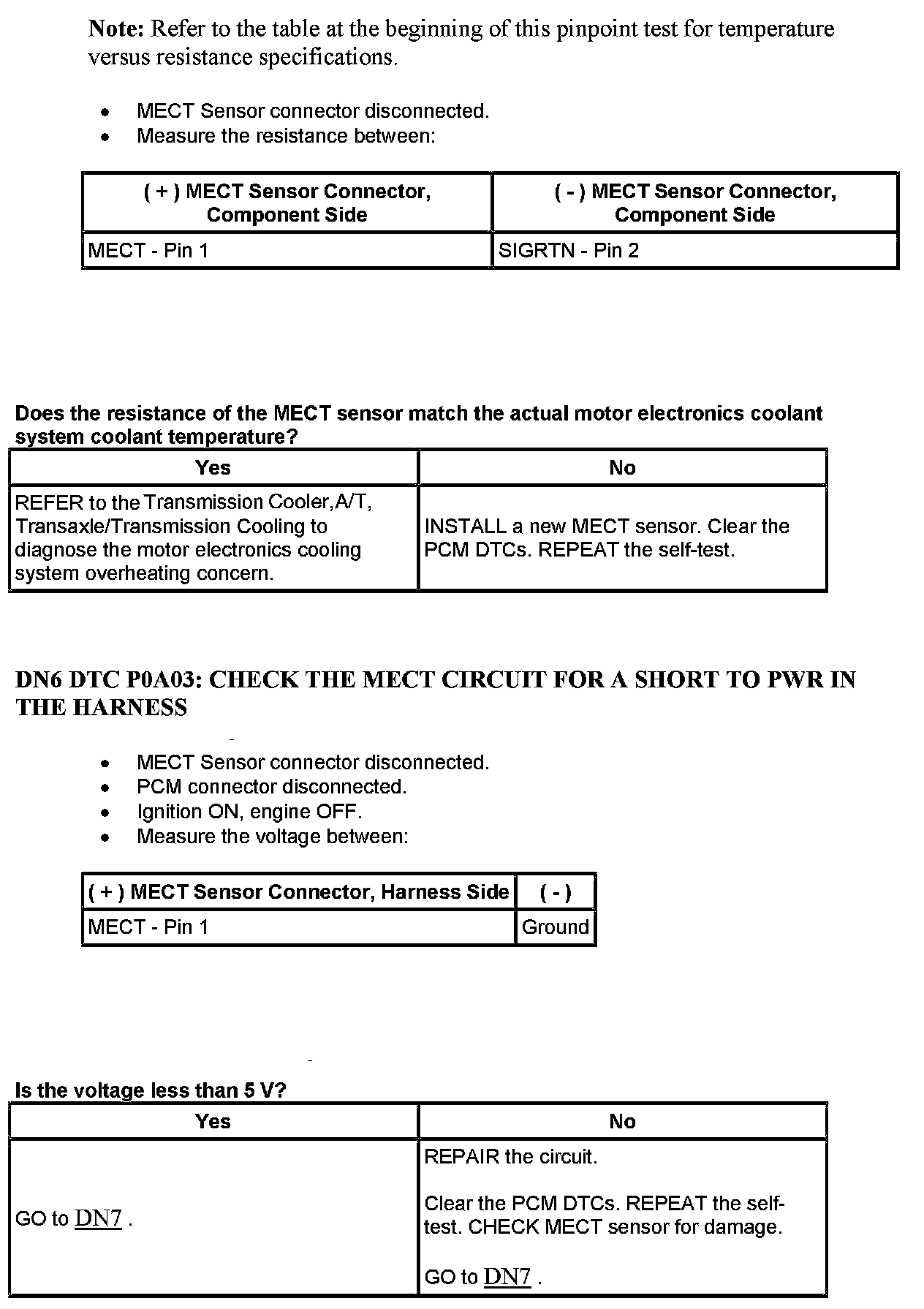

DN5-DN6:

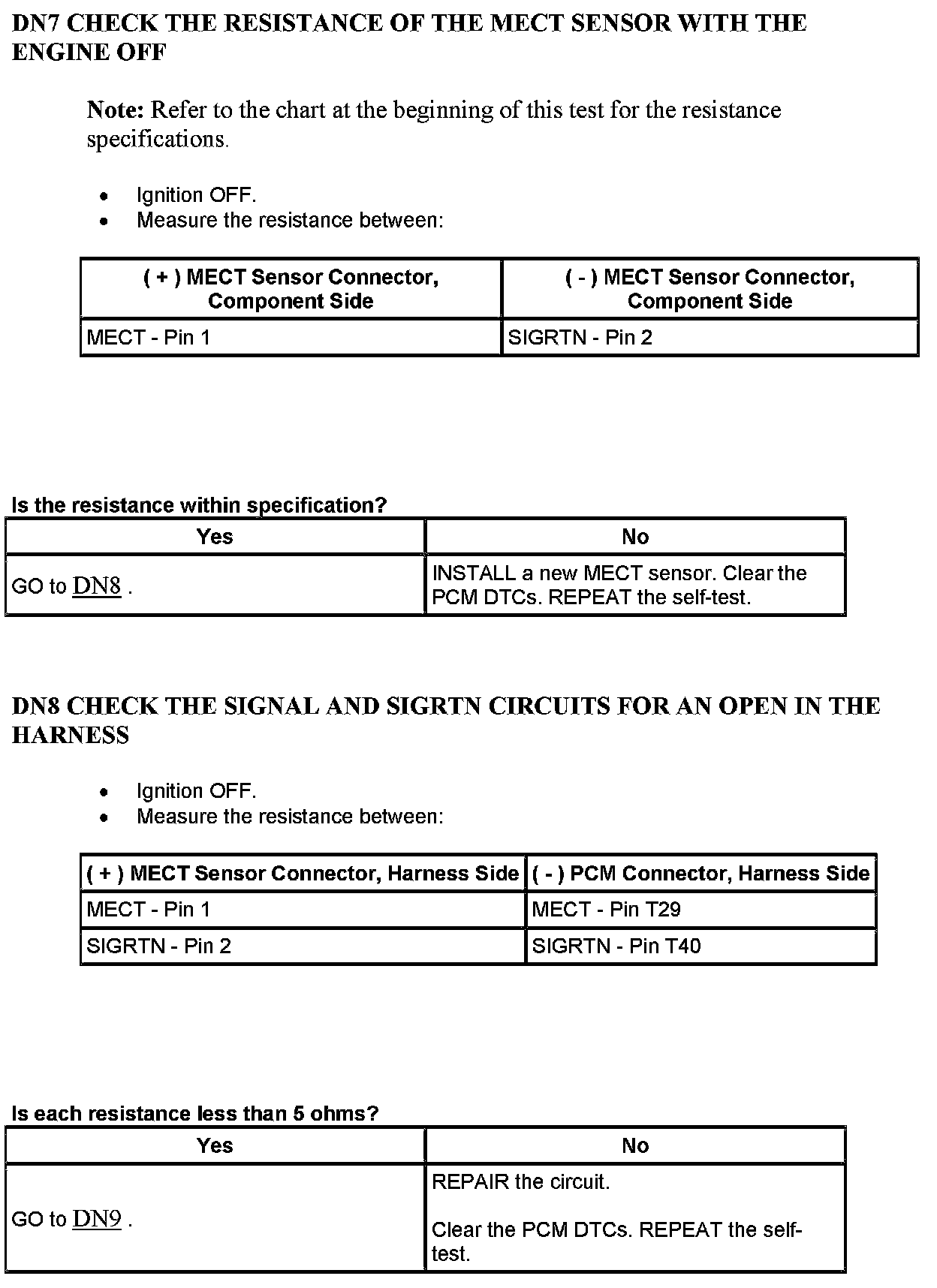

DN7-DN8:

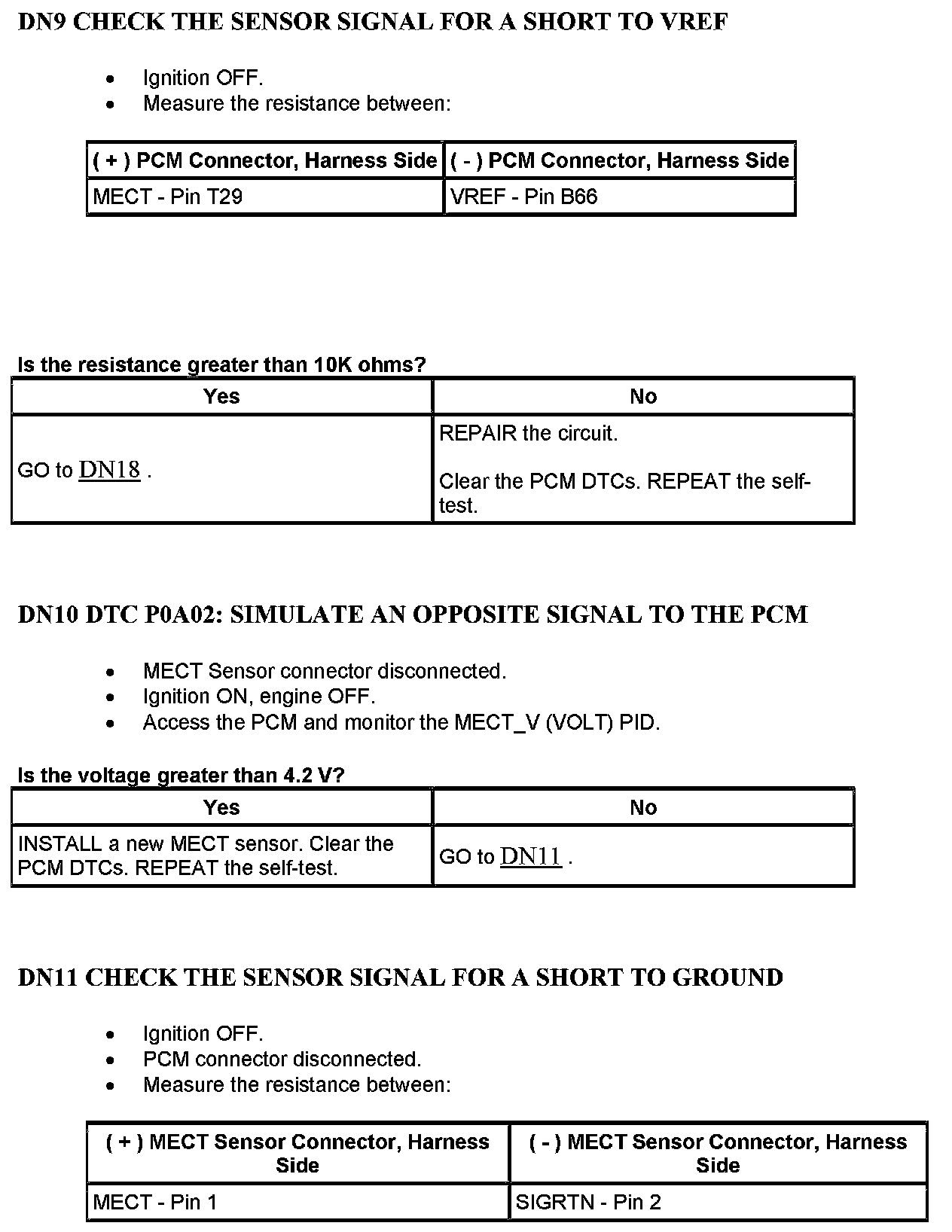

DN9-DN11:

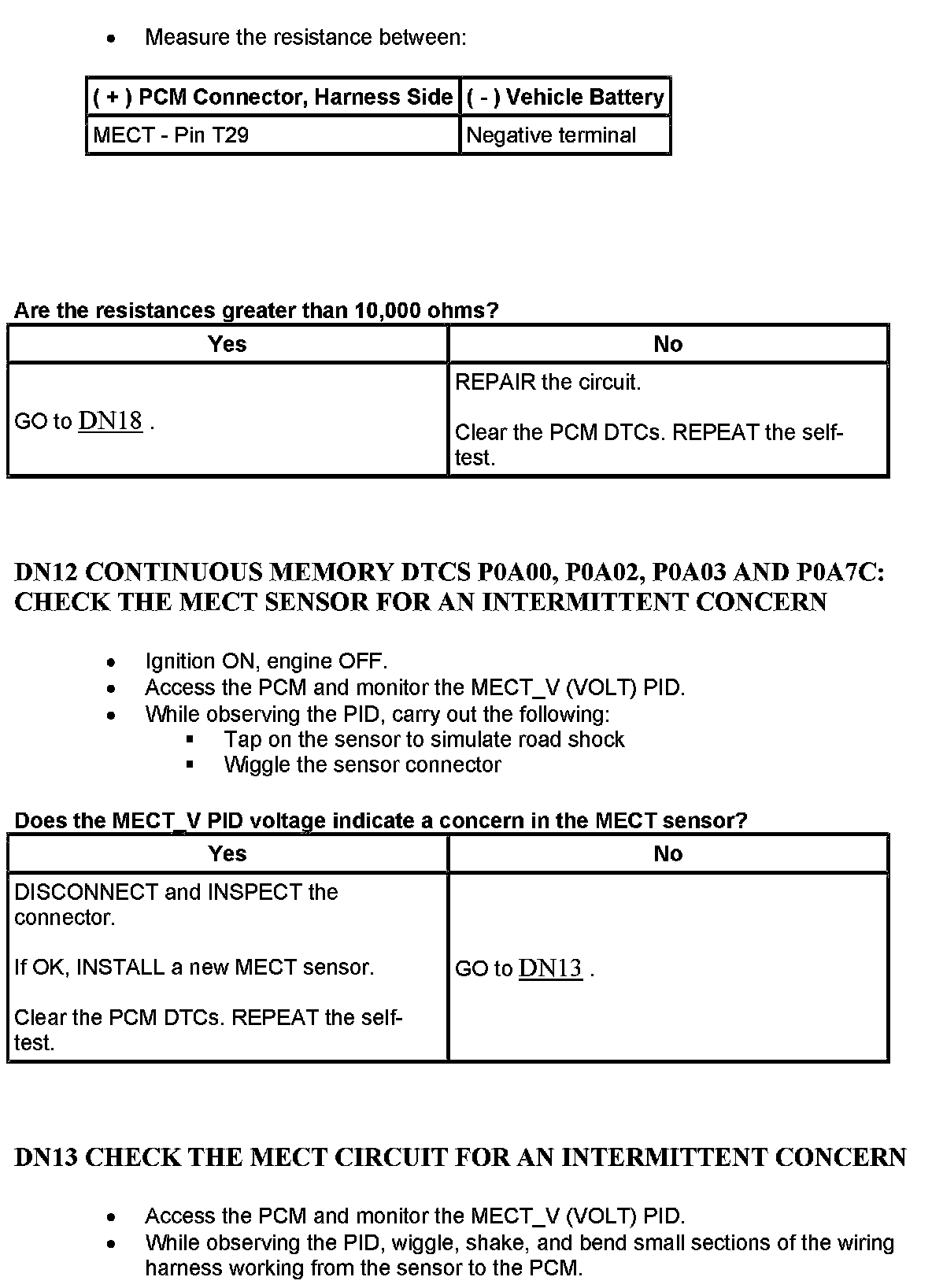

DN11-DN13:

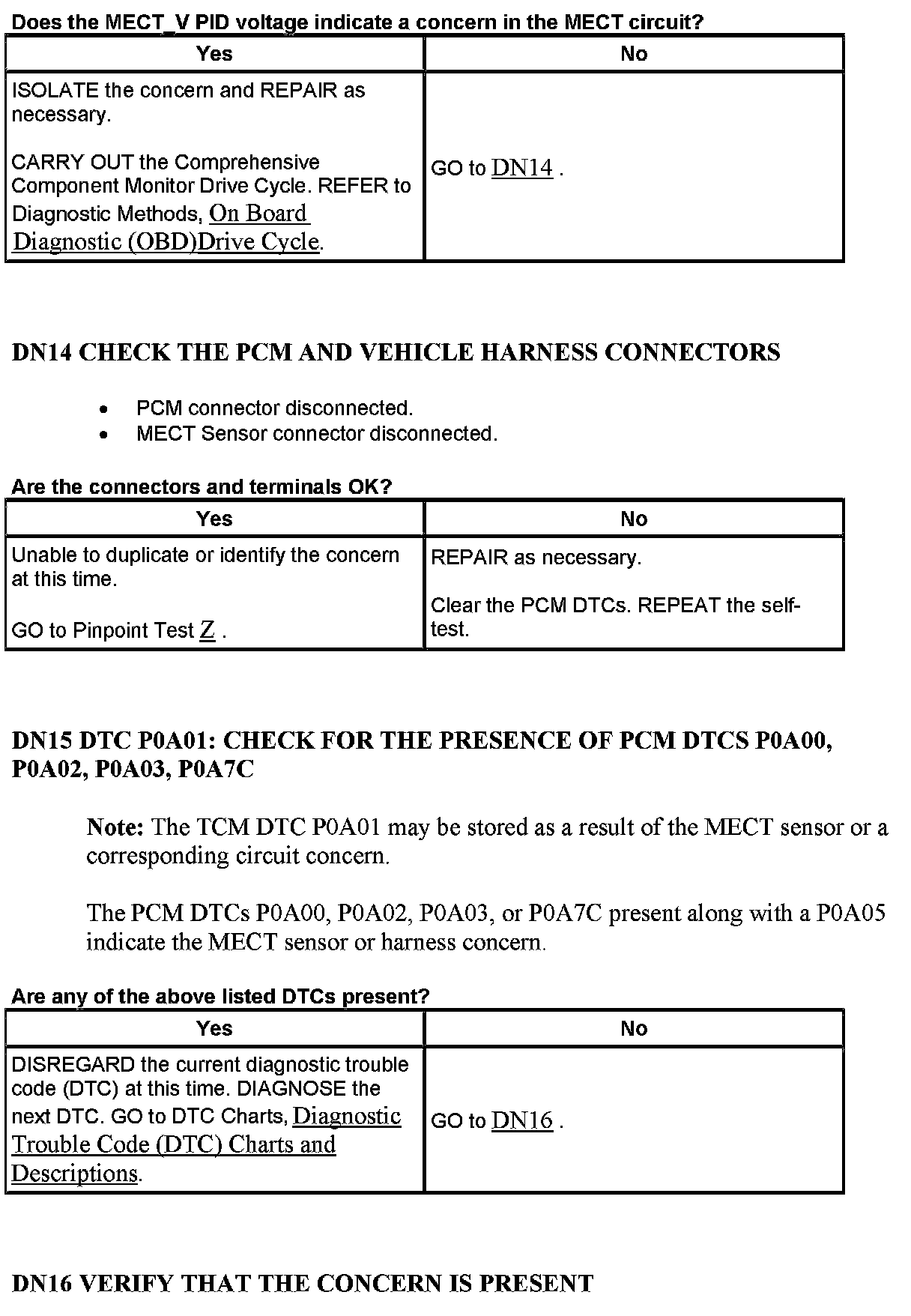

DN13-DN16:

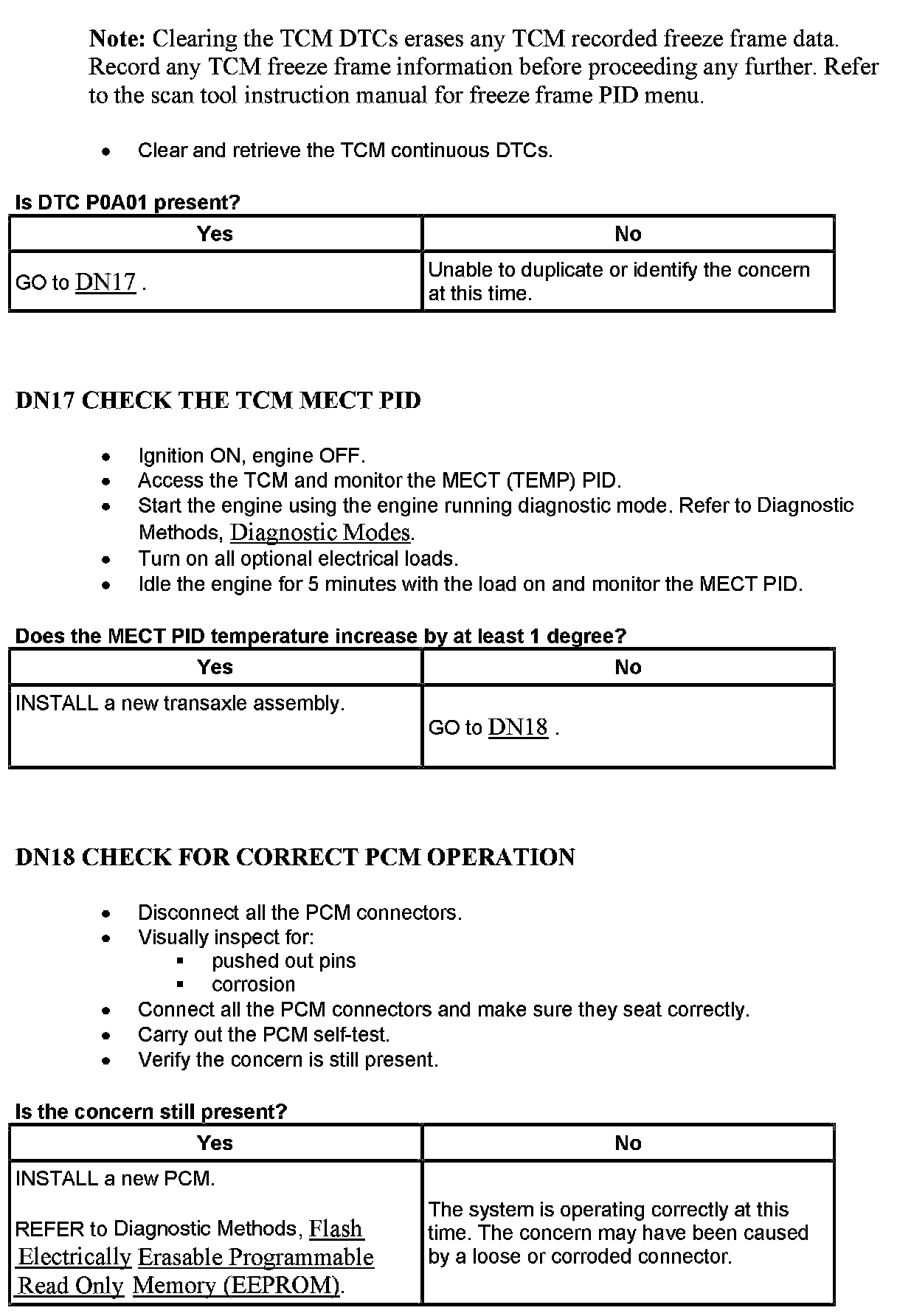

DN16-DN18:
