Passenger Safety Canopy Module Connector - C9019

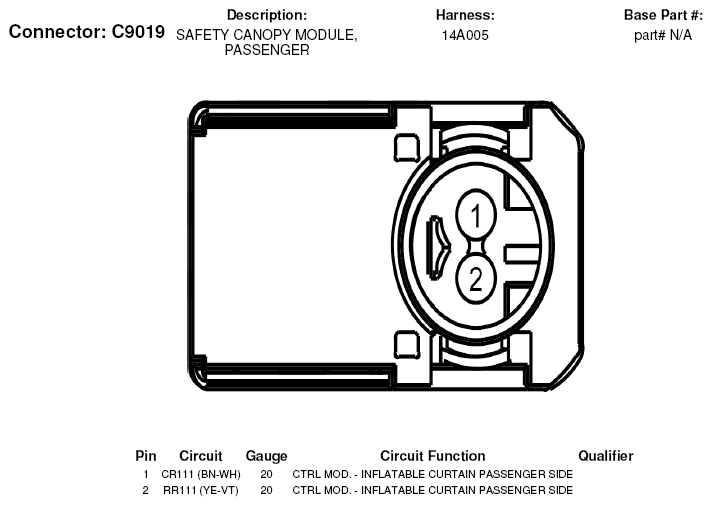

Fig 1: Passenger Safety Canopy Module Connector End View (C9019)
G07327324Courtesy of FORD MOTOR CO.
