Sunload Sensor Connector - C286

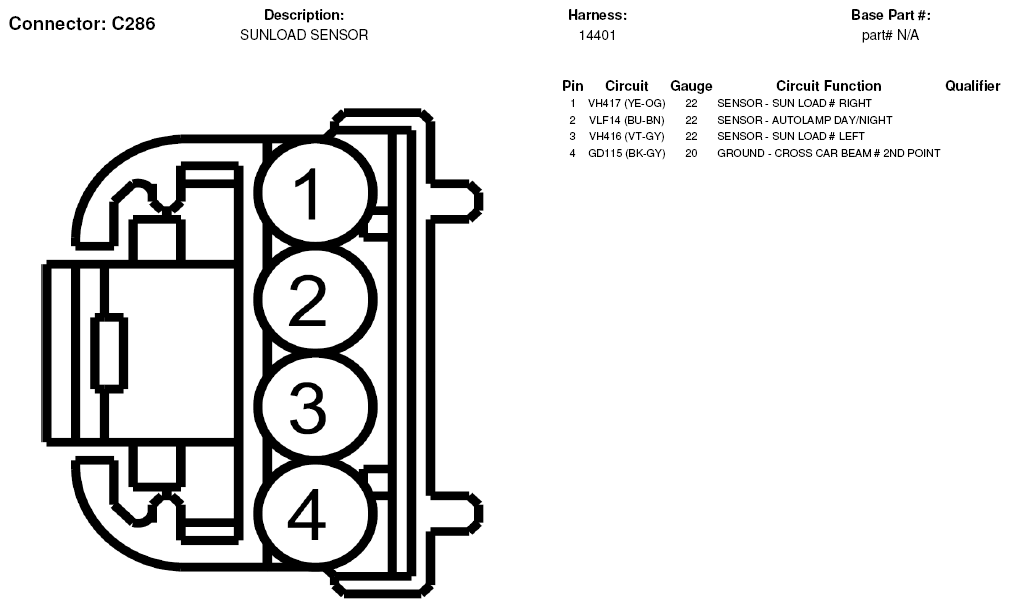

Fig 1: Sunload Sensor Connector End View (C286)
Courtesy of FORD MOTOR CO.
