Liftgate Latch/Unlatch Assembly Connector - C4339
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Liftgate Latch/Unlatch Assembly Connector - C4339

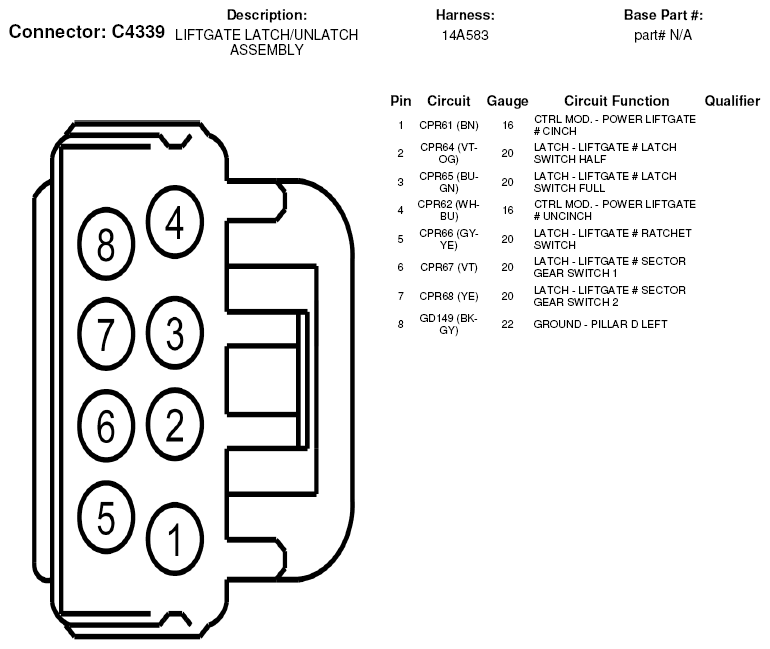

Fig 1: Liftgate Latch/Unlatch Assembly Connector End View (C4339)
Courtesy of FORD MOTOR CO.
