Left Front Seat Track Position Sensor Connector - C356

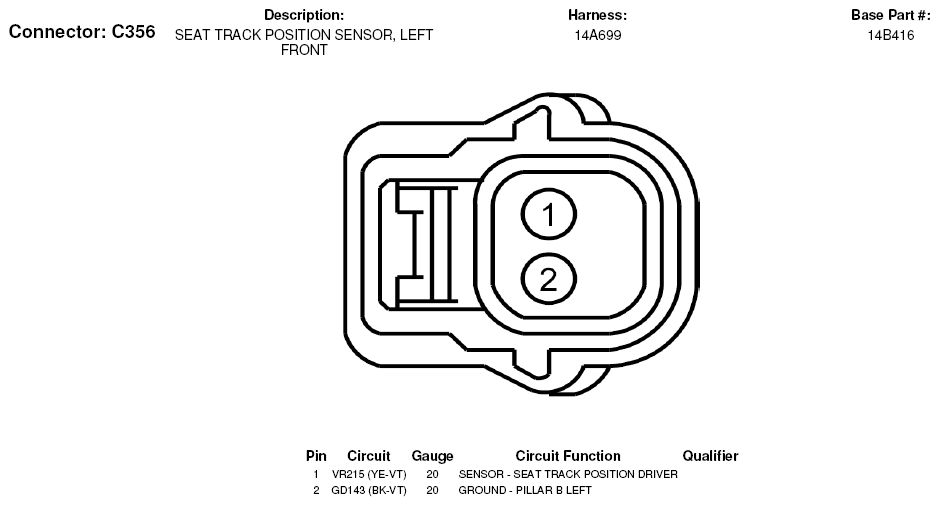

Fig 1: Left Front Seat Track Position Sensor Connector End View (C356)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
