Power Liftgate Release Switch Connector - C2269

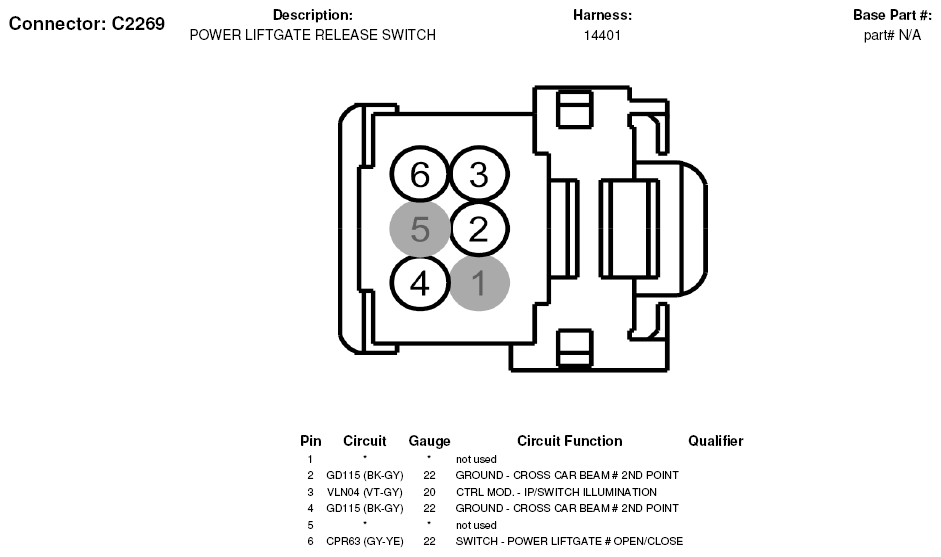

Fig 1: Power Liftgate Release Switch Connector End View (C2269)
Courtesy of FORD MOTOR CO.
