Front Controls Interface Module (FCIM) DTC Chart

Information and Entertainment System

DTC Charts

NOTE: All audio modules utilize 5-character DTCs followed by a 2-character failure-type codes. The failure-type code provides information about specific fault conditions such as opens or shorts to ground. Continuous memory DTCs have an additional 2-character DTC status code suffix to assist in determining DTC history.

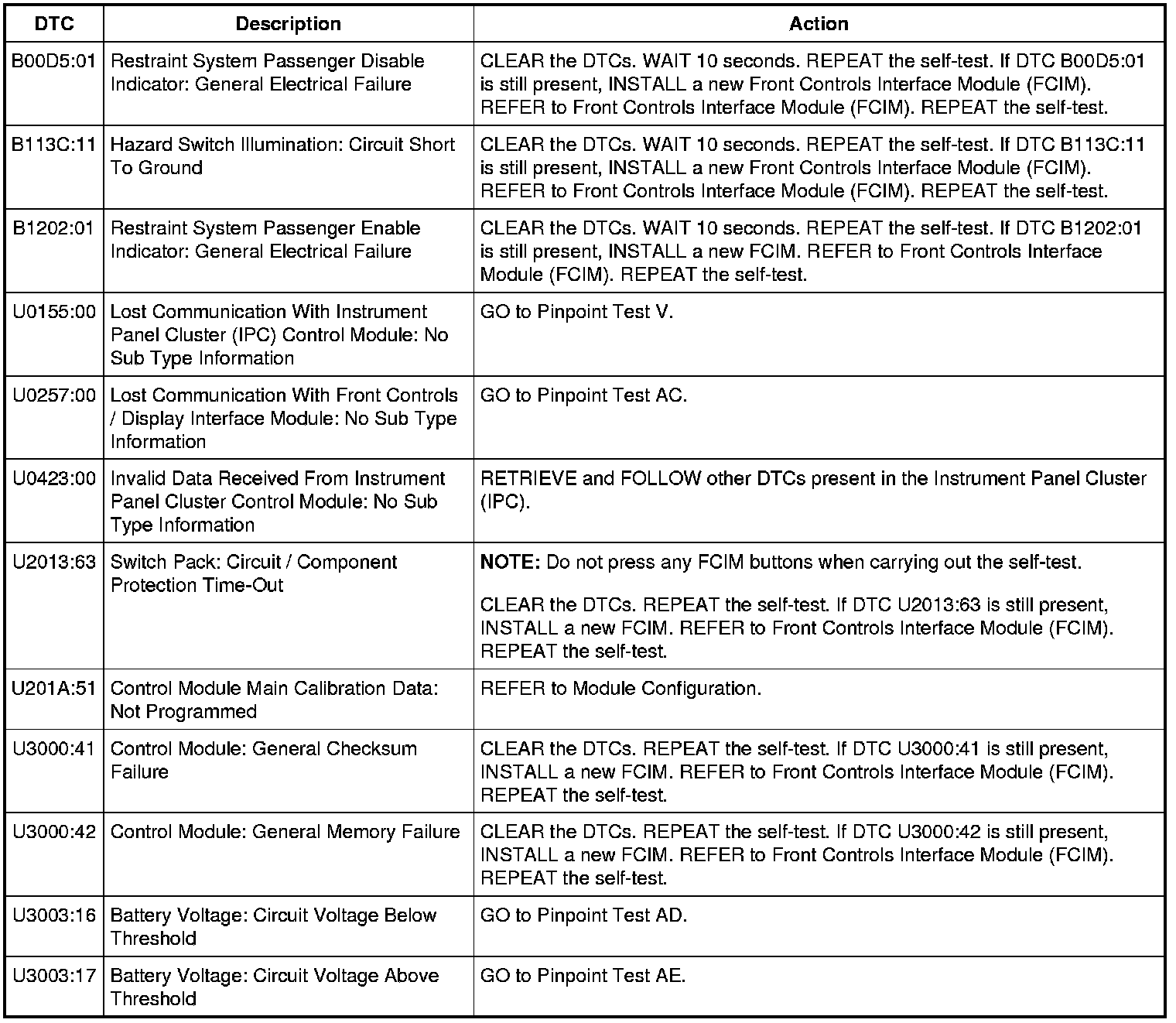

Front Controls Interface Module (FCIM) DTC Chart
