Wheel Speed Sensor - Front

Wheel Speed Sensor - Front

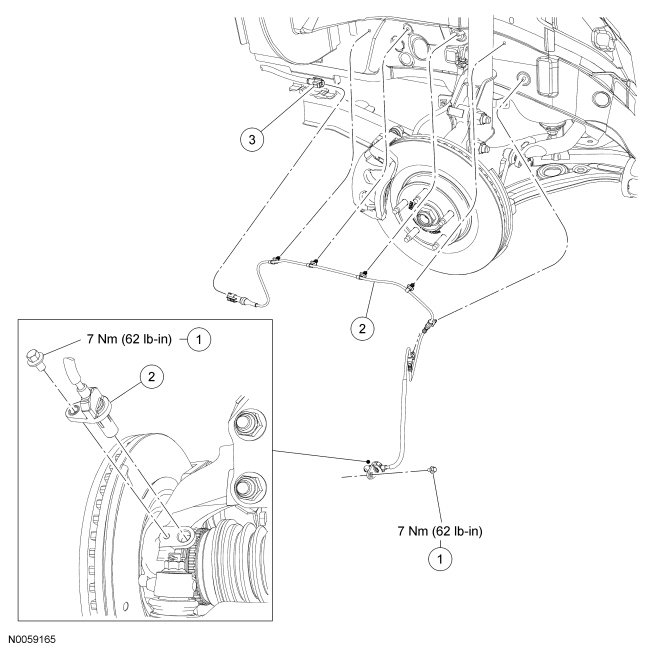

Removal and Installation

1. Remove the wheel and tire.

2. Remove the retainers and position the fender splash shield aside.

3. Disconnect the wheel speed sensor electrical connector.

4. Disconnect the 6 pushpin fasteners.

5. Remove the front wheel speed sensor bolt and the wheel speed sensor.
- To install, tighten to 7 Nm (62 lb-in).


6. NOTICE: The wheel speed sensor harness must be routed as shown or damage to the harness during vehicle jounce and rebound can occur.

To install, reverse the removal procedure.
