System Specifications

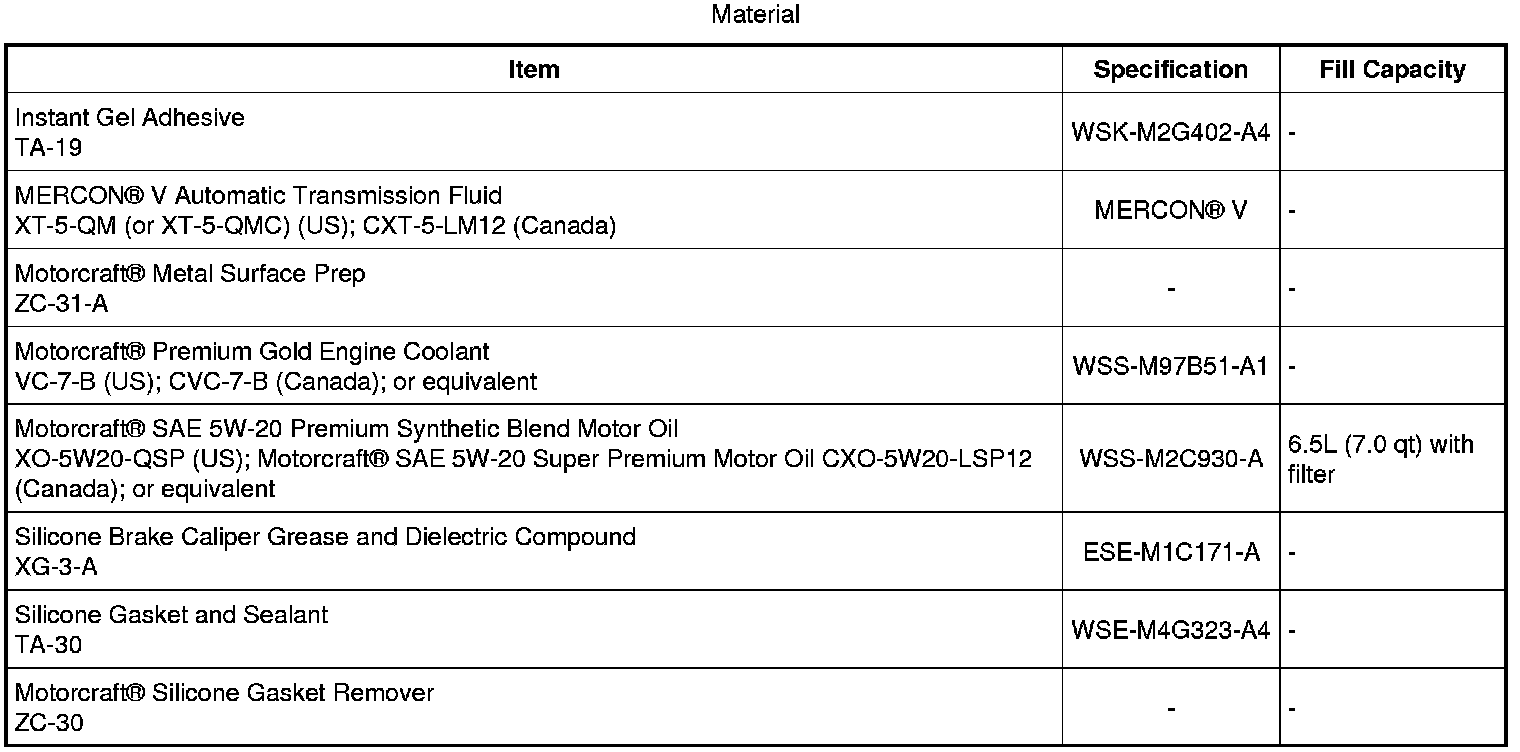

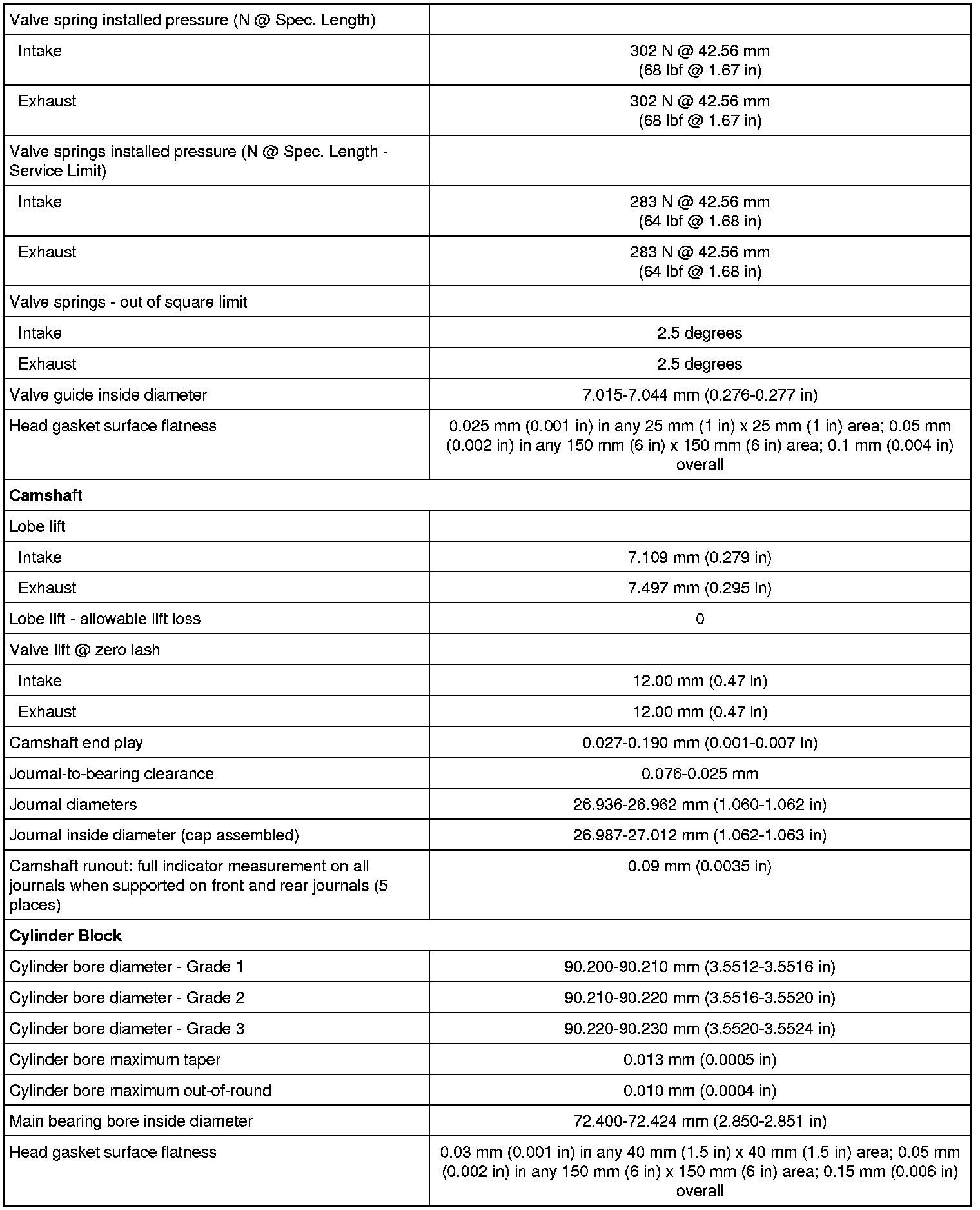

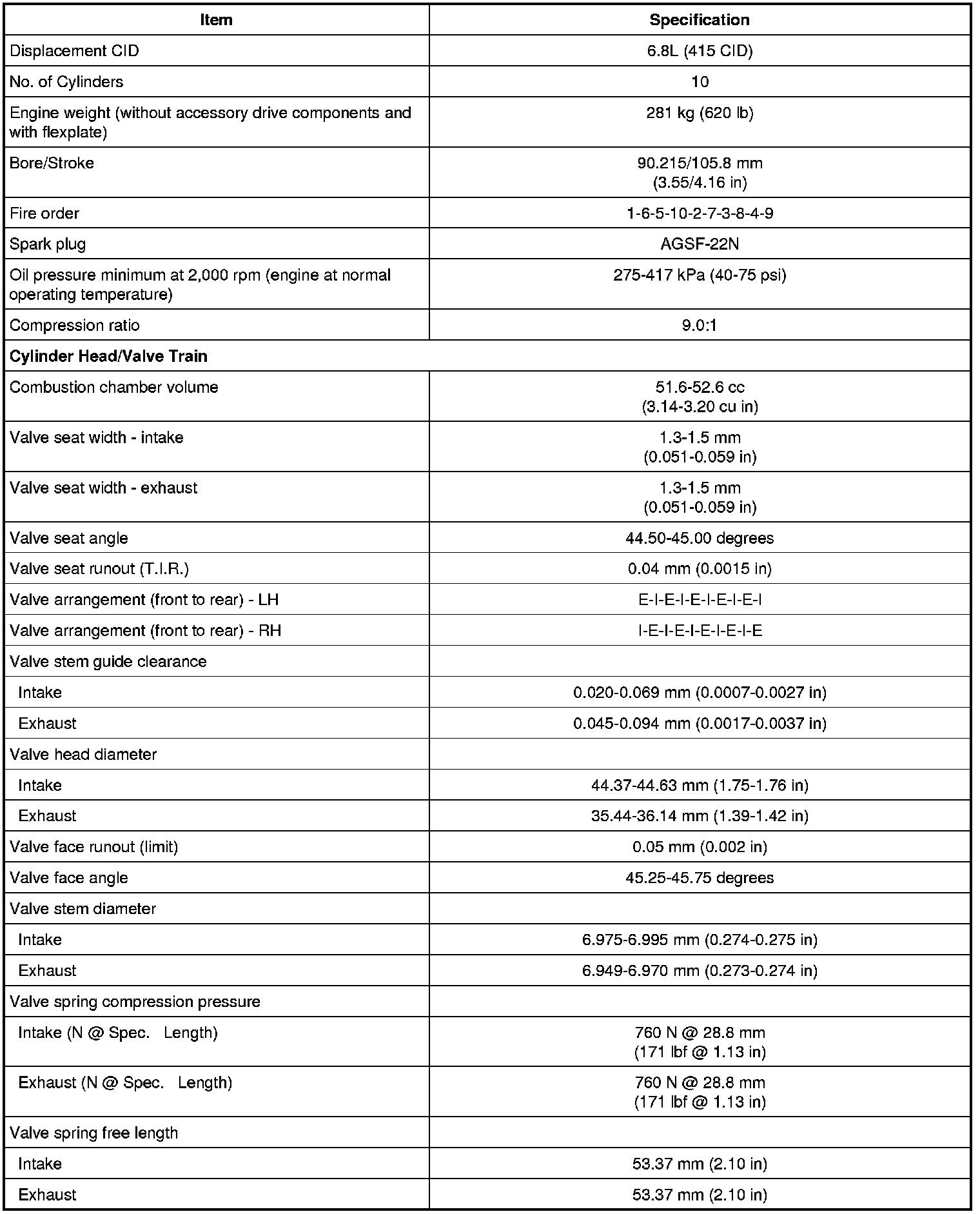

General Specifications

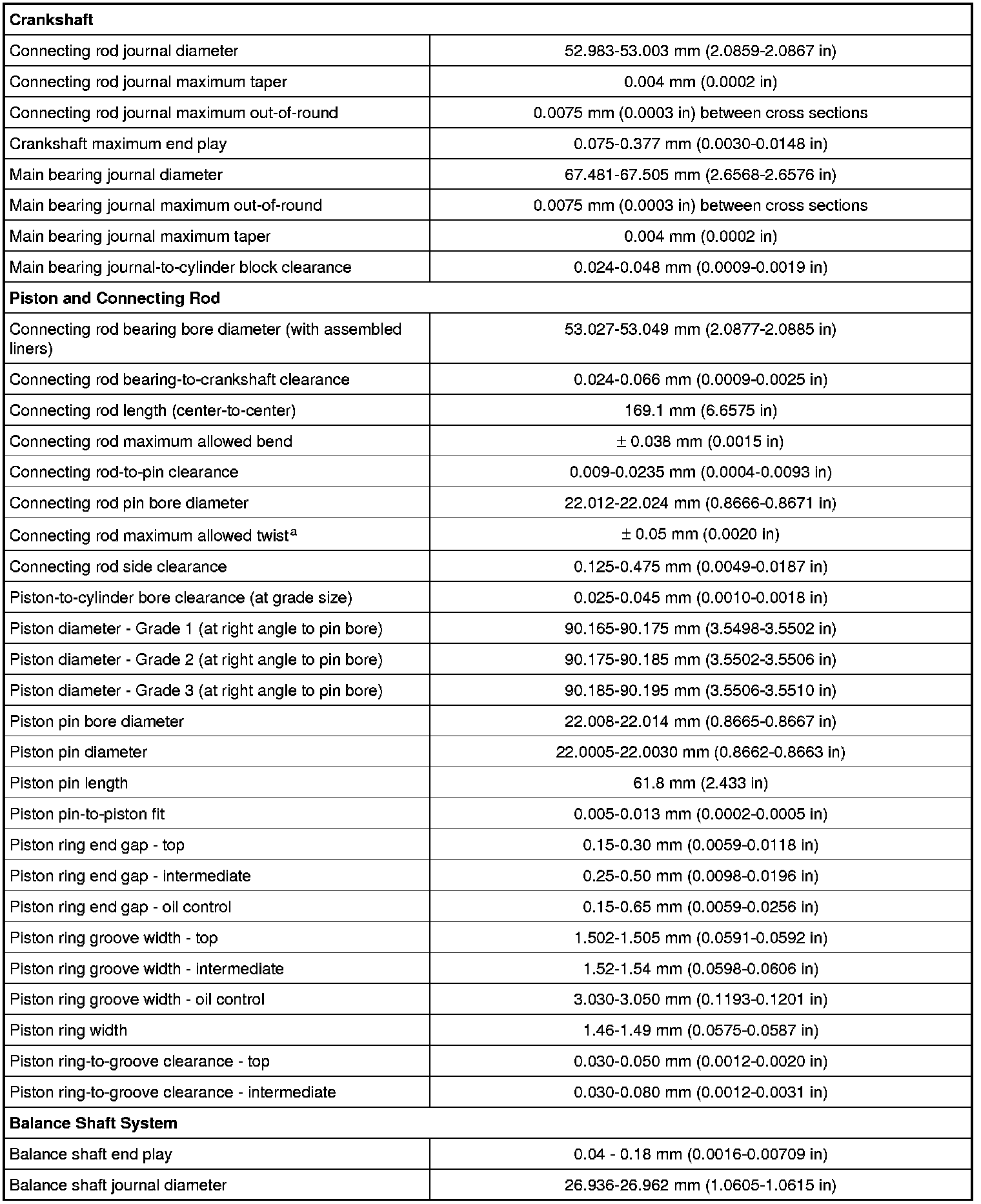

a The pin bore and crank bearing bore must be parallel and in the same vertical plane within the specified total difference when measured at the ends of a 203 mm bar, 105.5 mm on each side of rod centerline.

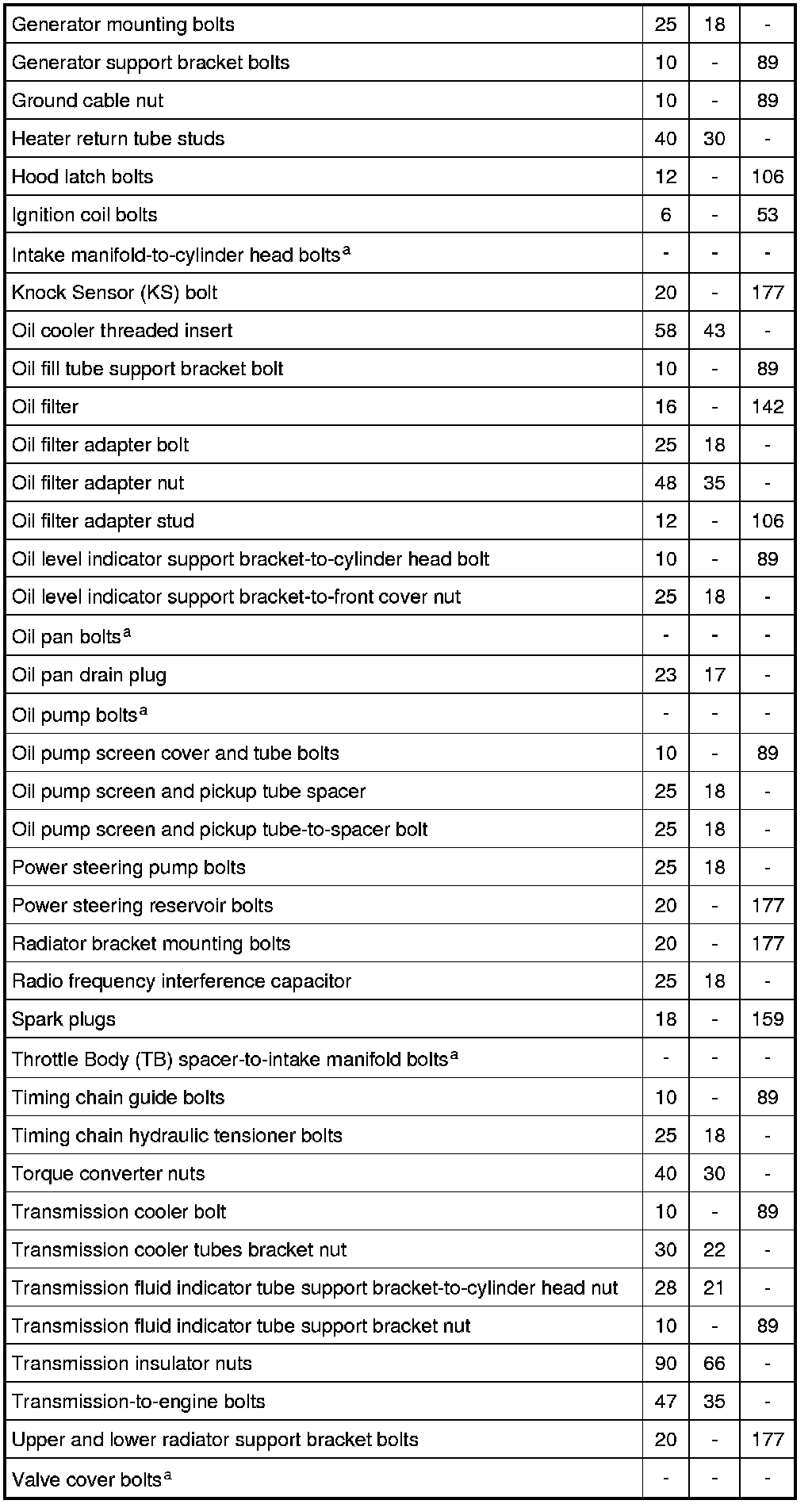

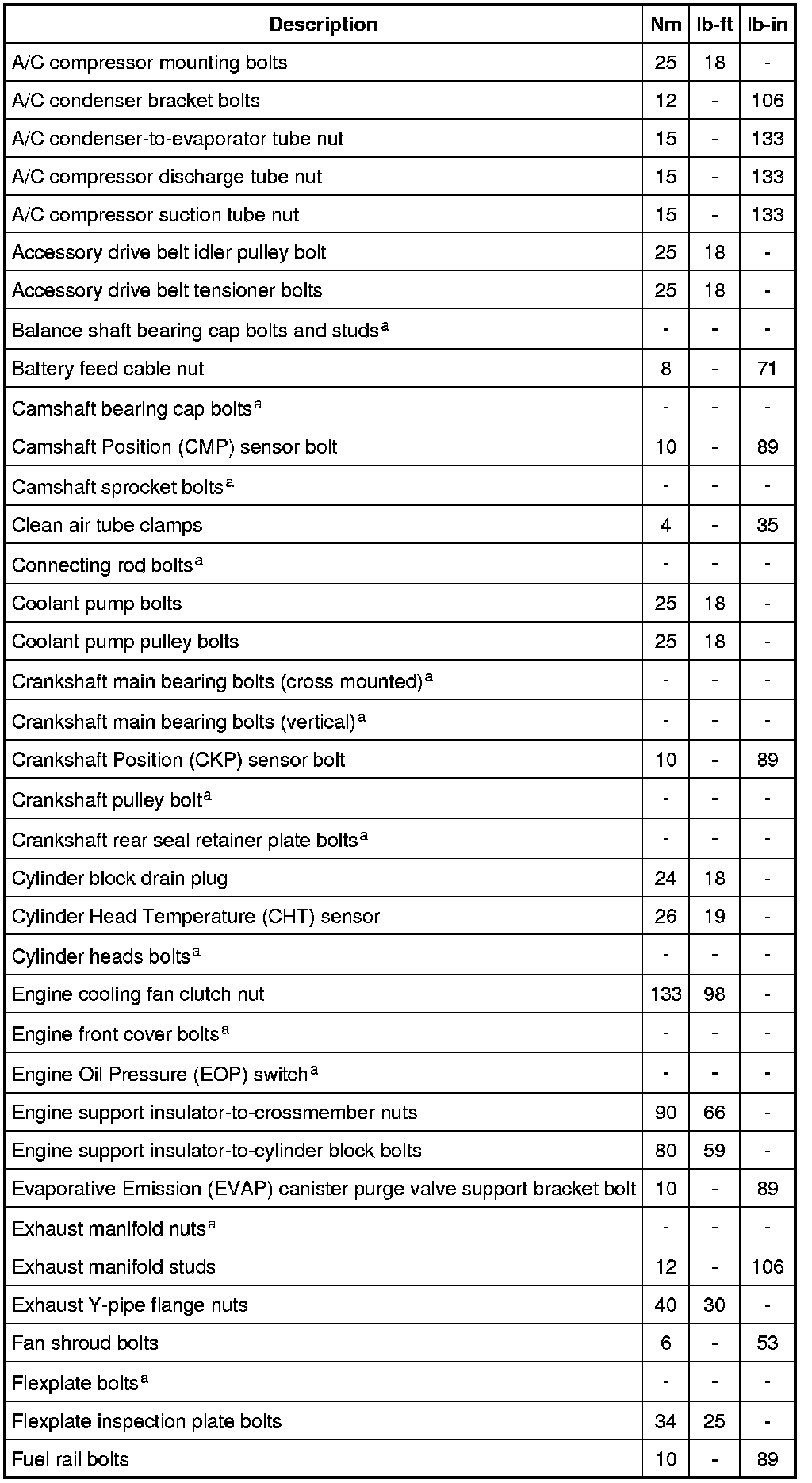

Torque Specifications

a Refer to the procedure.
