Home >> Ford >> 2011 >> E 350 V8-5.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Refrigerant Pressure Sensor / Switch >> Diagrams
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

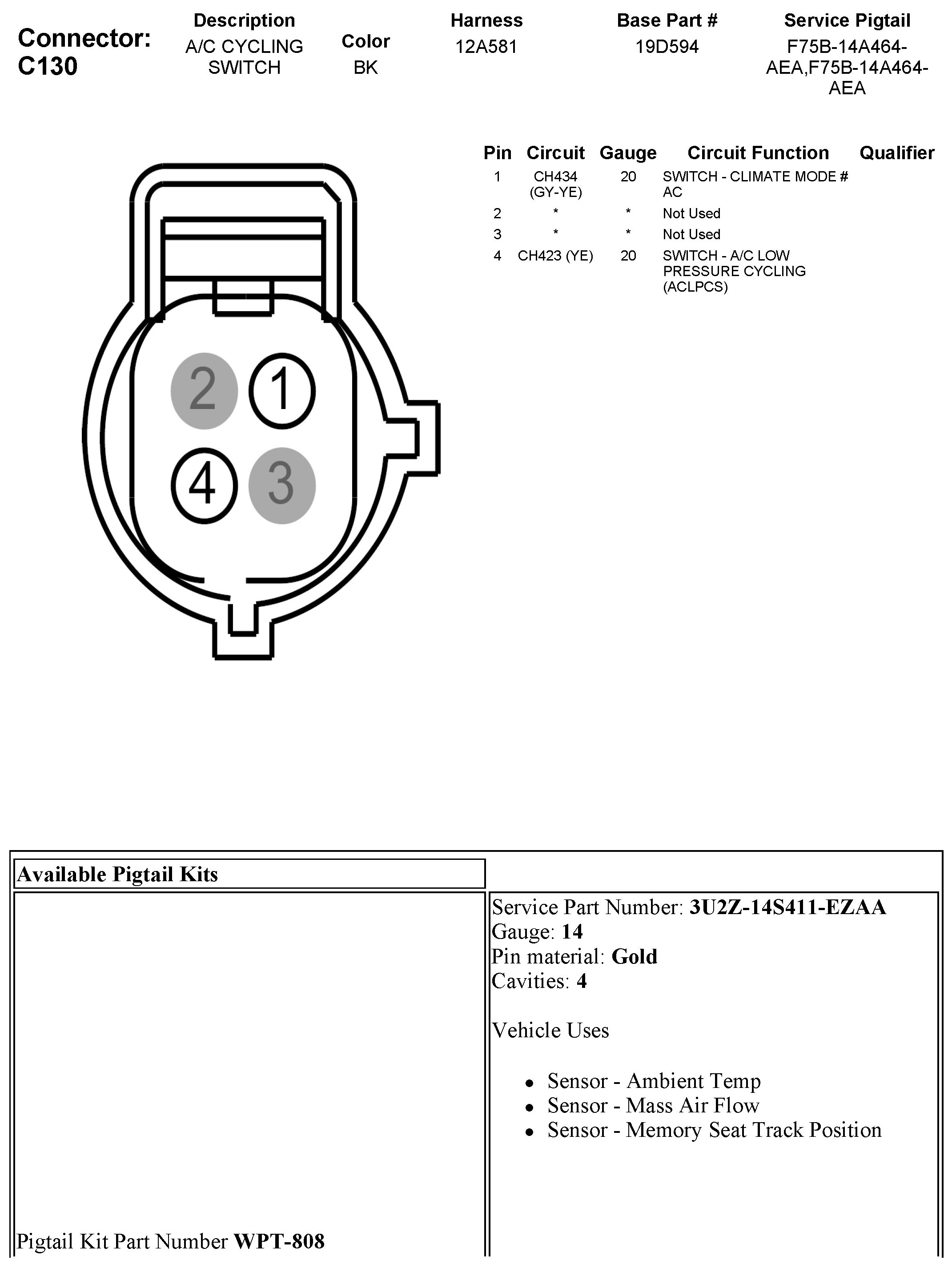

Refrigerant Pressure Sensor / Switch: Diagrams
