Exhaust Manifold

Install the 7 new exhaust manifold studs.
Tighten to 17 Nm (150 lb-in).

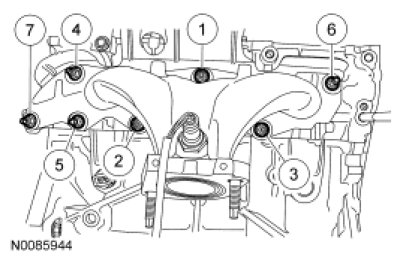

Install a new exhaust manifold gasket, the exhaust manifold and 7 new nuts in the sequence shown in 2 stages:
Stage 1: Tighten to 48 Nm (35 lb-ft).
Stage 1: Tighten to 48 Nm (35 lb-ft).






Install the exhaust manifold heat shield and the 4 bolts.
Tighten to 10 Nm (89 lb-in).
