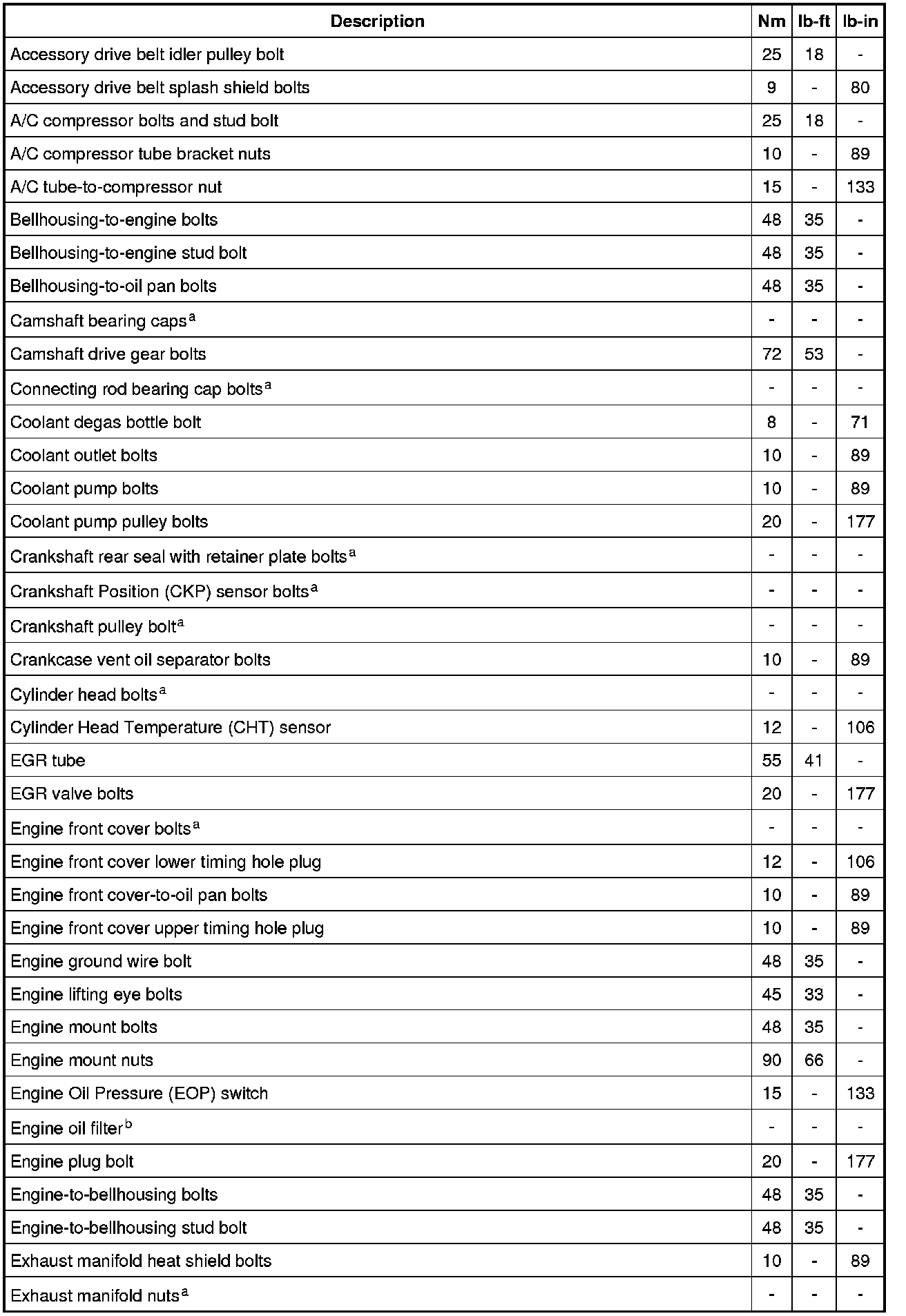

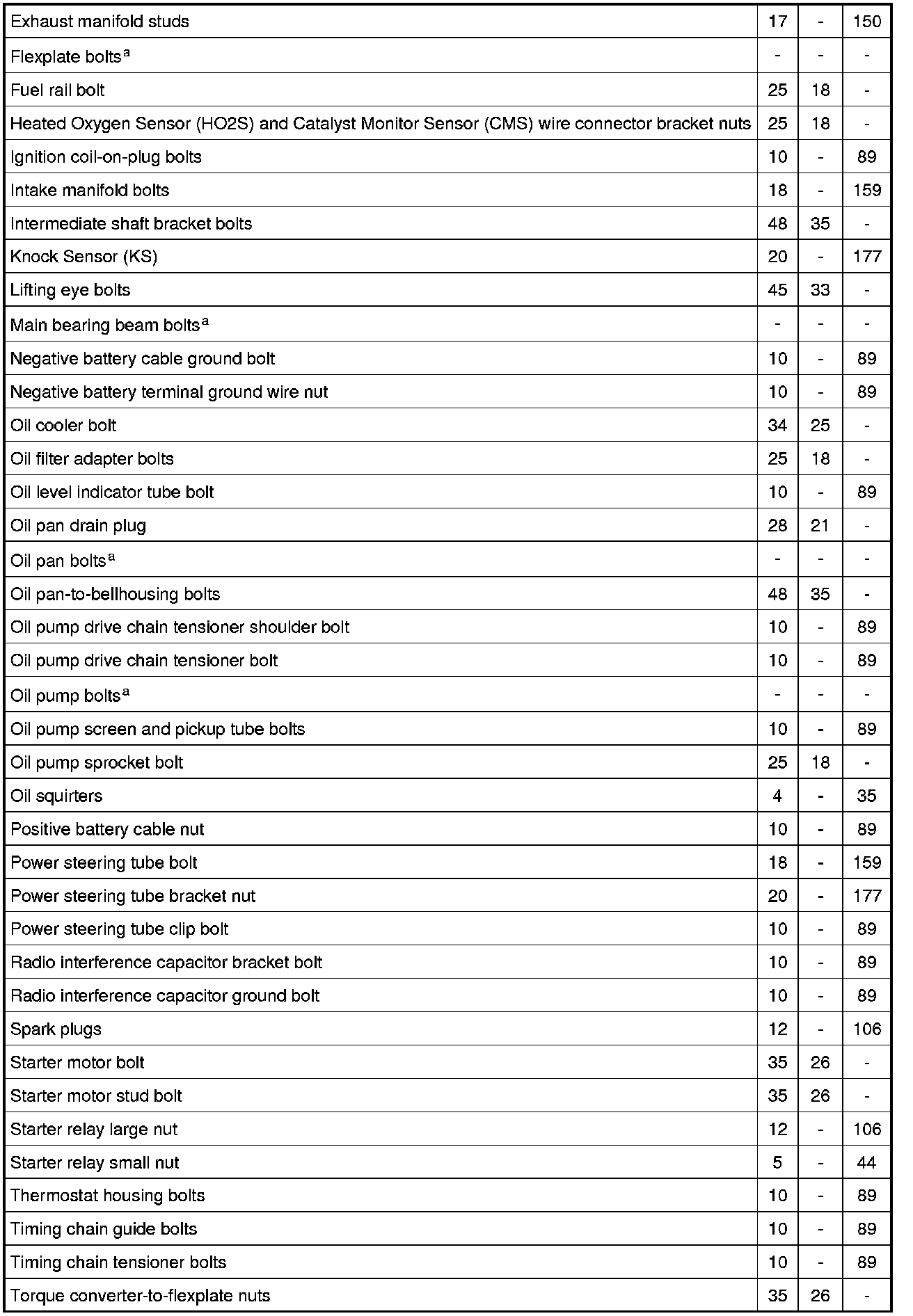

Torque Specifications




Torque Specifications













a See procedure for specification.
b Tighten the oil filter three-fourths turn after the oil filter gasket makes contact with the oil filter adapter.
