Test KN: Variable Speed Electric Cooling Fan

PINPOINT TEST KN: VARIABLE SPEED ELECTRIC COOLING FAN

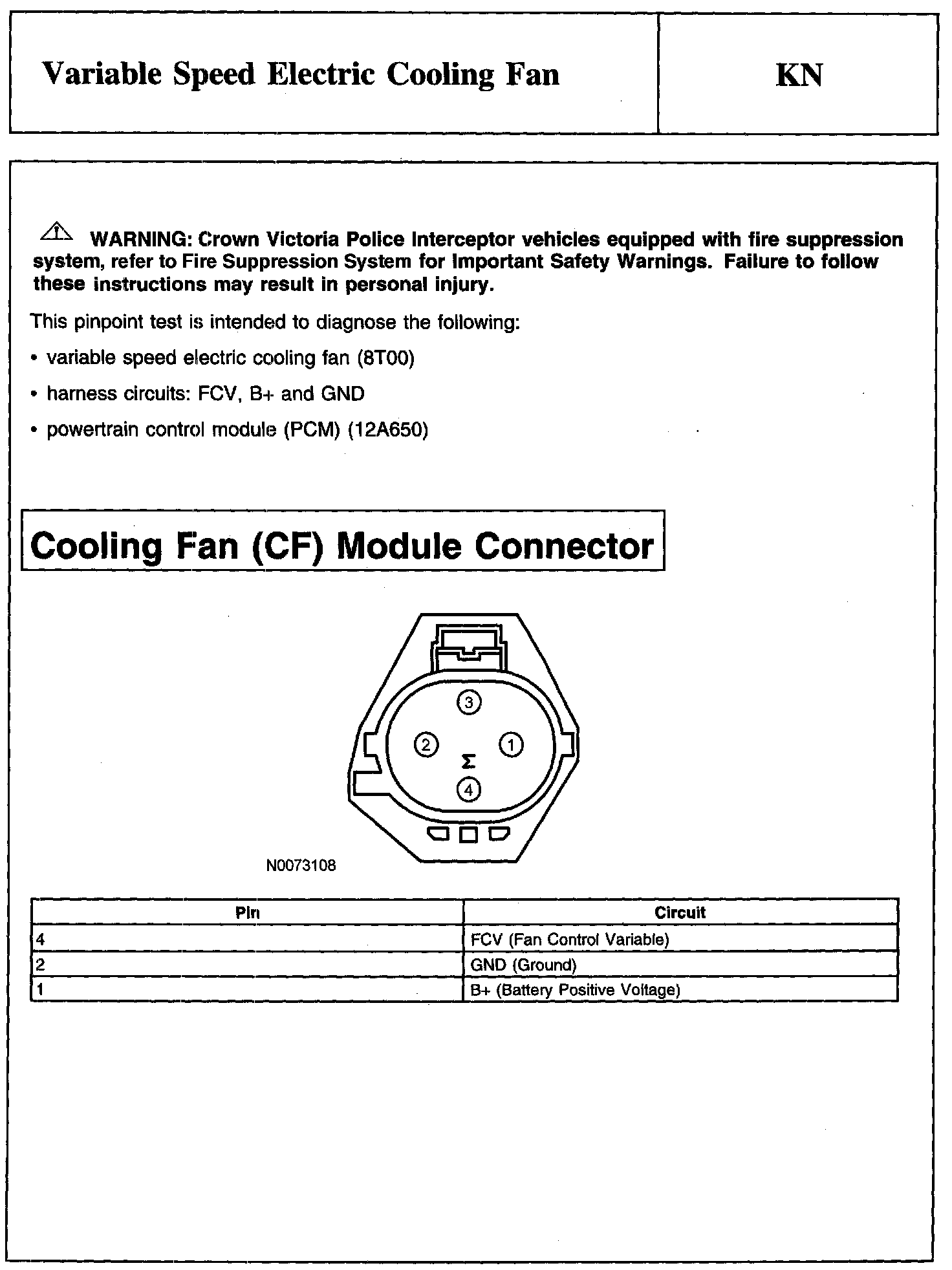

Warning And Cooling Fan (CF) Module Connector:

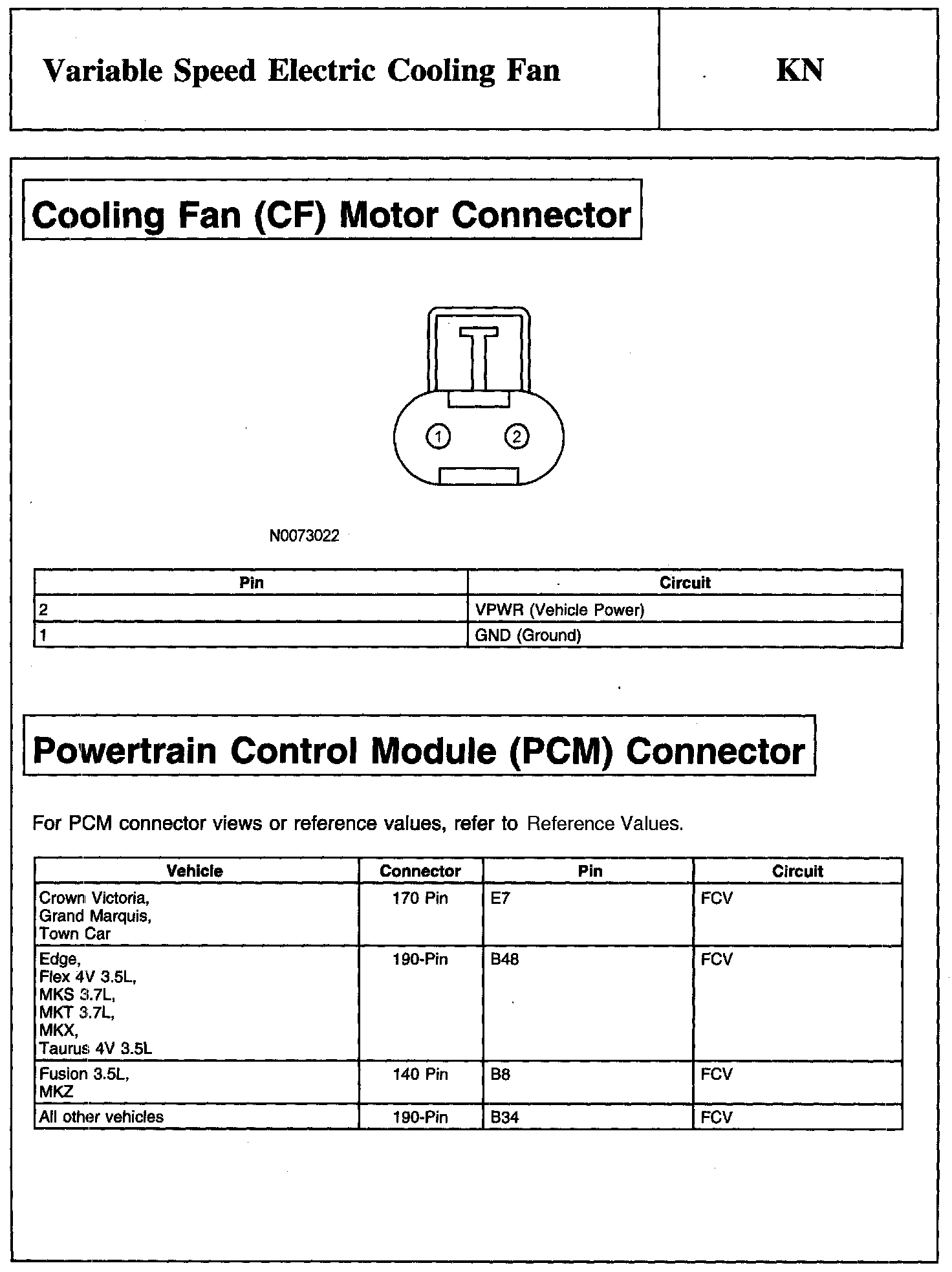

Cooling Fan (CF) Motor Connector And Powertrain Control Module (PCM) Connector:

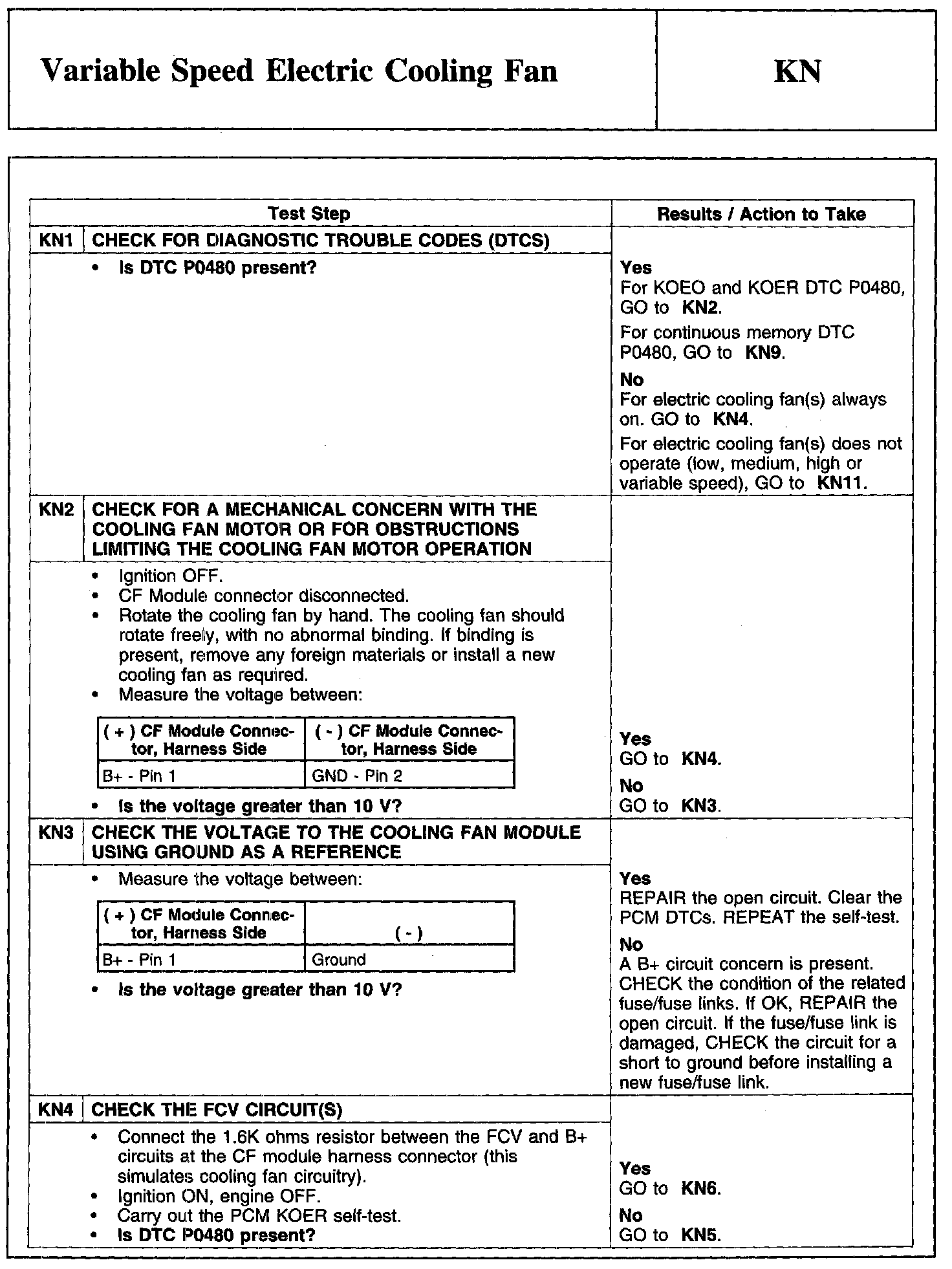

KN1-KN4:

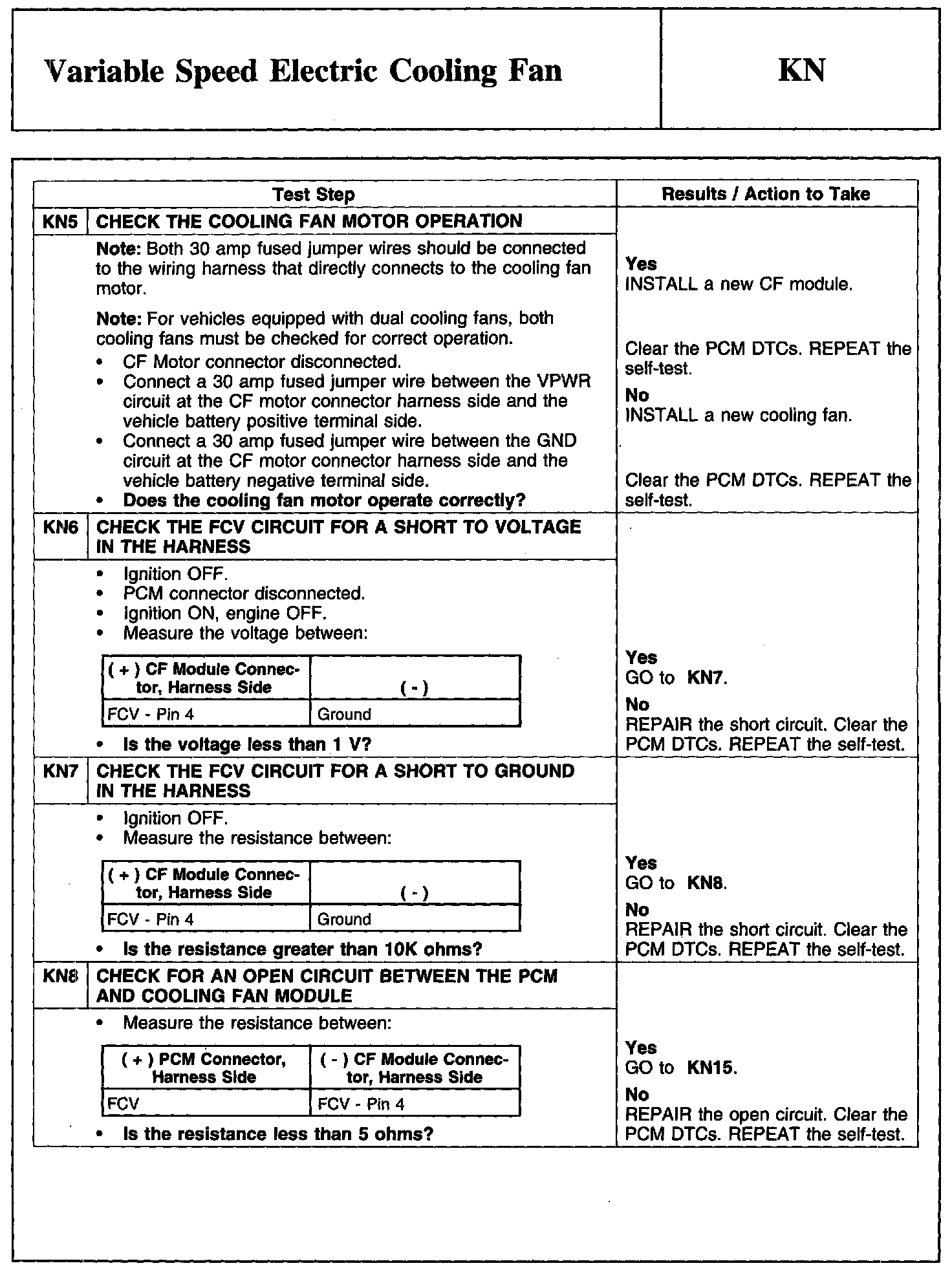

KN5-KN8:

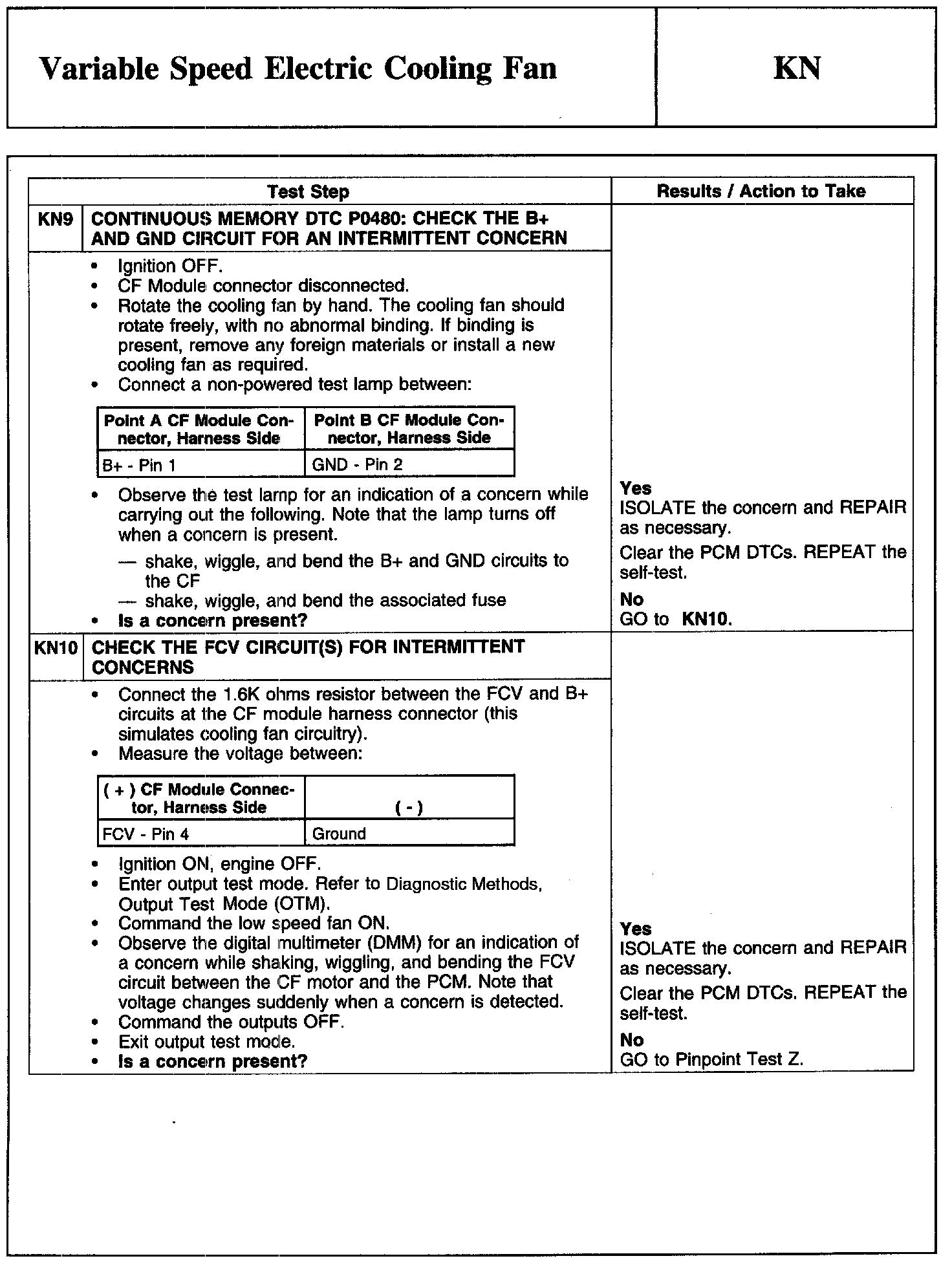

KN9-KN10:

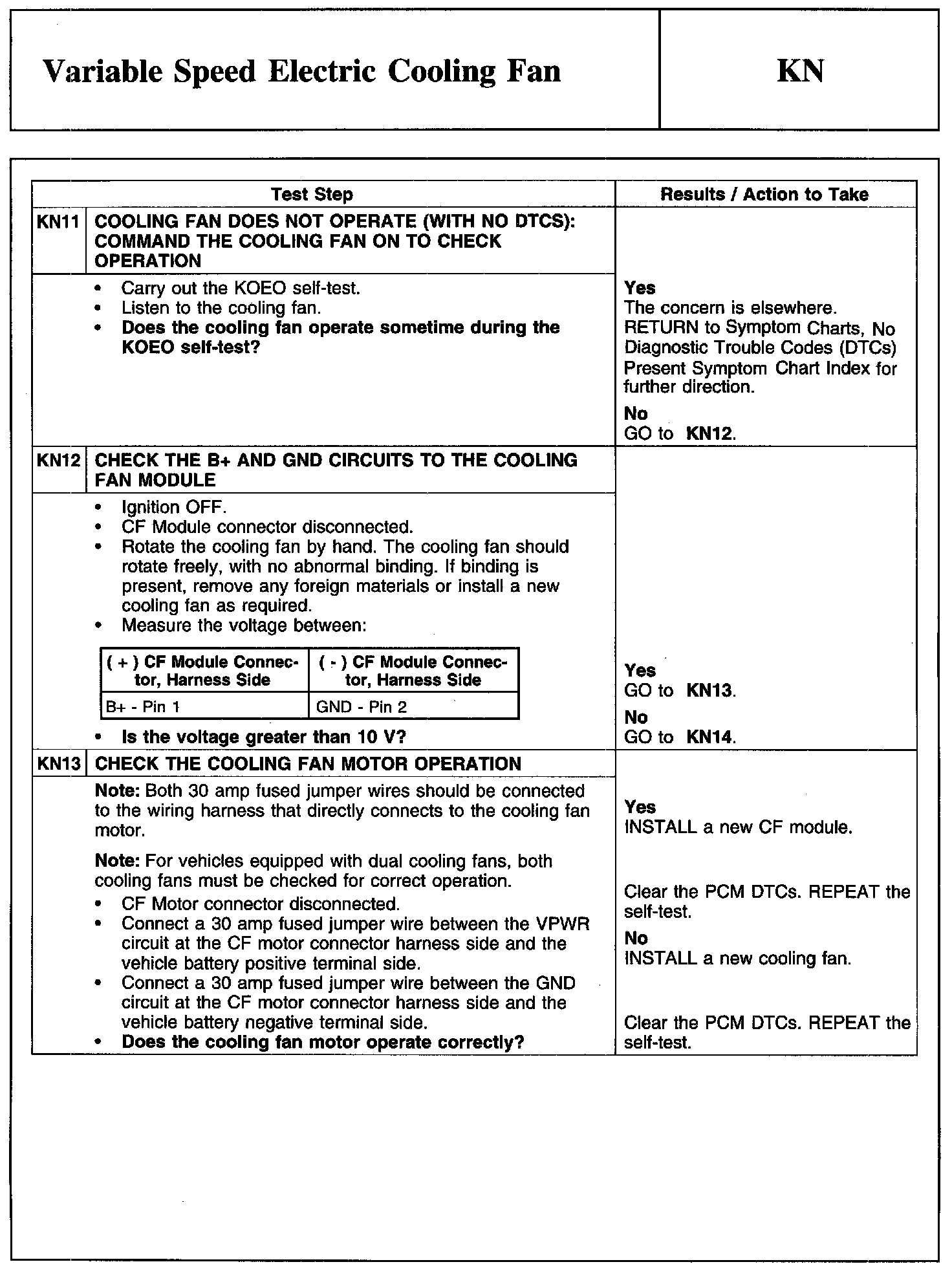

KN11-KN13:

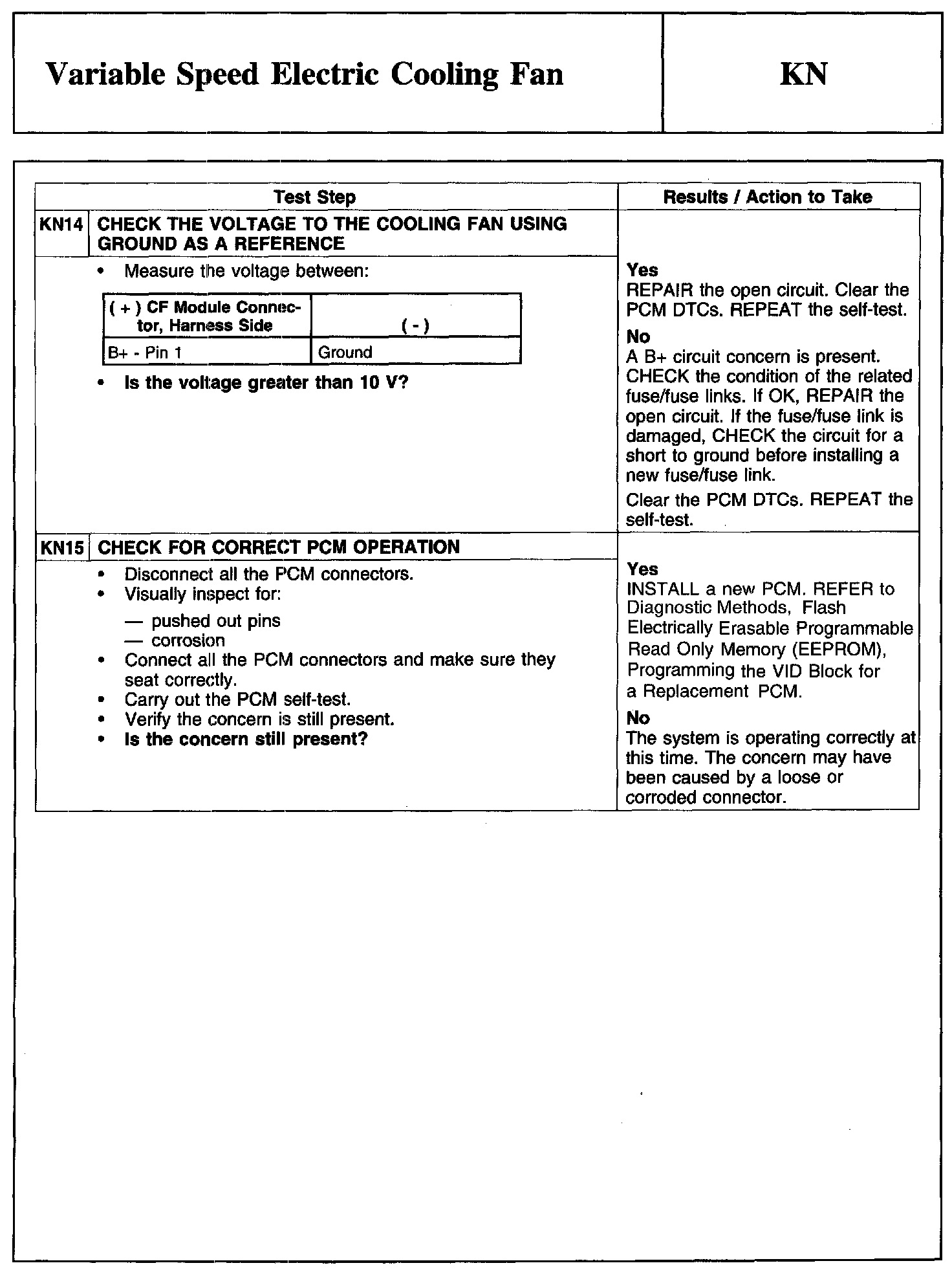

KN14-KN15:
