Test DW: Heated Oxygen Sensor (HO2S)

PINPOINT TEST DW: HEATED OXYGEN SENSOR (HO2S)

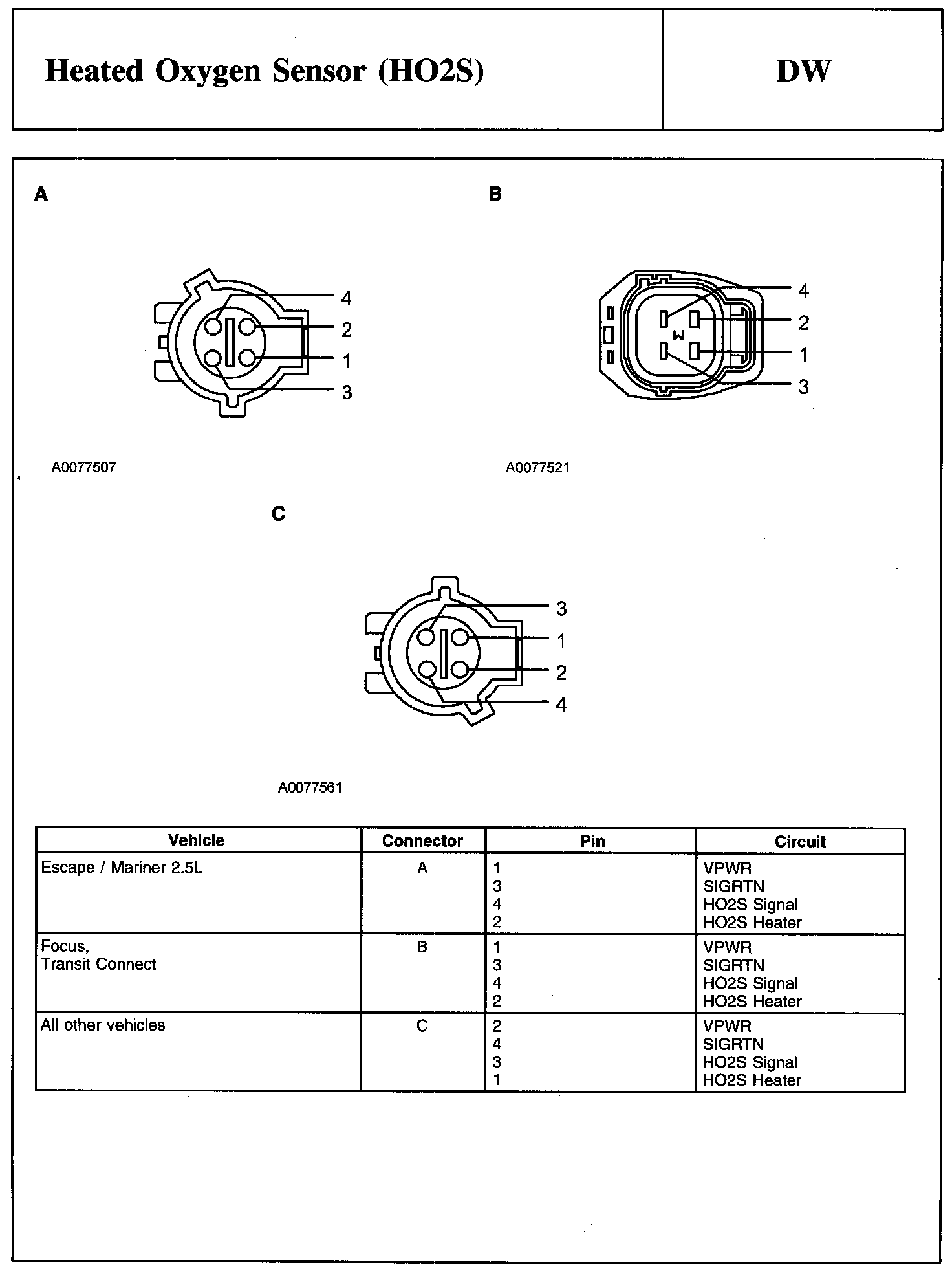

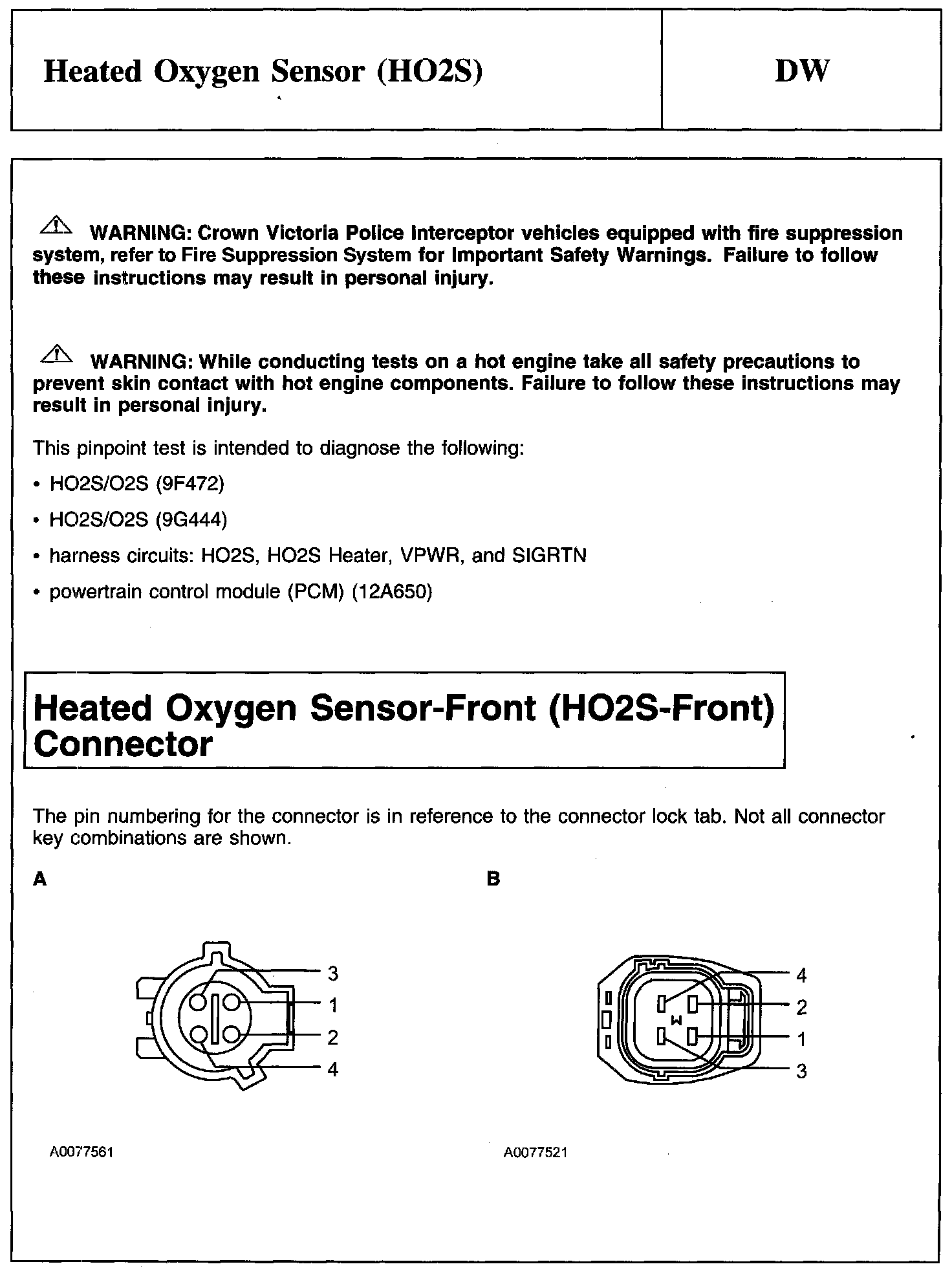

Warning And Heated Oxygen Sensor-Front (HO2S-Front) Connector:

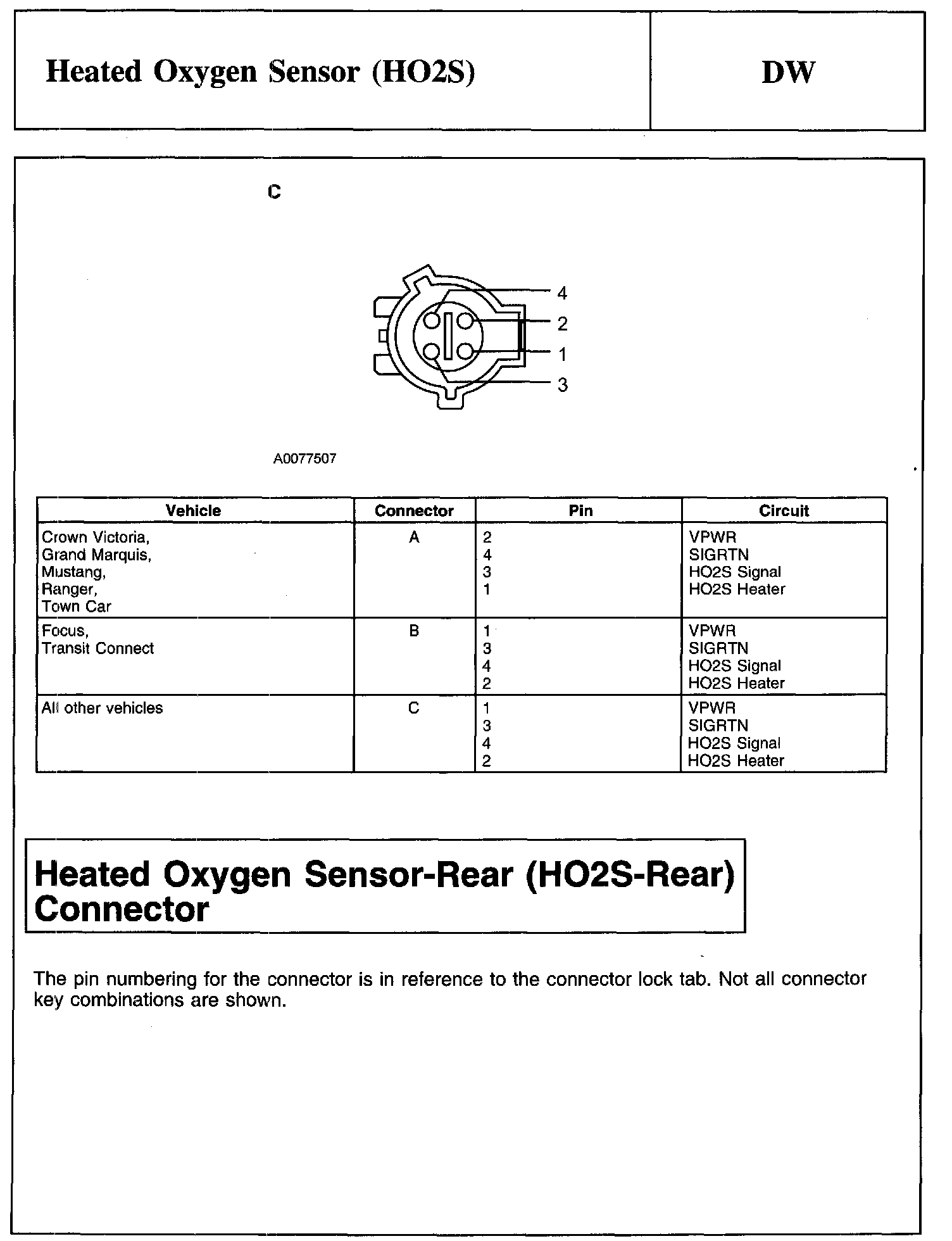

Heated Oxygen Sensor-Front (HO2S-Front) Connector And Heated Oxygen Sensor-Rear (HO2S-Rear) Connector:

Heated Oxygen Sensor-Rear (HO2S-Rear) Connector:

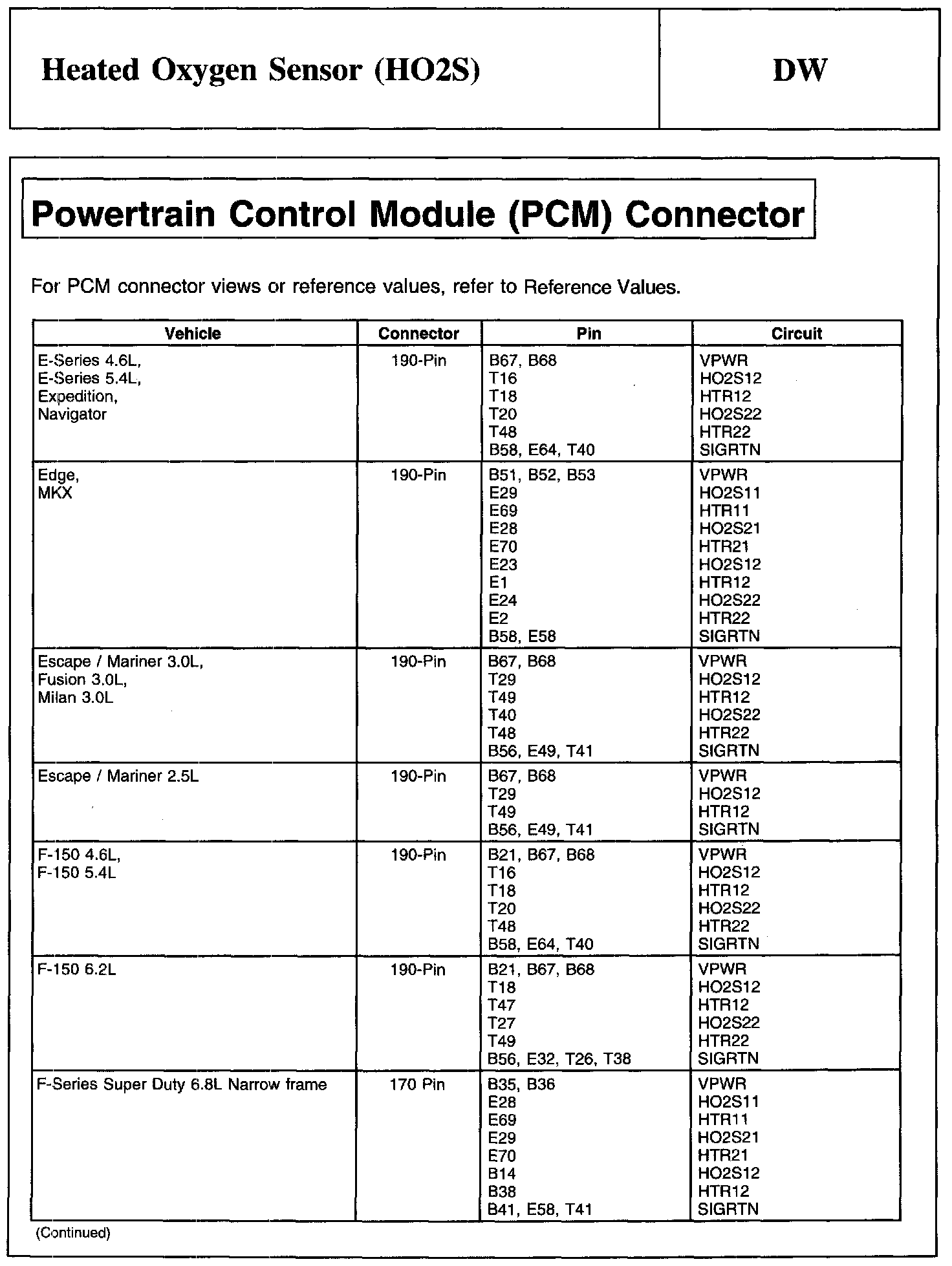

Powertrain Control Module (PCM) Connector:

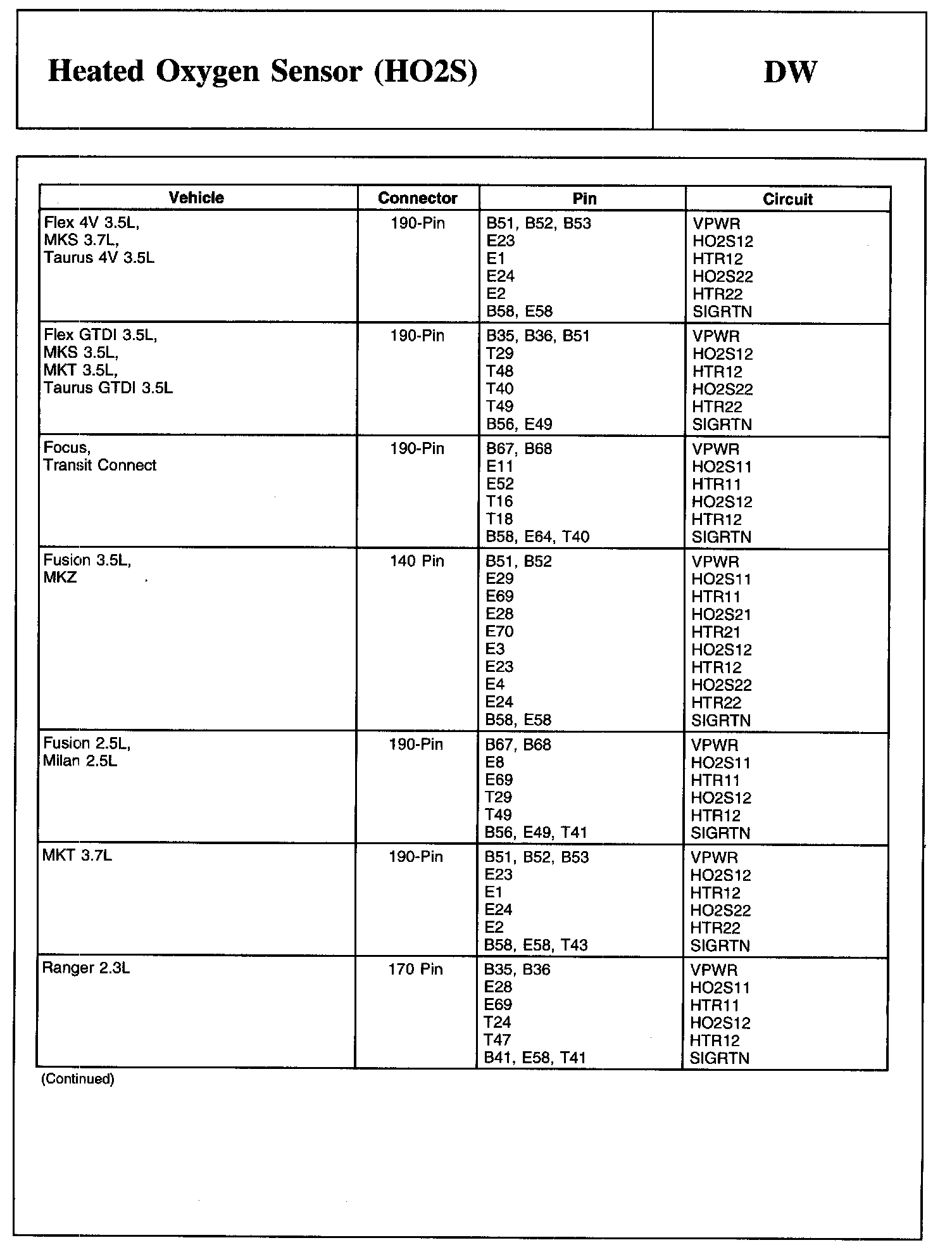

Powertrain Control Module (PCM) Connector:

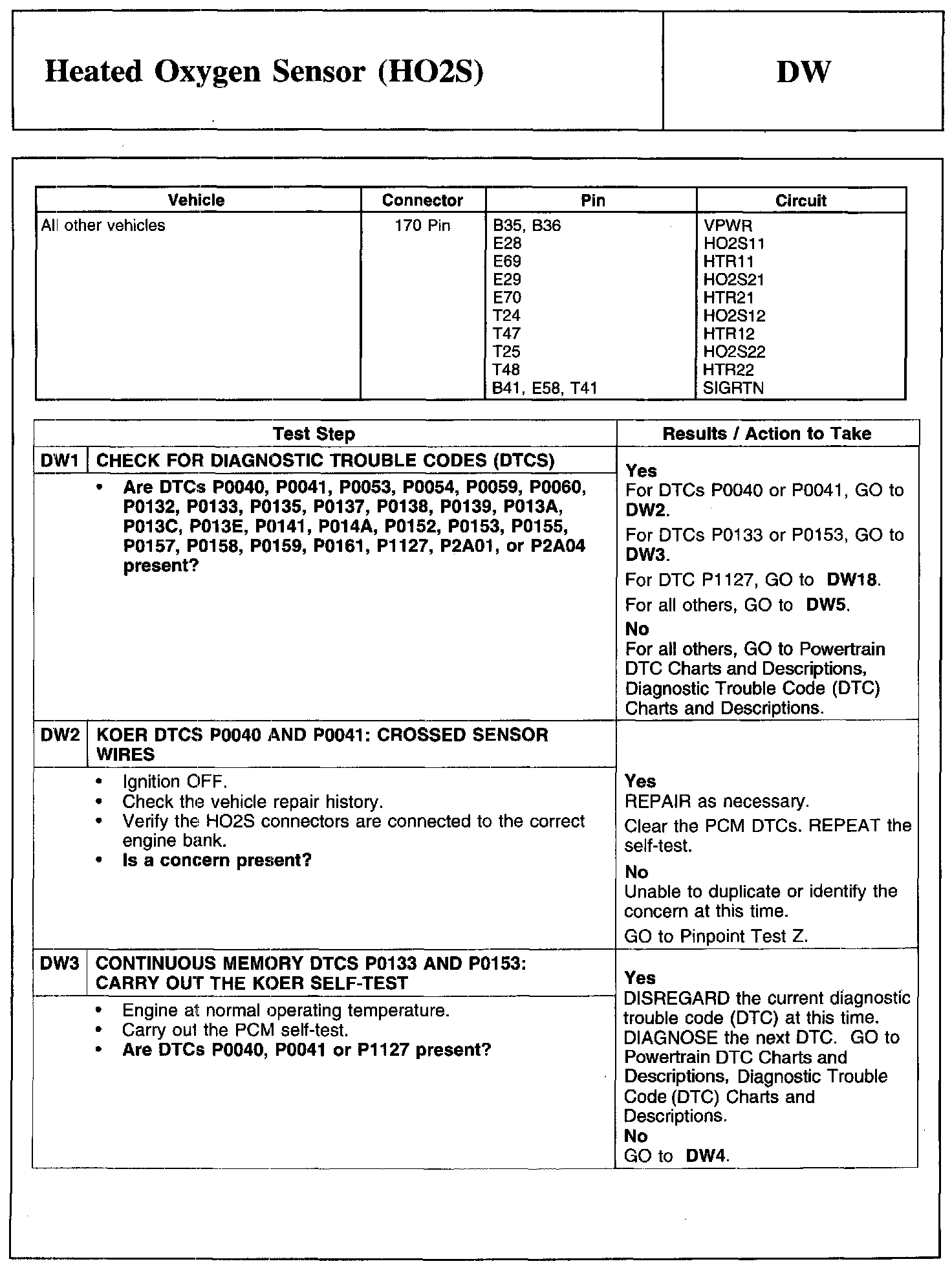

DW1-DW3:

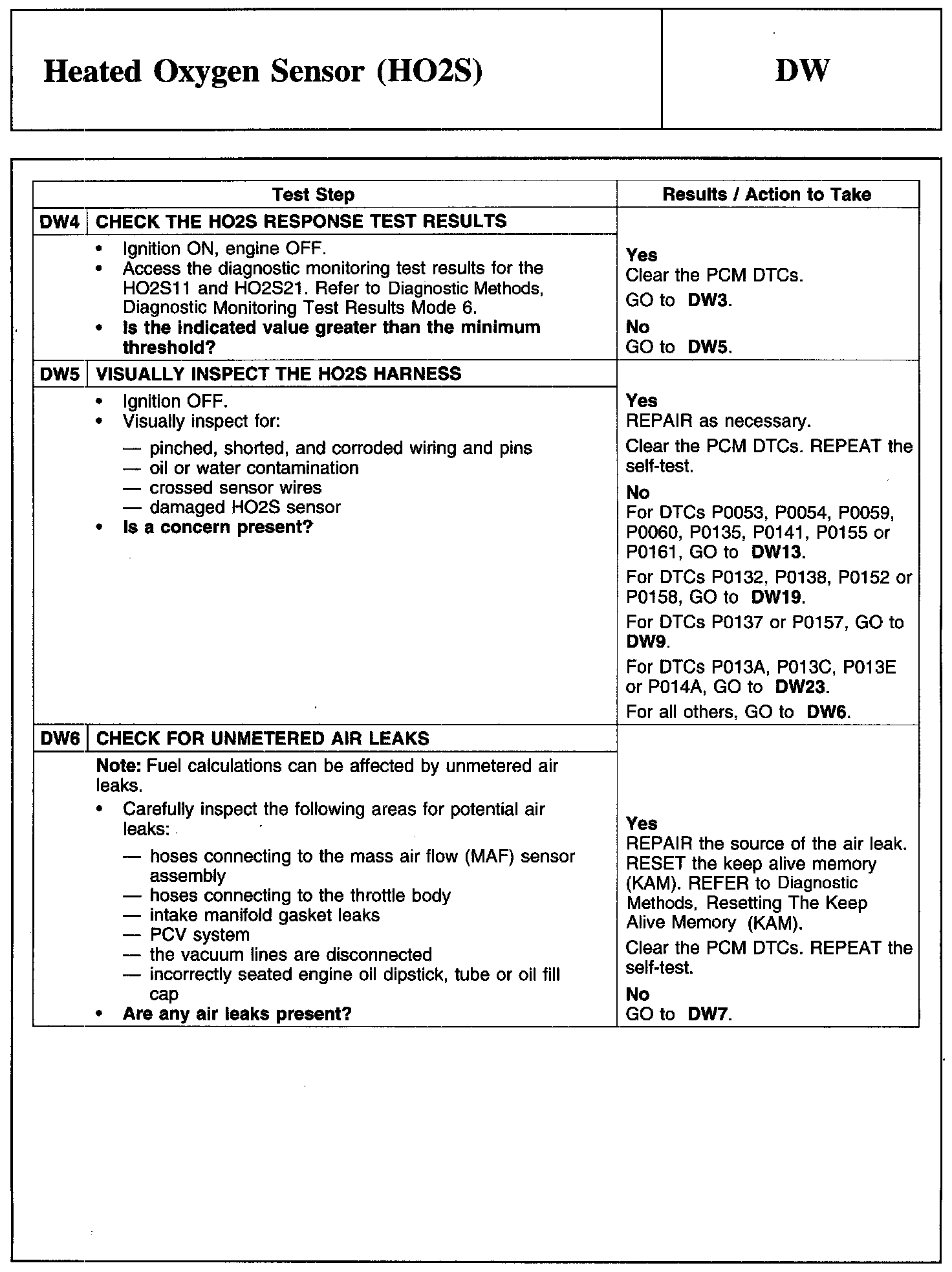

DW4-DW6:

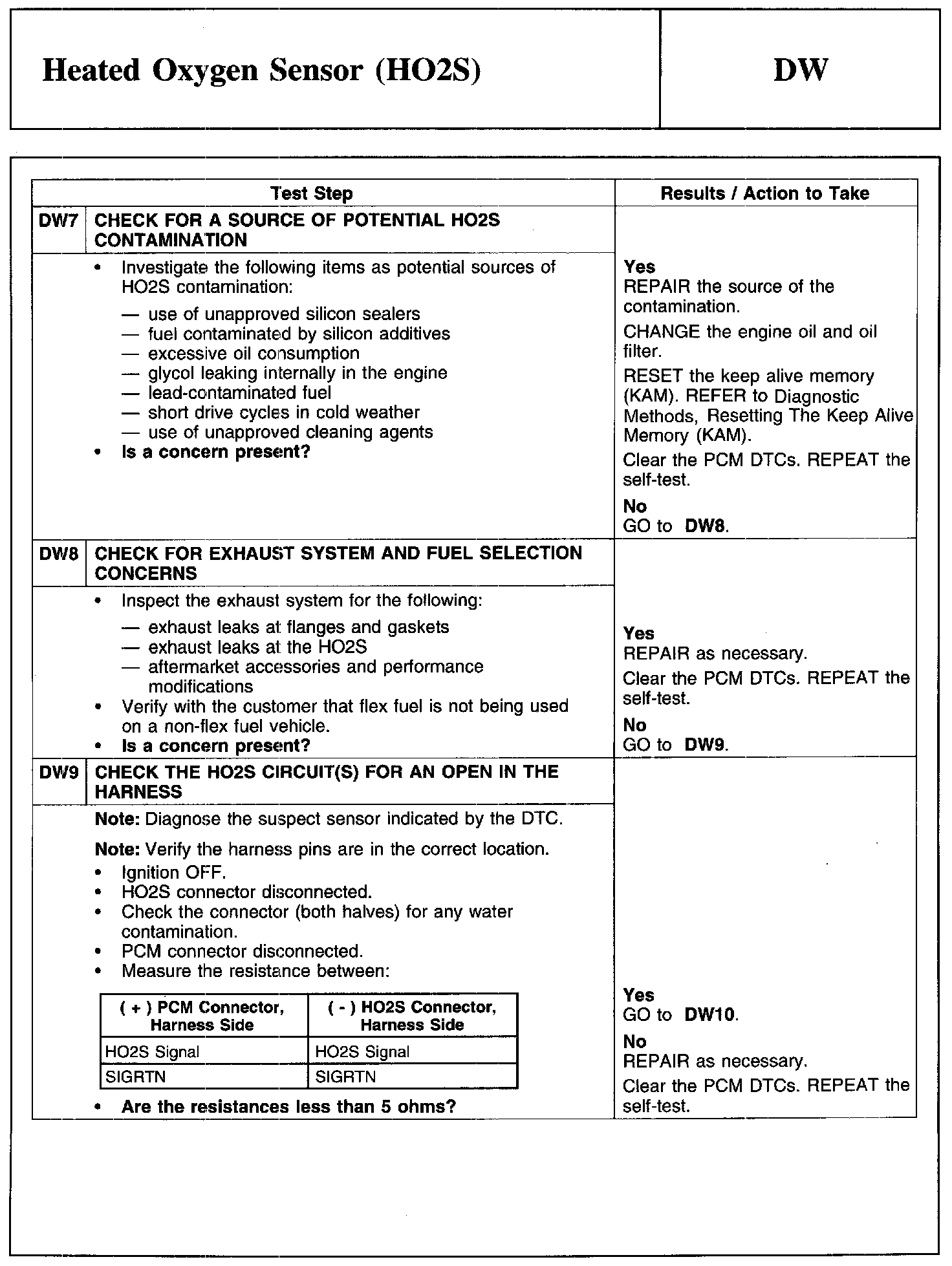

DW7-DW9:

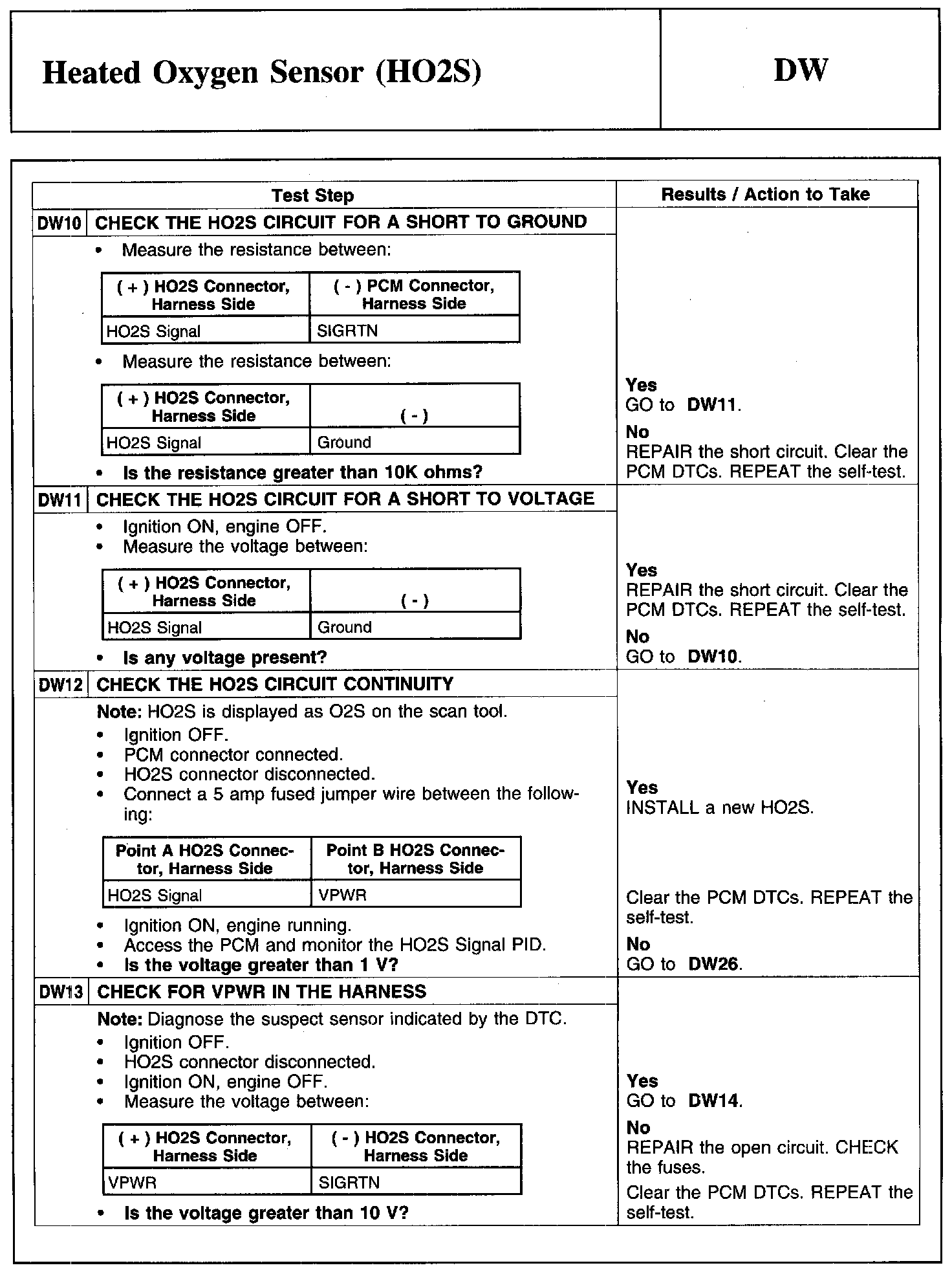

DW10-DW13:

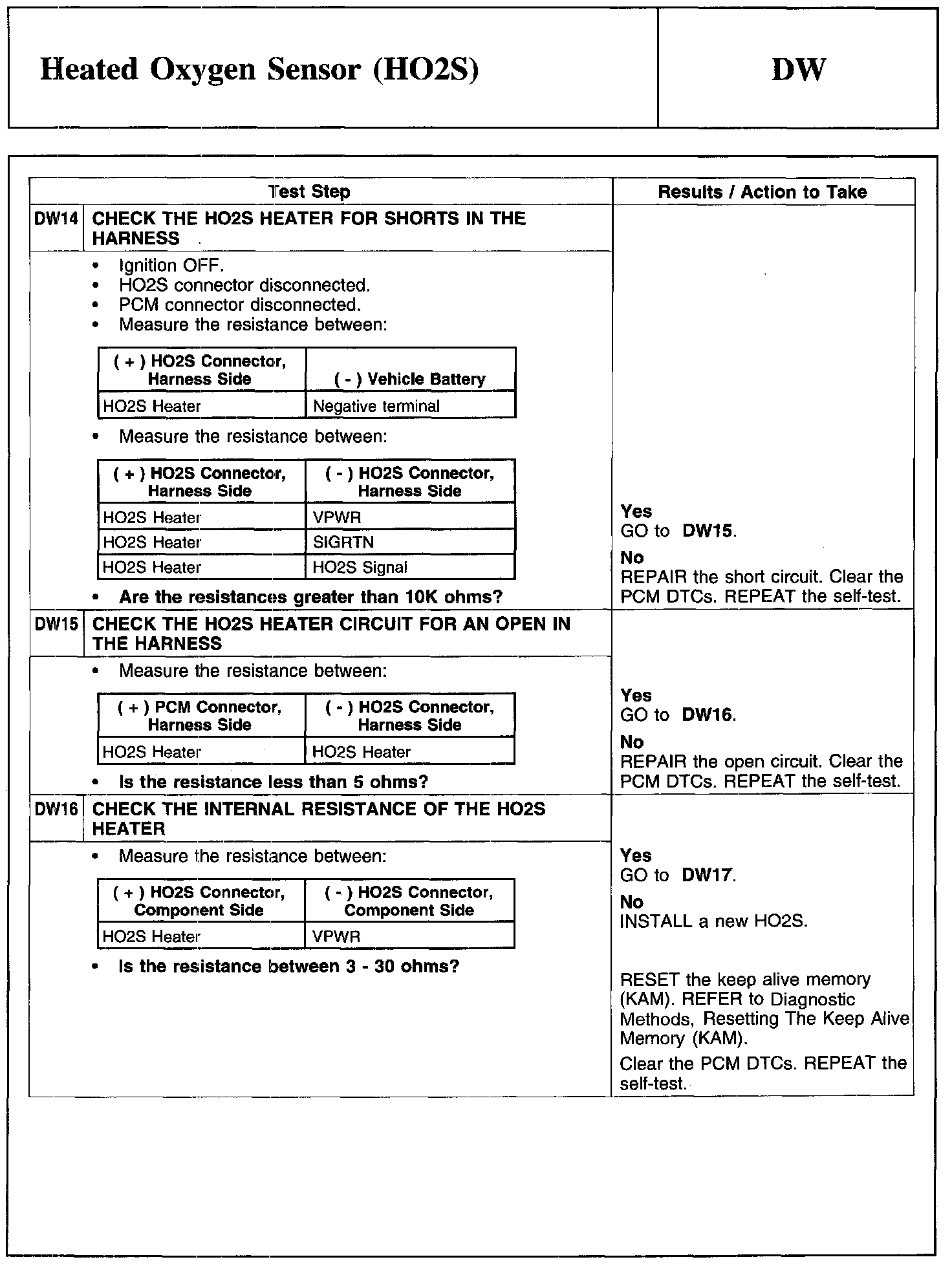

DW14-DW16:

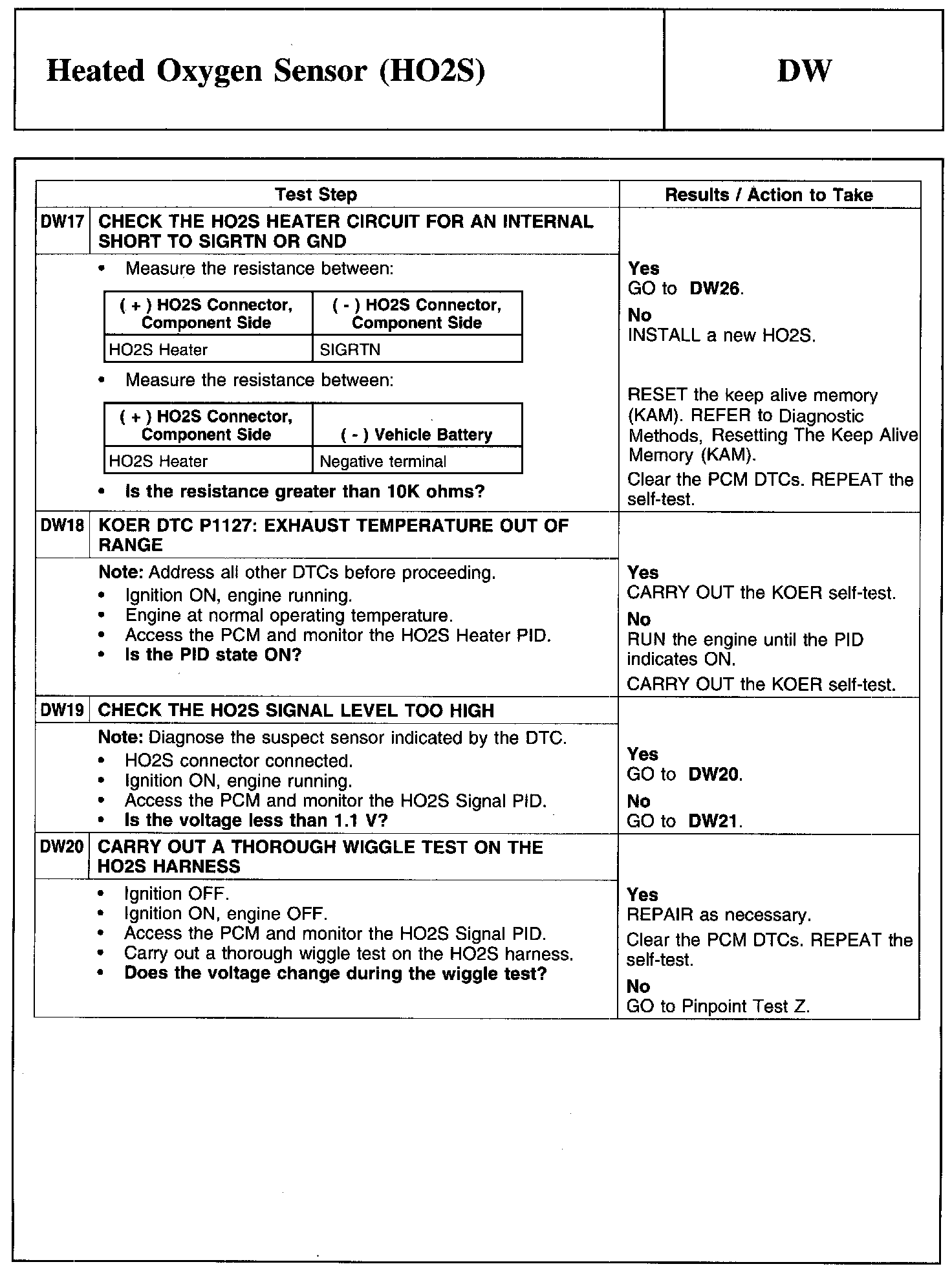

DW17-DW20:

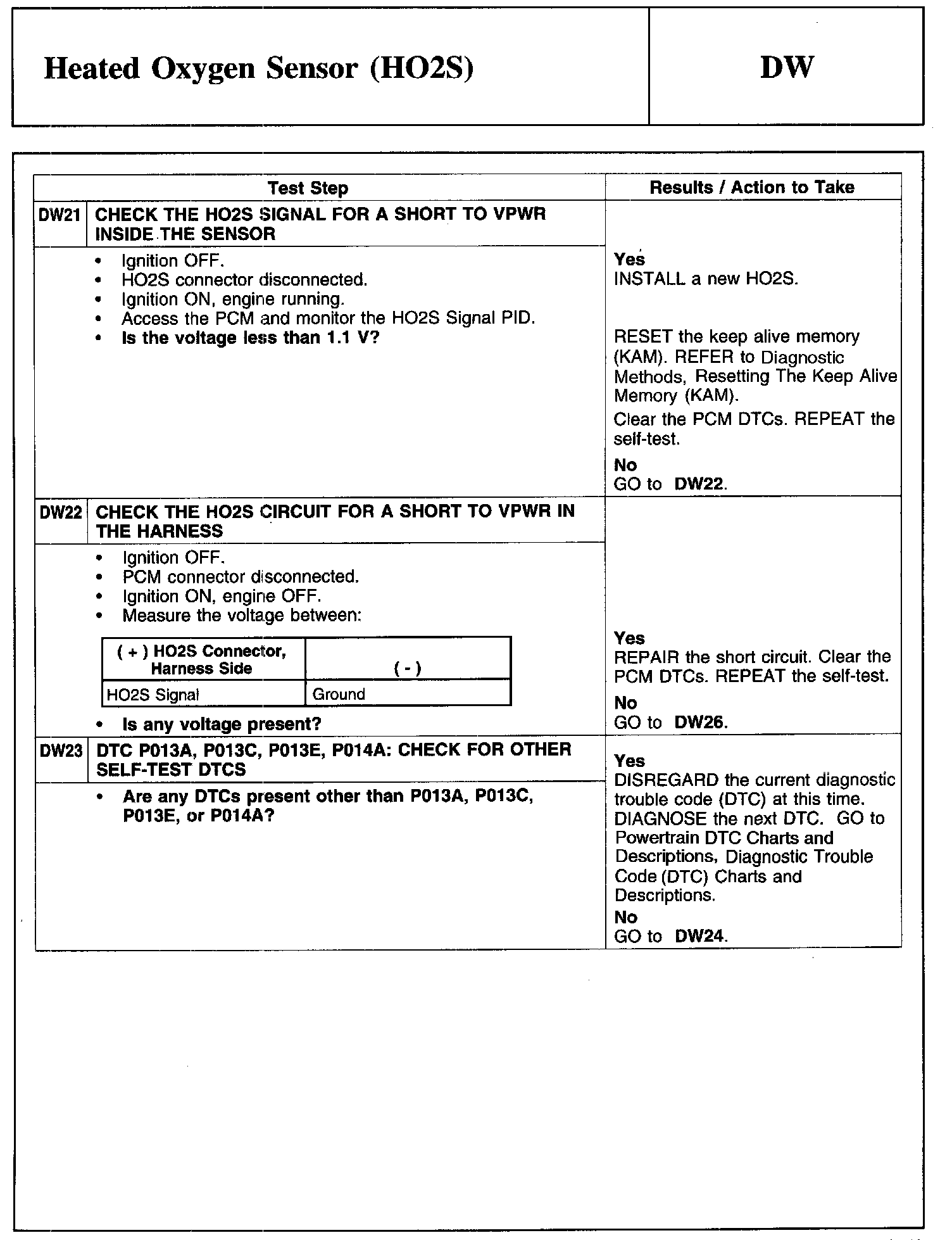

DW21-DW23:

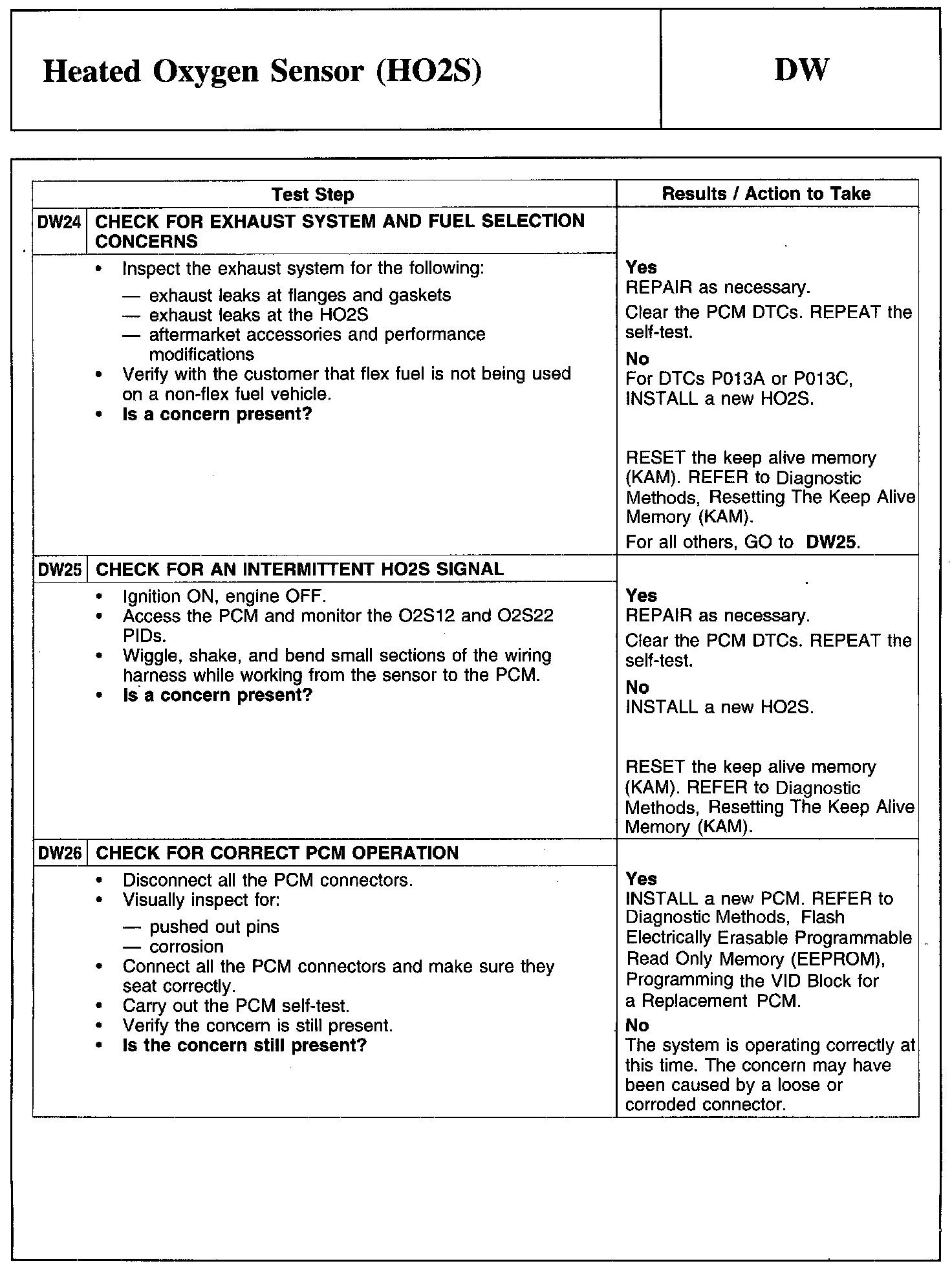

DW24-DW26:
