Test DT: Power Steering Pressure (PSP) Sensor

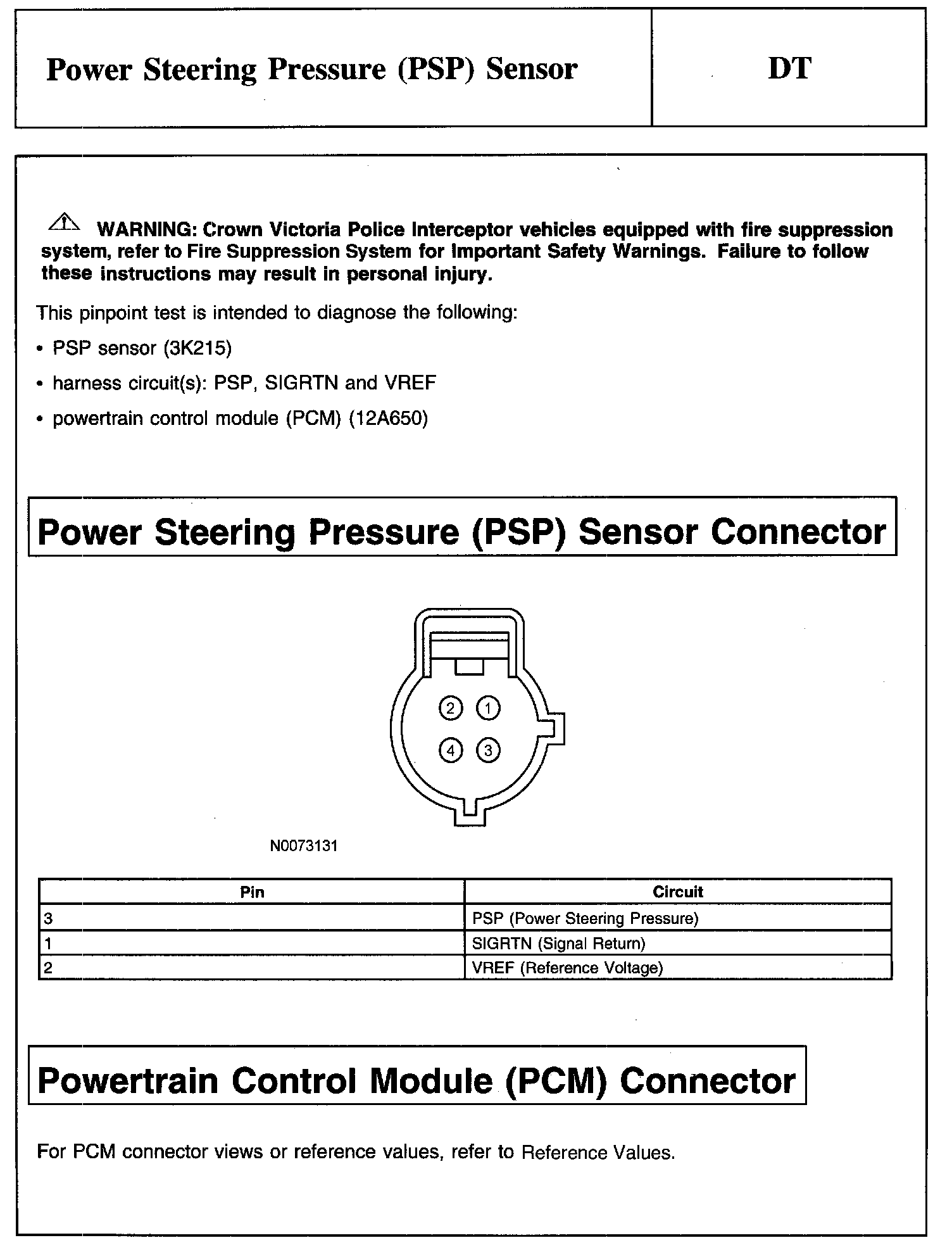

PINPOINT TEST DT: POWER STEERING PRESSURE (PSP) SENSORWarning, Power Steering Pressure (PSP) Sensor Connector And Powertrain Control Module (PCM) Connector:

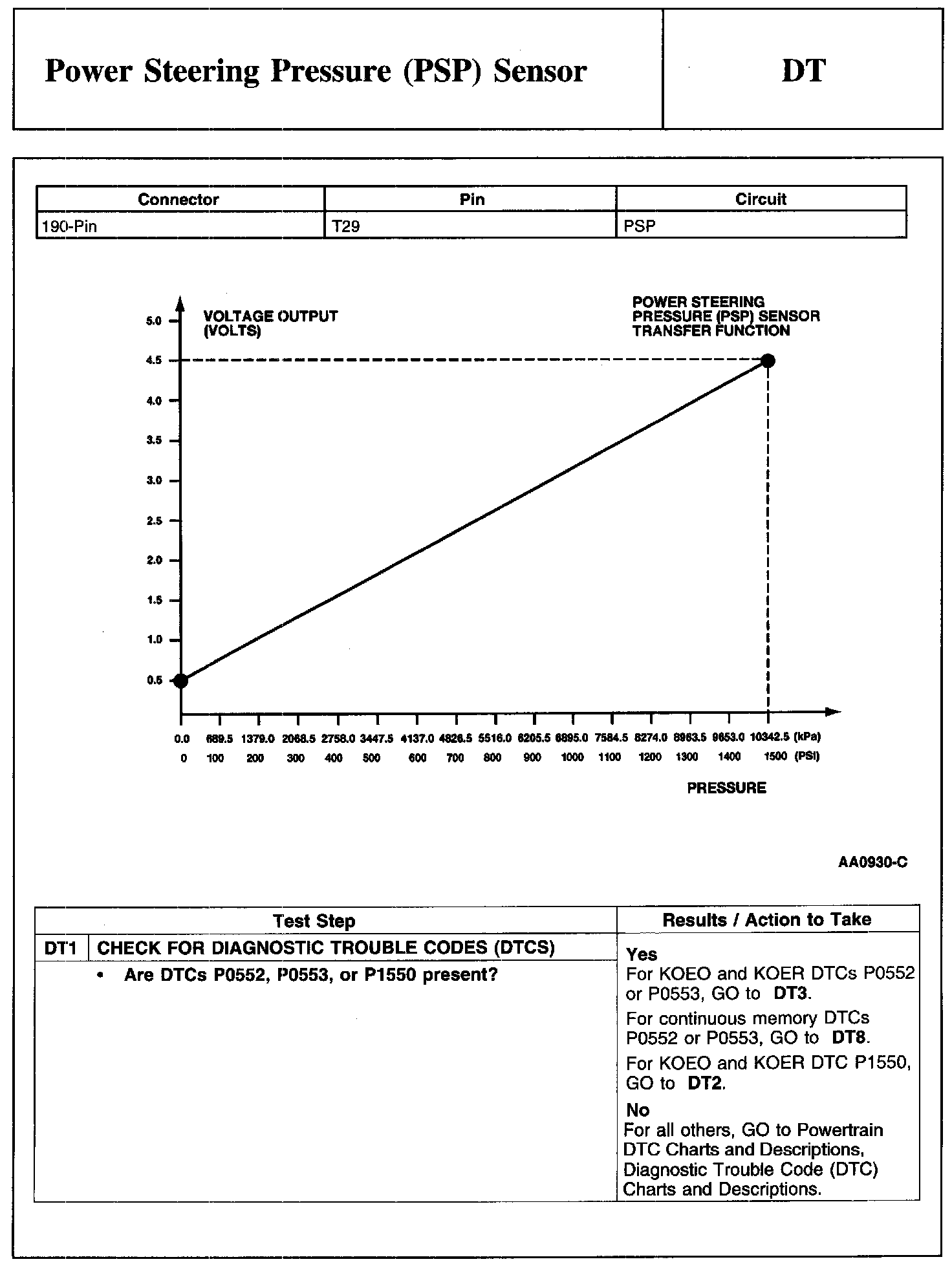

DT1:

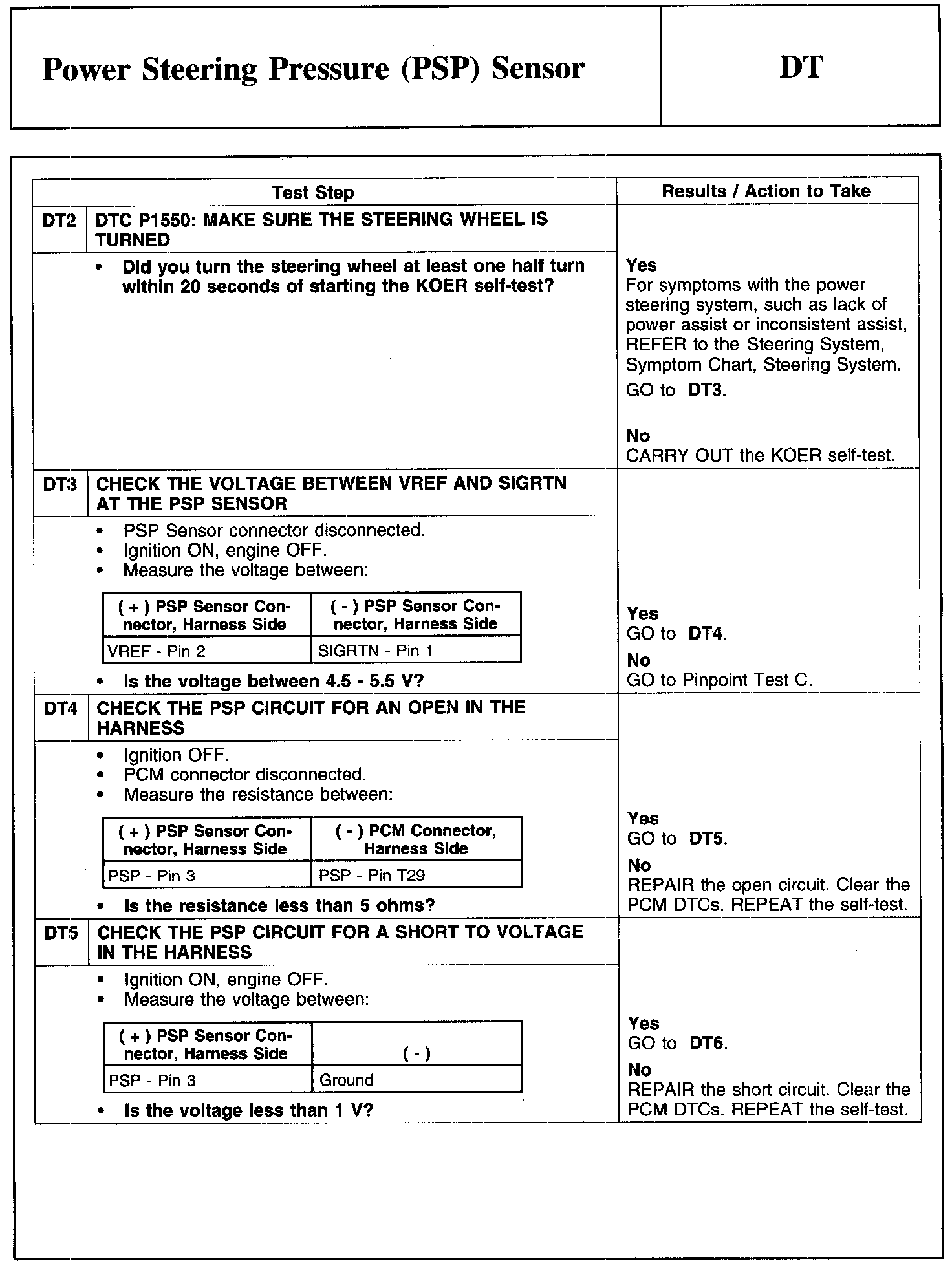

DT2-DT5:

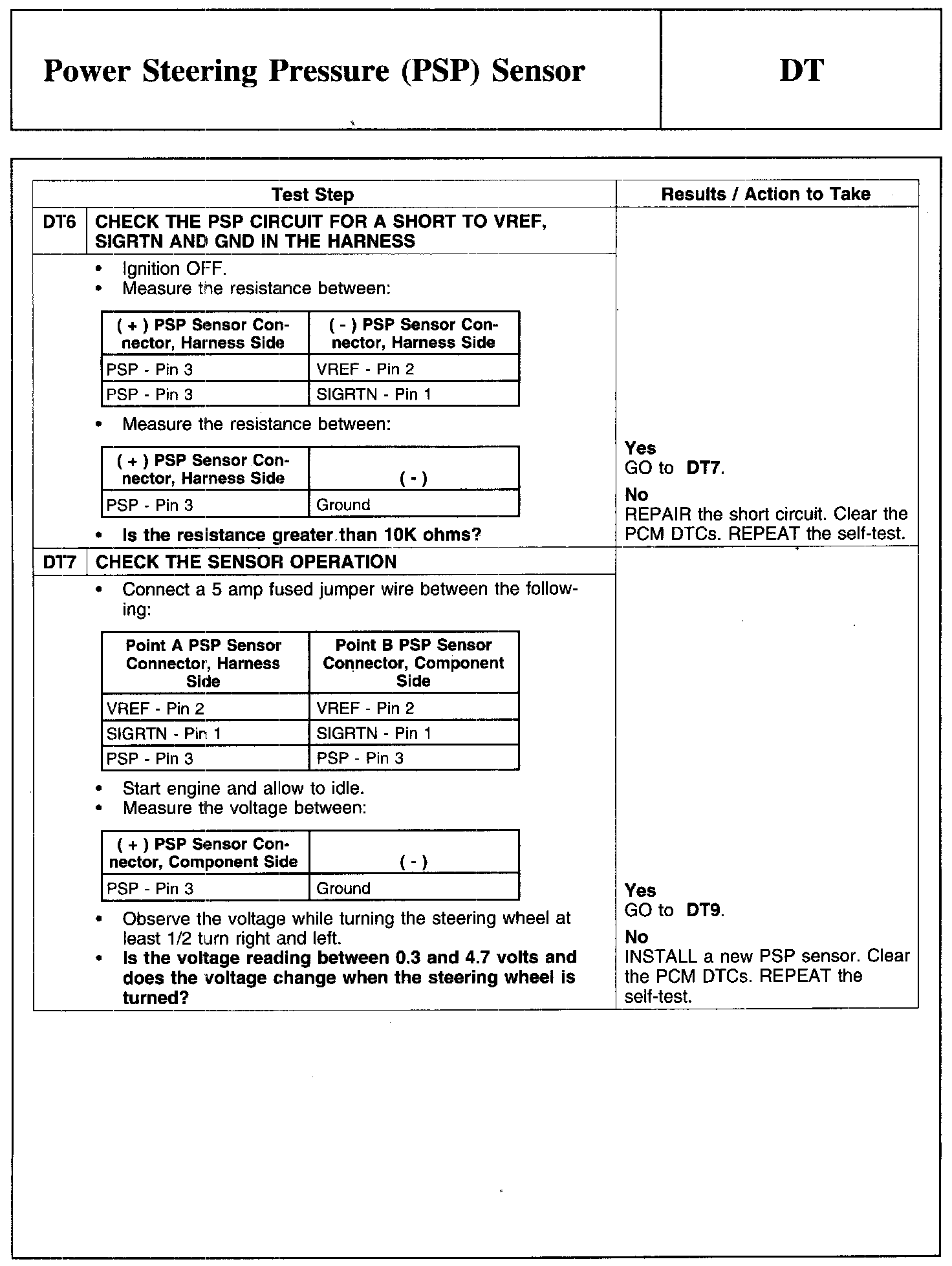

DT6-DT7:

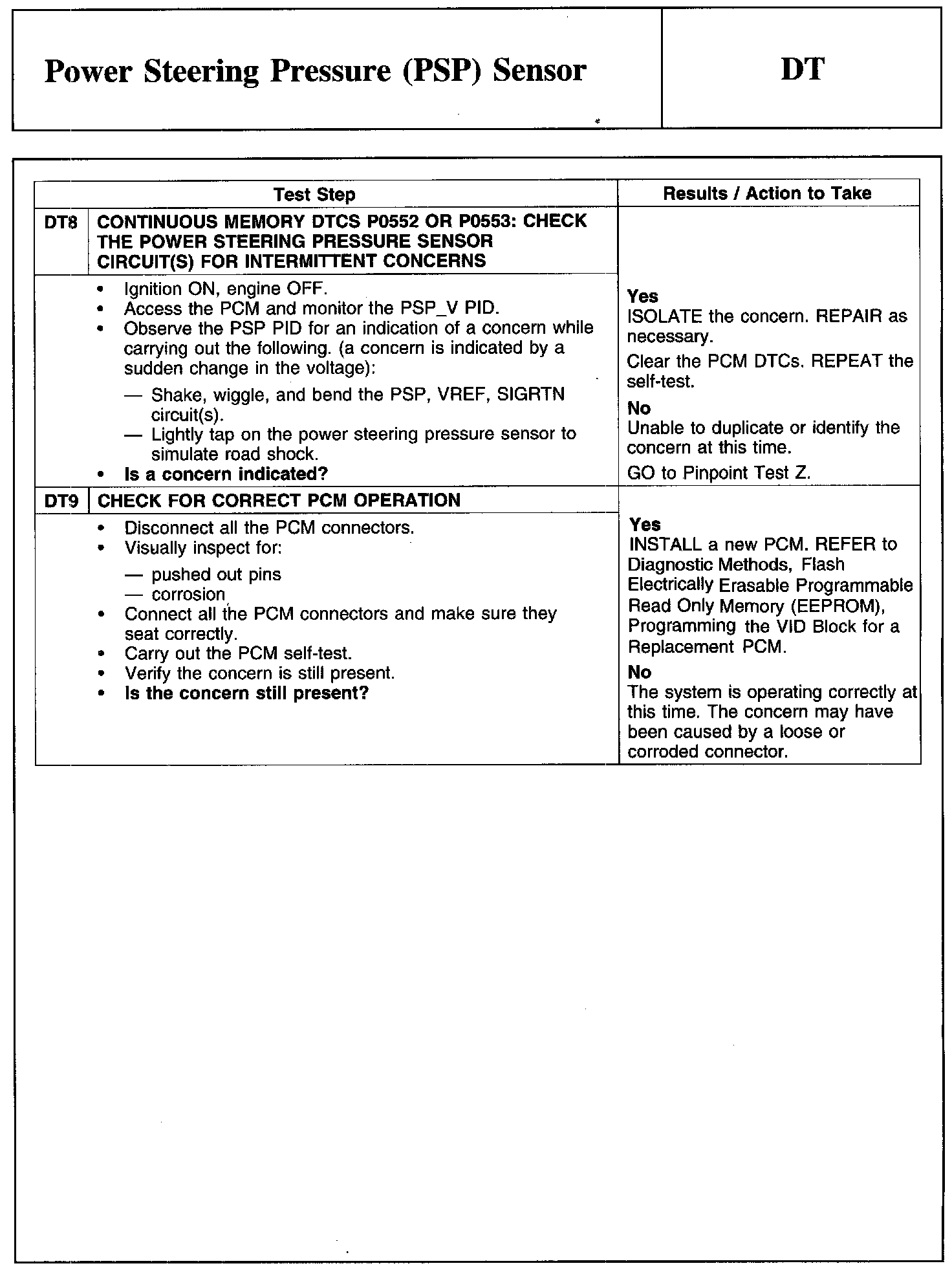

DT8-DT9:
