Blower Motor: Service and Repair

Blower Motor

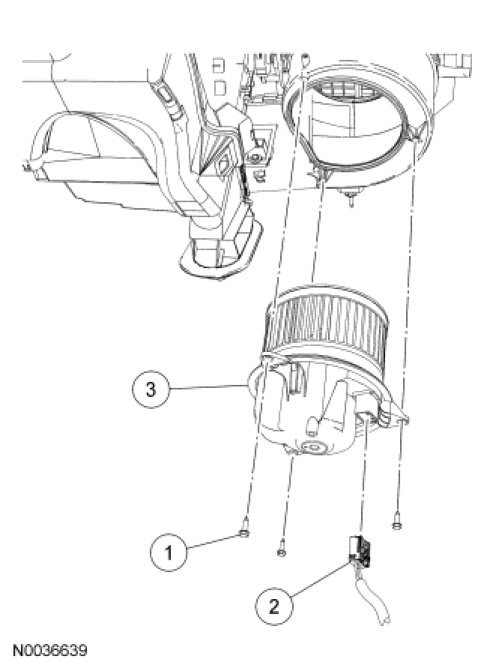

Removal and Installation

1. Remove the RH lower instrument panel insulator.

2. Remove the floor duct screw and the floor duct.

3. Disconnect the blower motor electrical connector.

4. Remove the 3 blower motor screws.

5. Remove the blower motor.

6. To install, reverse the removal procedure.
