Auxiliary Power Outlet
>>
Power Point, Front
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

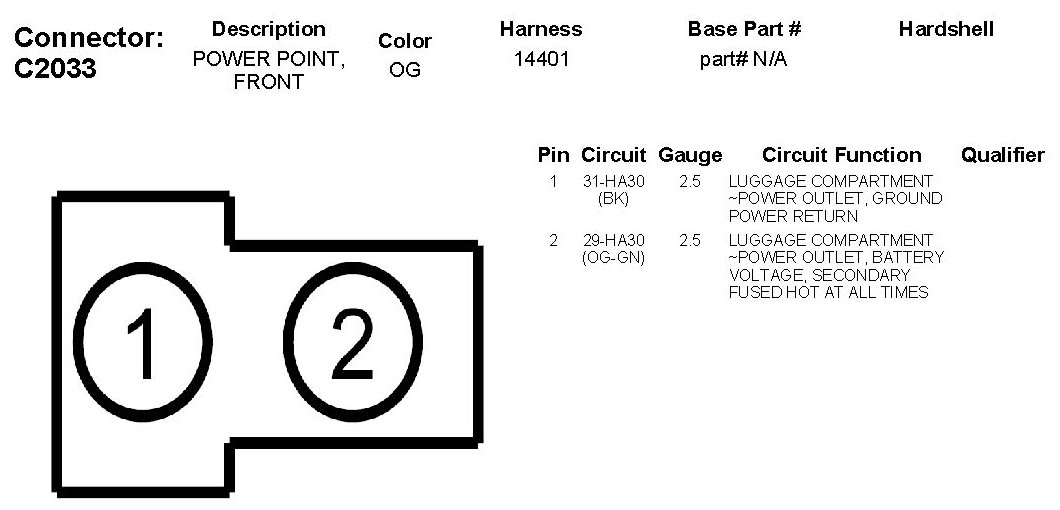

Power Point, Front
