Power Mirror Switch: Service and Repair

Exterior Mirror Control Switch

Removal and Installation

1. Remove the exterior mirror control switch.

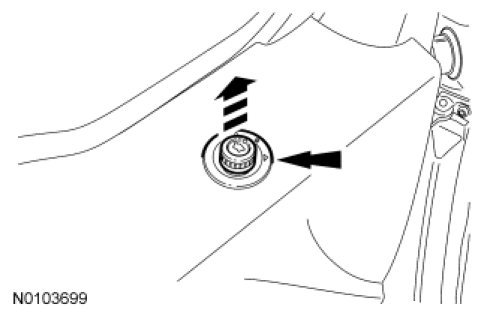

- Using a non-marring tool, pry upward on the exterior mirror control switch at the location shown.

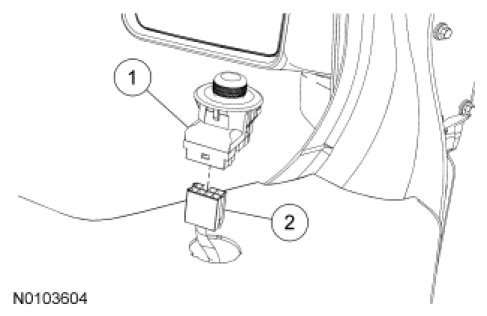

2. Disconnect the exterior mirror control switch electrical connector.

3. To install, reverse the removal procedure.
