Start/Stop Switch Connector - C2195

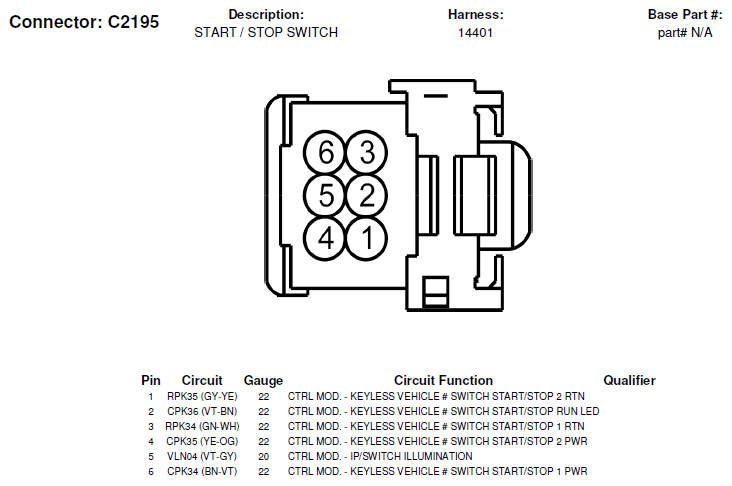

Fig 1: Start/Stop Switch Connector End View (C2195)
Courtesy of FORD MOTOR CO.
