Start/Stop Switch




Start/Stop Switch









Removal and Installation

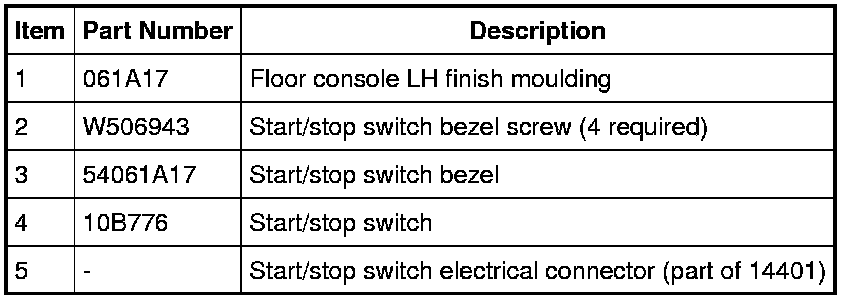

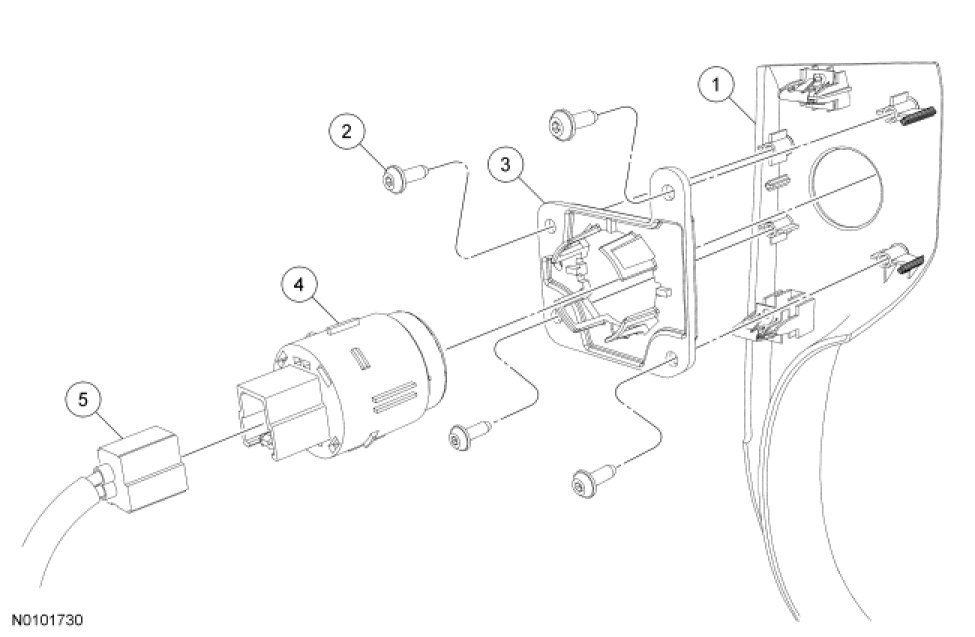

1. Remove the floor console LH finish moulding in the following sequence:

1. Lift up the rear of the floor console finish moulding to release the retaining clips from the floor console.

2. Pull the floor console finish moulding toward the rear of the vehicle to release the retaining clips from the center instrument finish panel.

3. Disconnect the start/stop switch electrical connector.

2. Remove the 4 start/stop switch bezel screws and remove the start/stop switch.

3. To install, reverse the removal procedure.
- Make sure to align the retaining clips to the adjacent retaining clip holes.
