Test HP: High Pressure Fuel Delivery System

PINPOINT TEST HP: HIGH PRESSURE FUEL DELIVERY SYSTEM

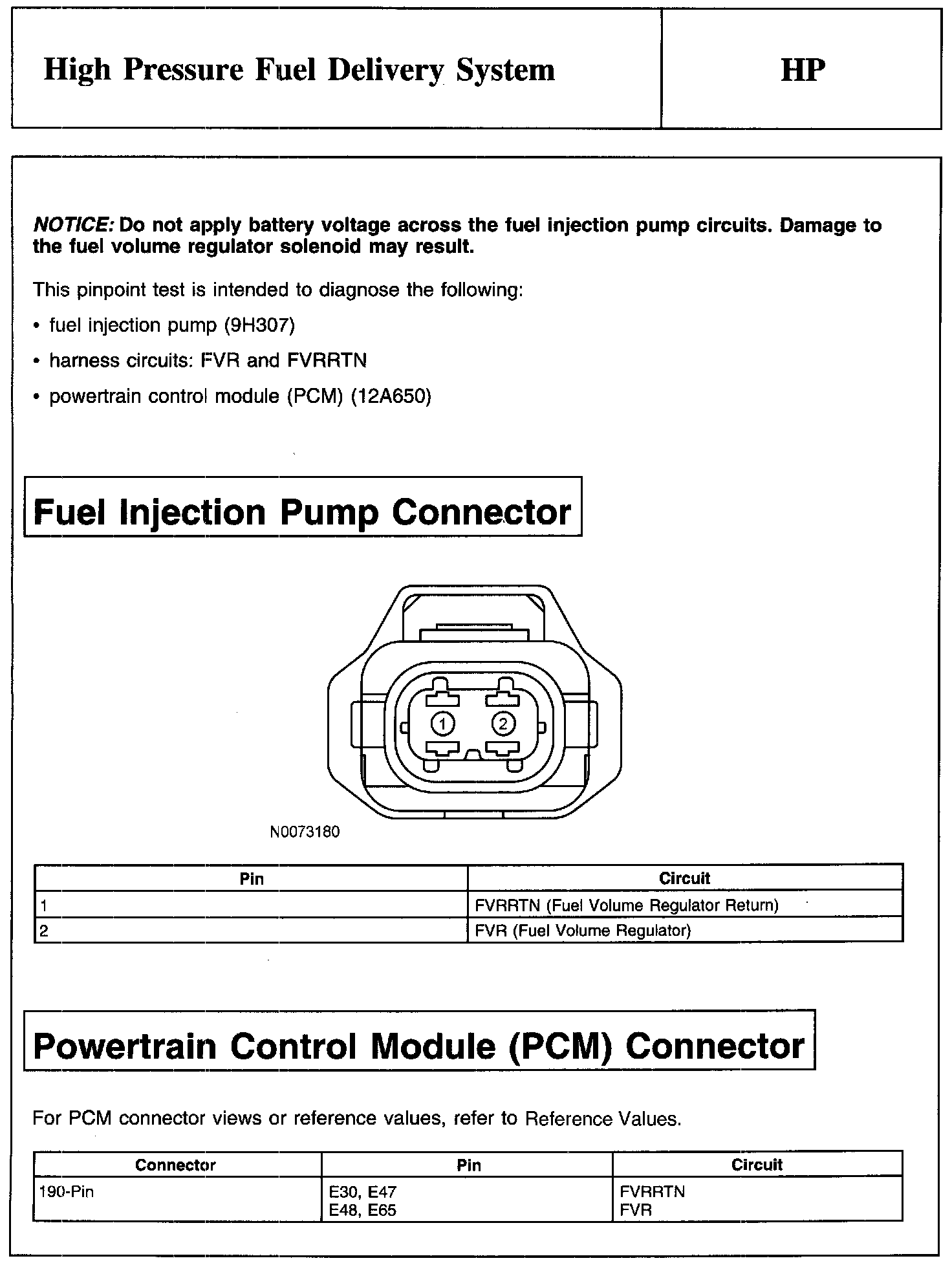

Notice, Fuel Injection Pump Connector And Powertrain Control Module (PCM) Connector:

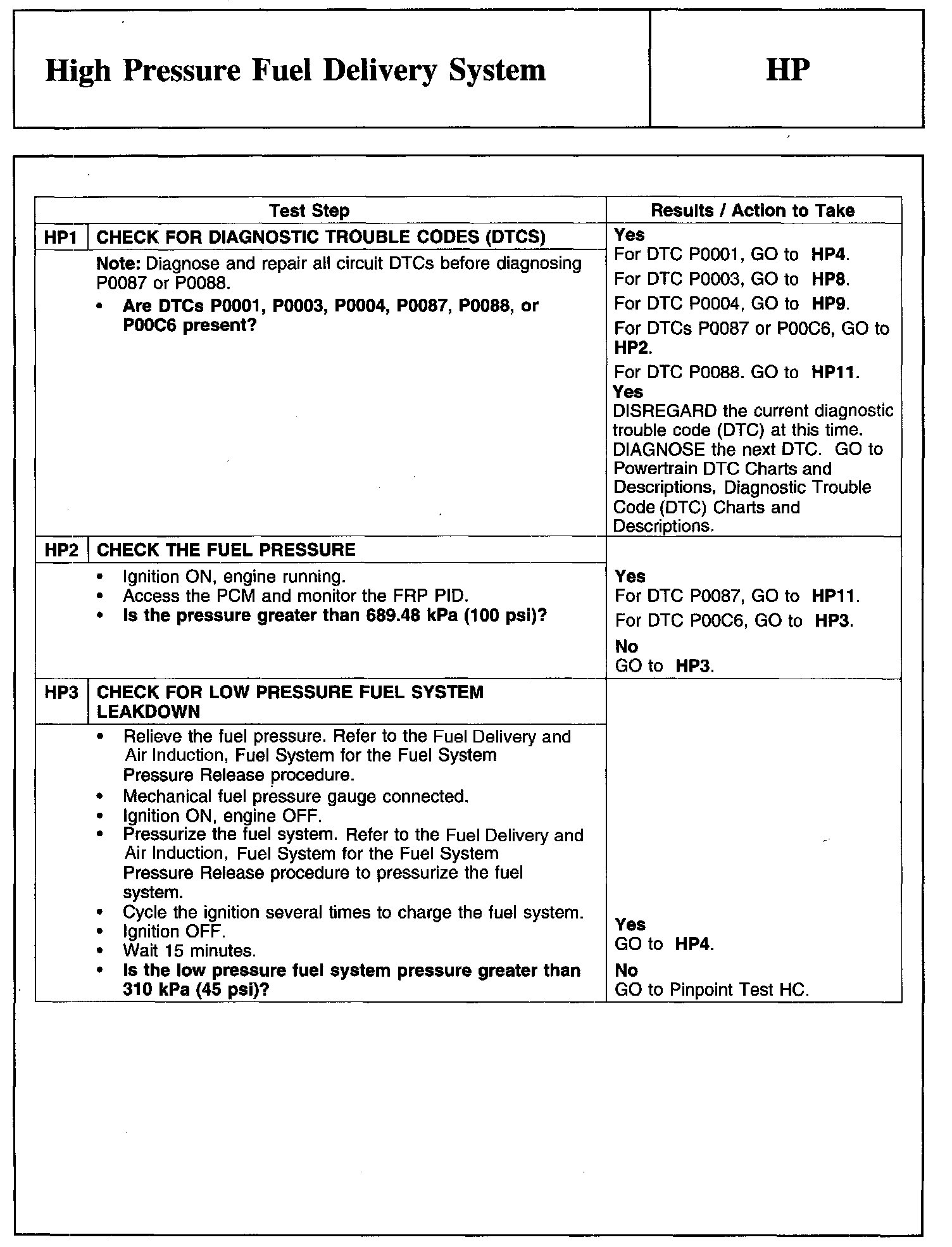

HP1-HP3:

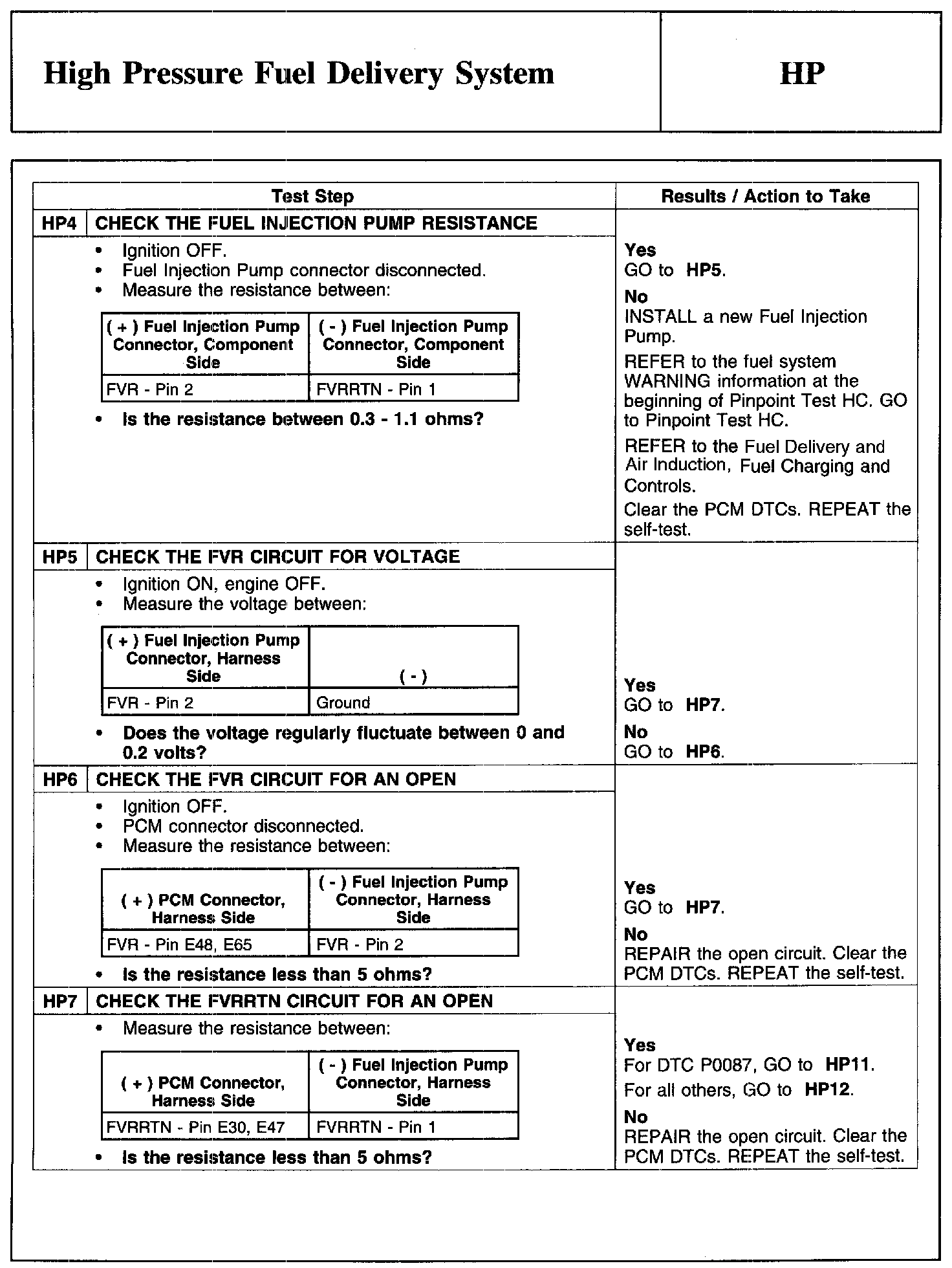

HP4-HP7:

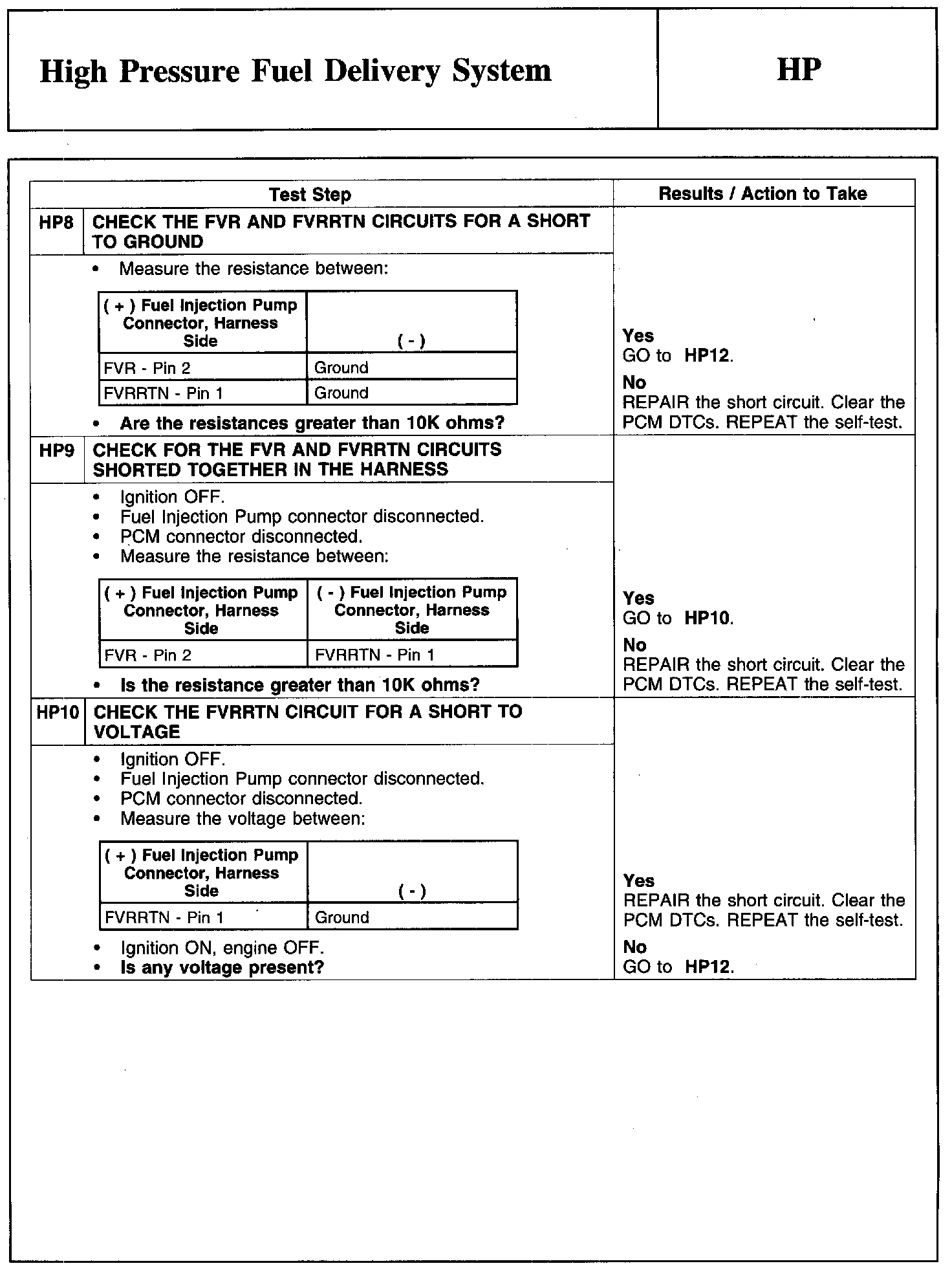

HP8-HP10:

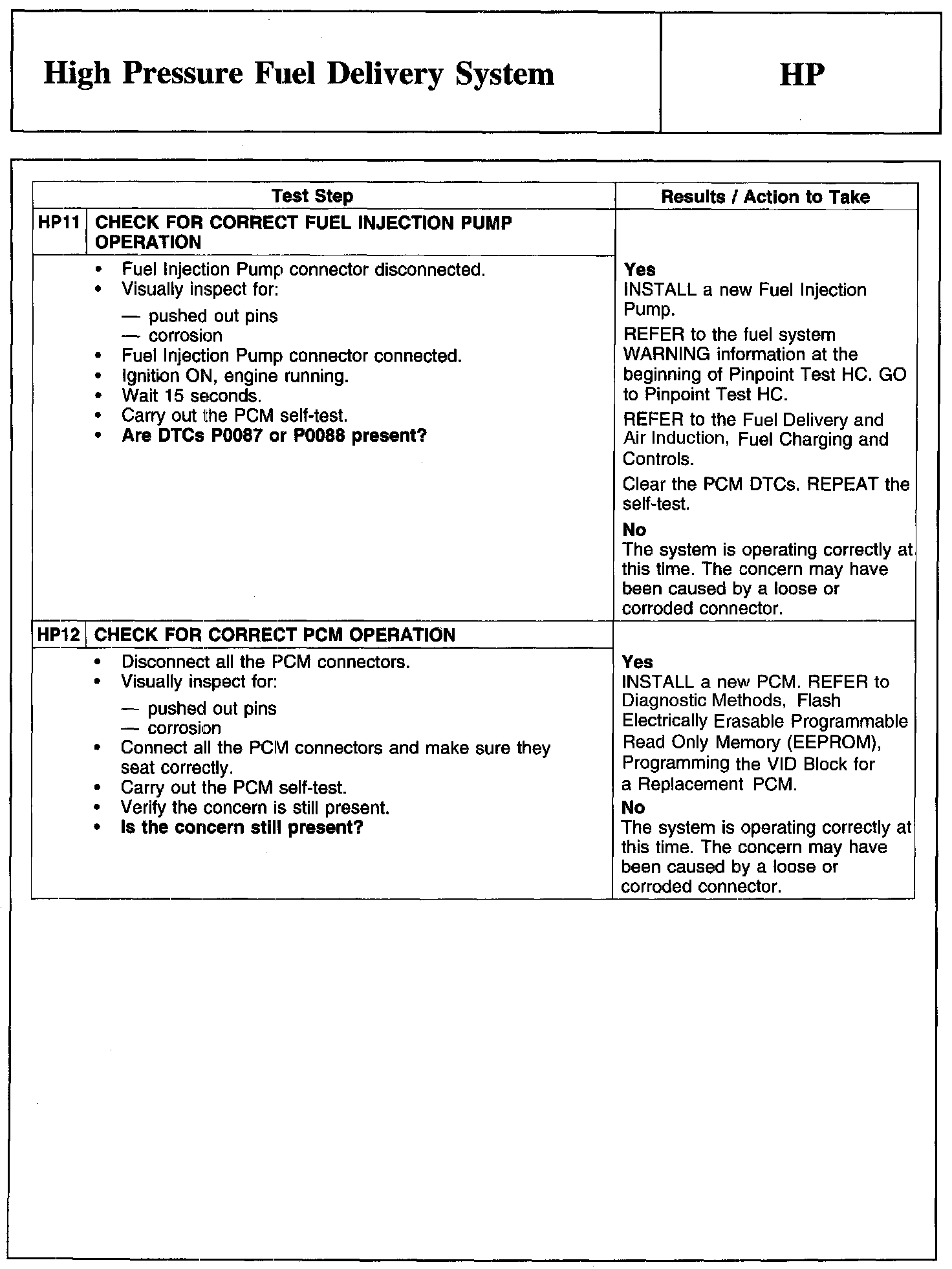

HP11-HP12:
