Home >> Ford >> 2010 >> Taurus AWD V6-3.5L >> Repair and Diagnosis >> Locations >> Splice Locations
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Splice Locations

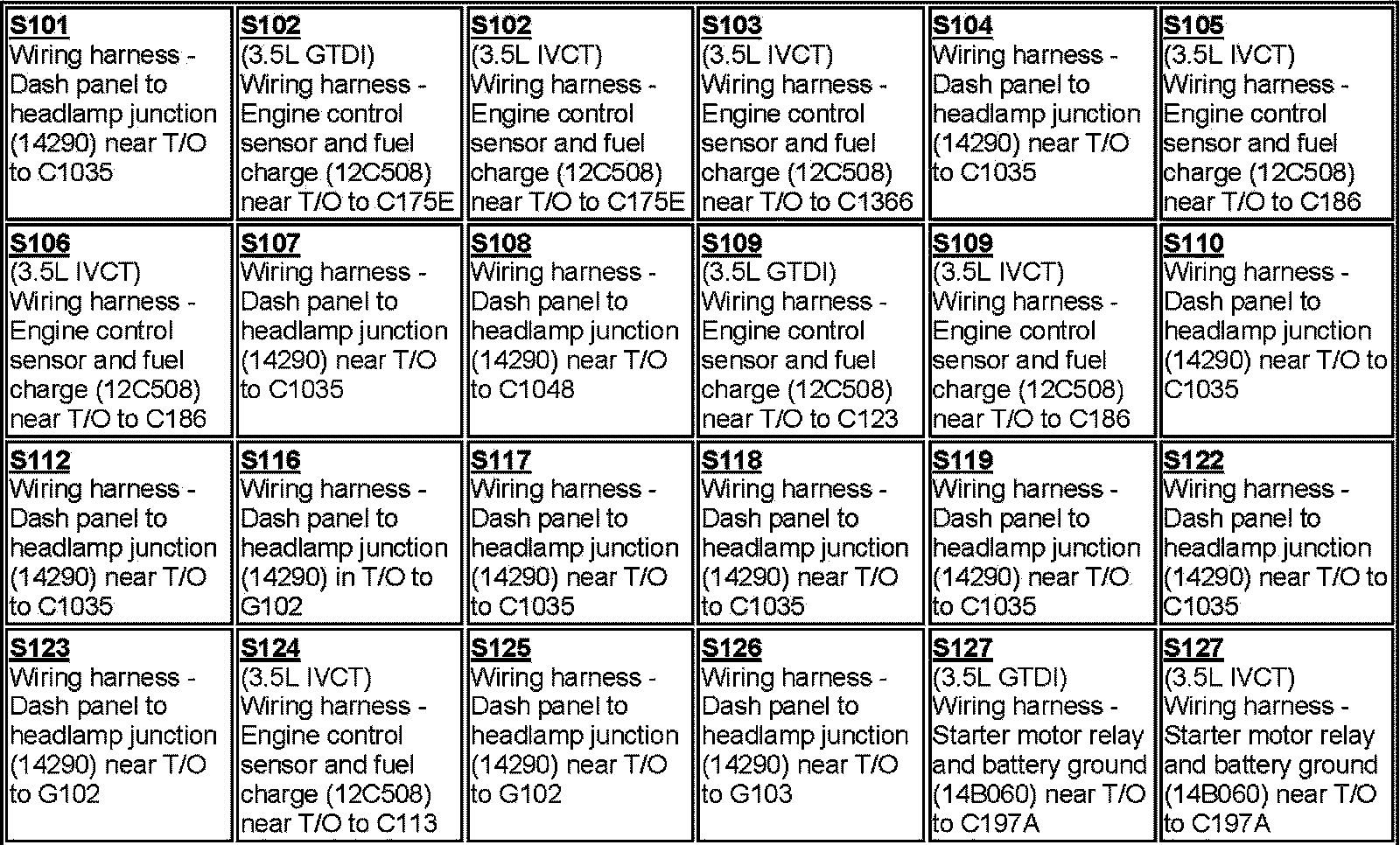

S101-S127:

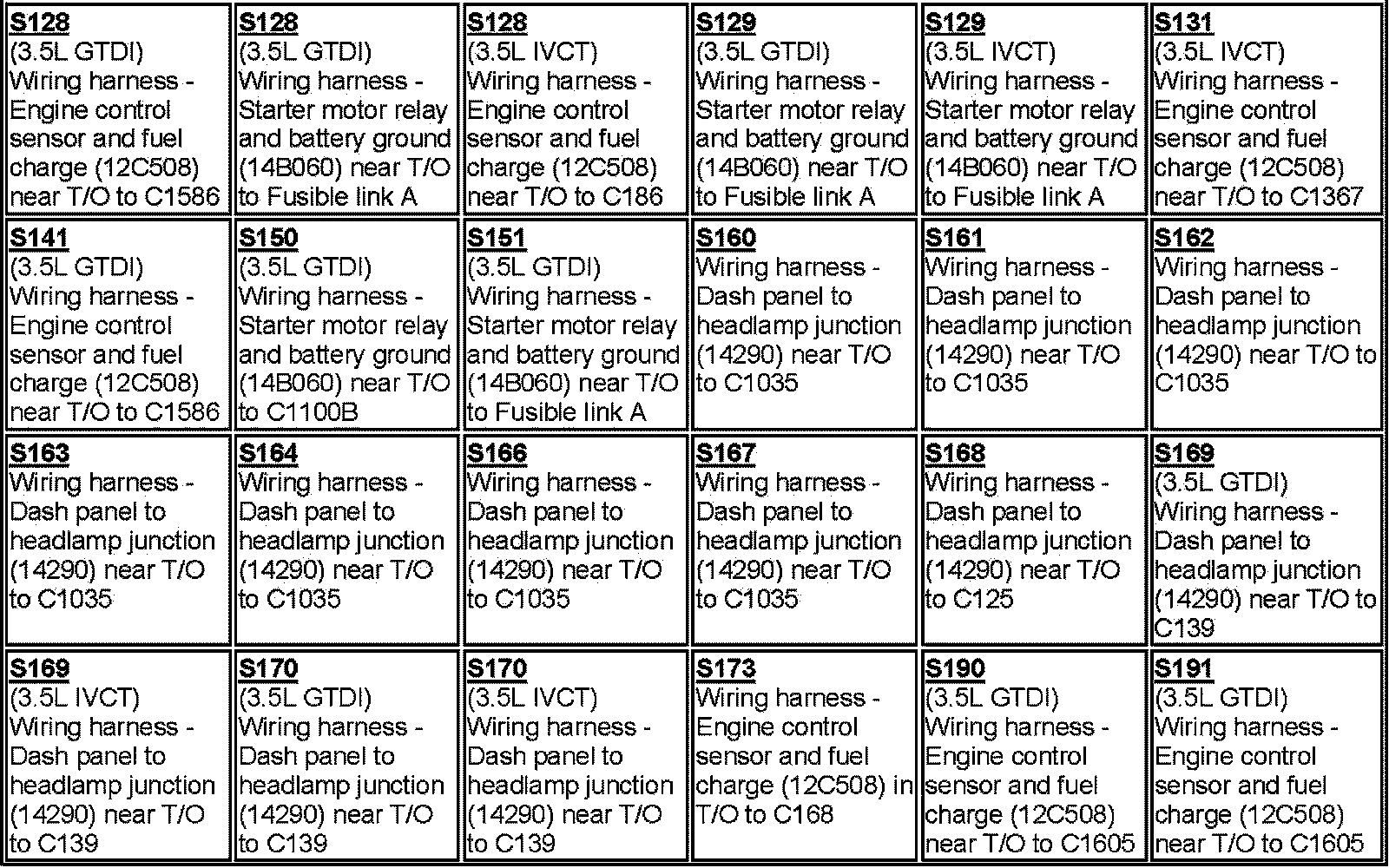

S128-S191:

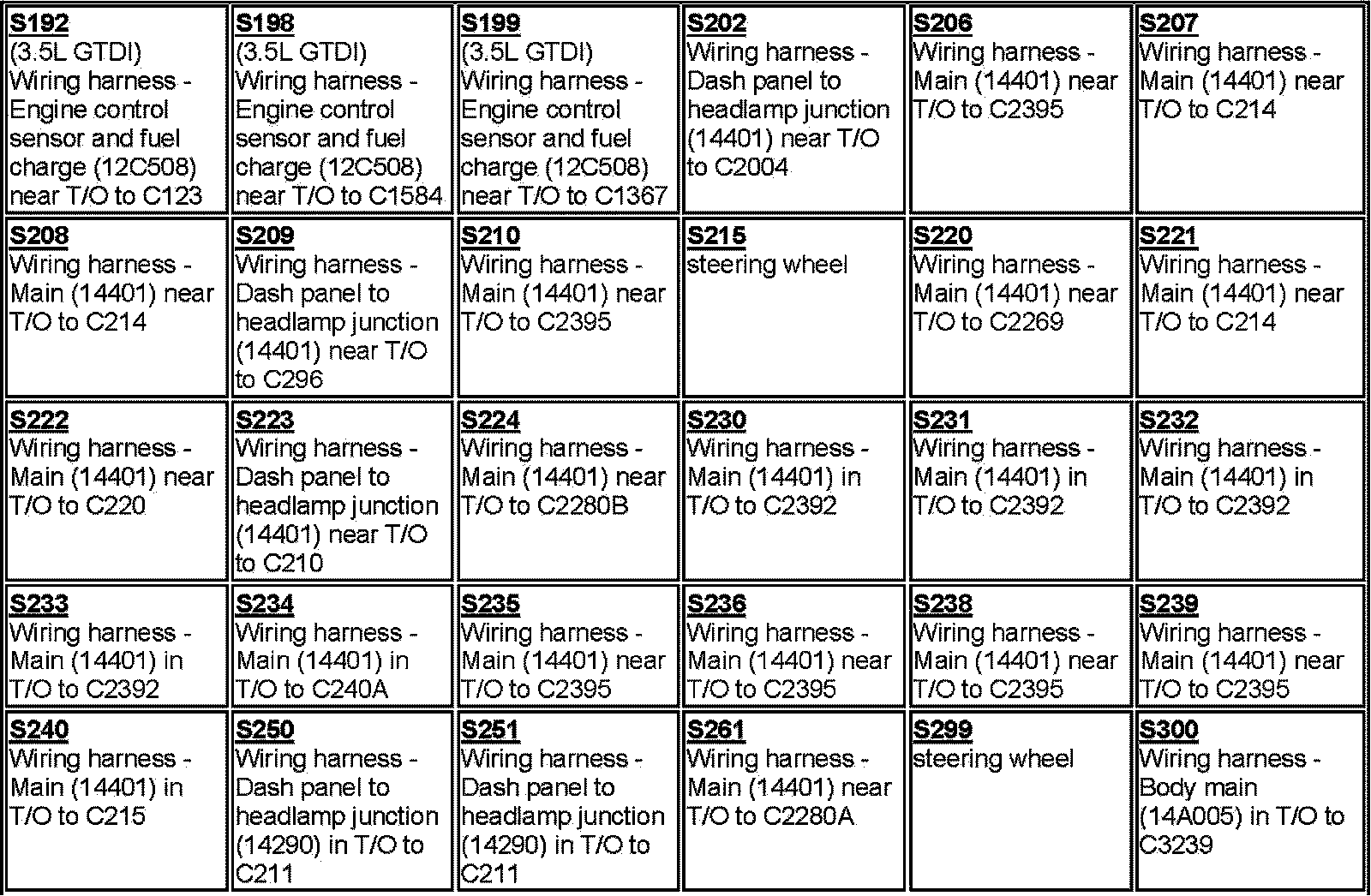

S192-S300:

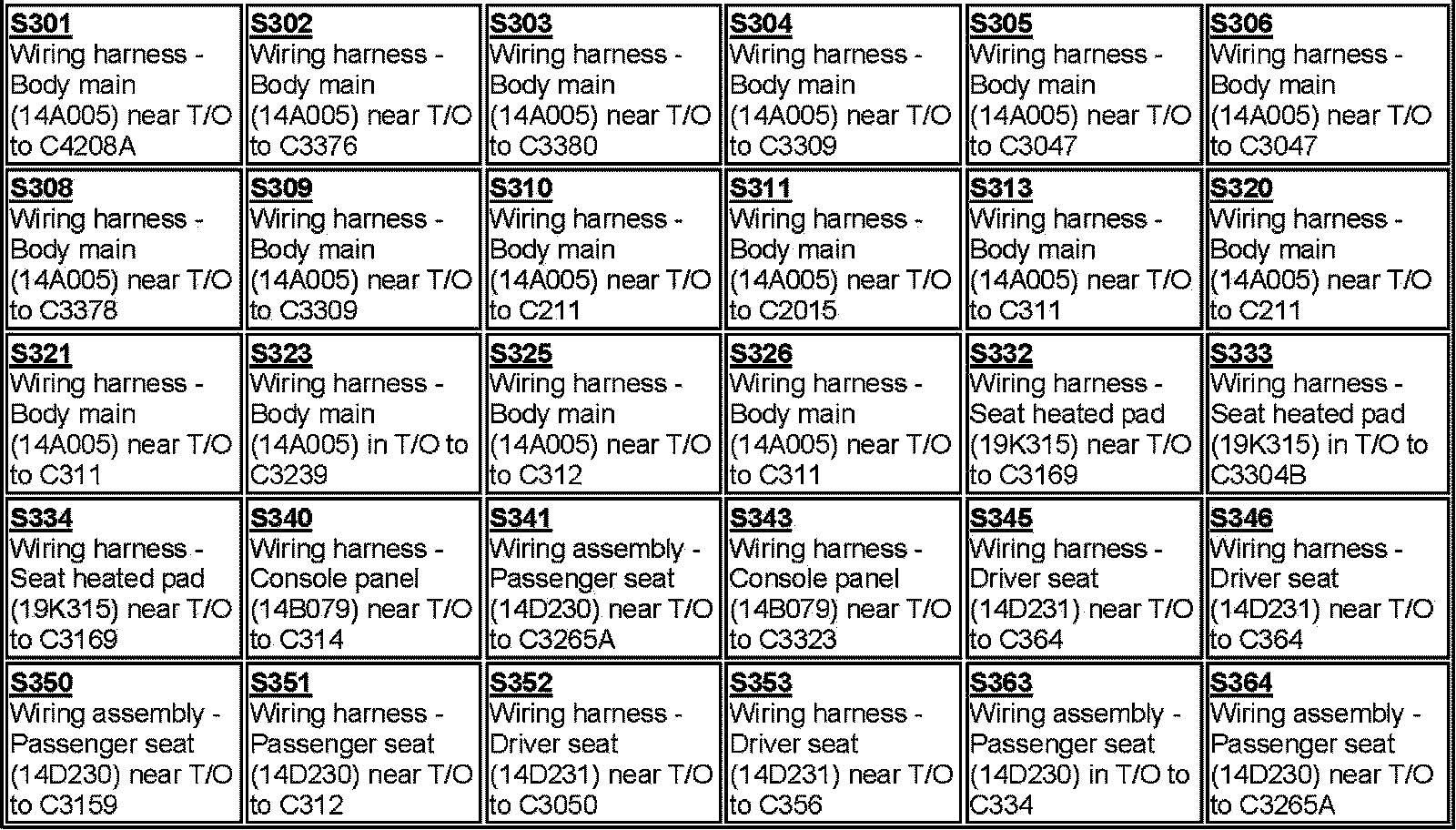

S301-S364:

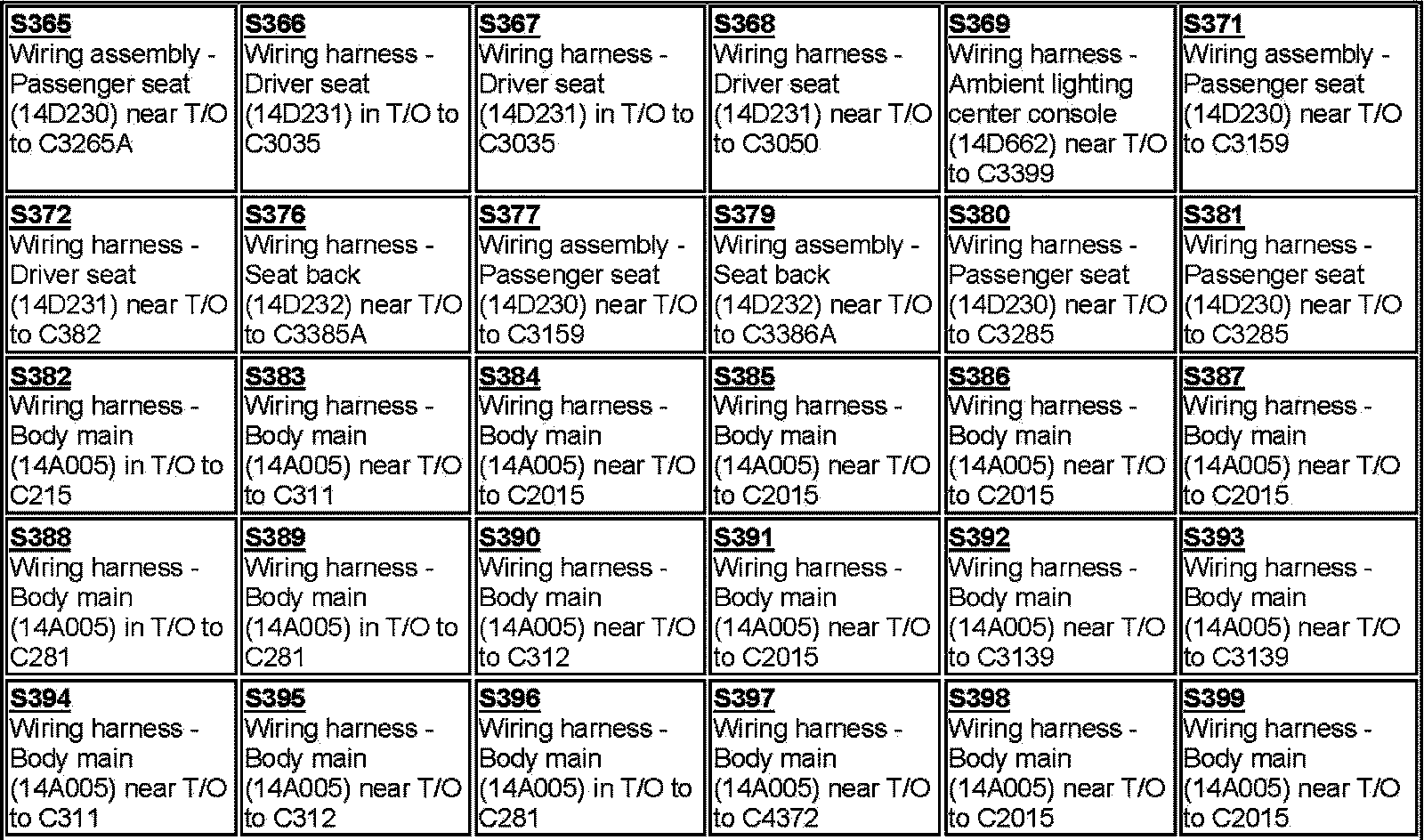

S365-S399:

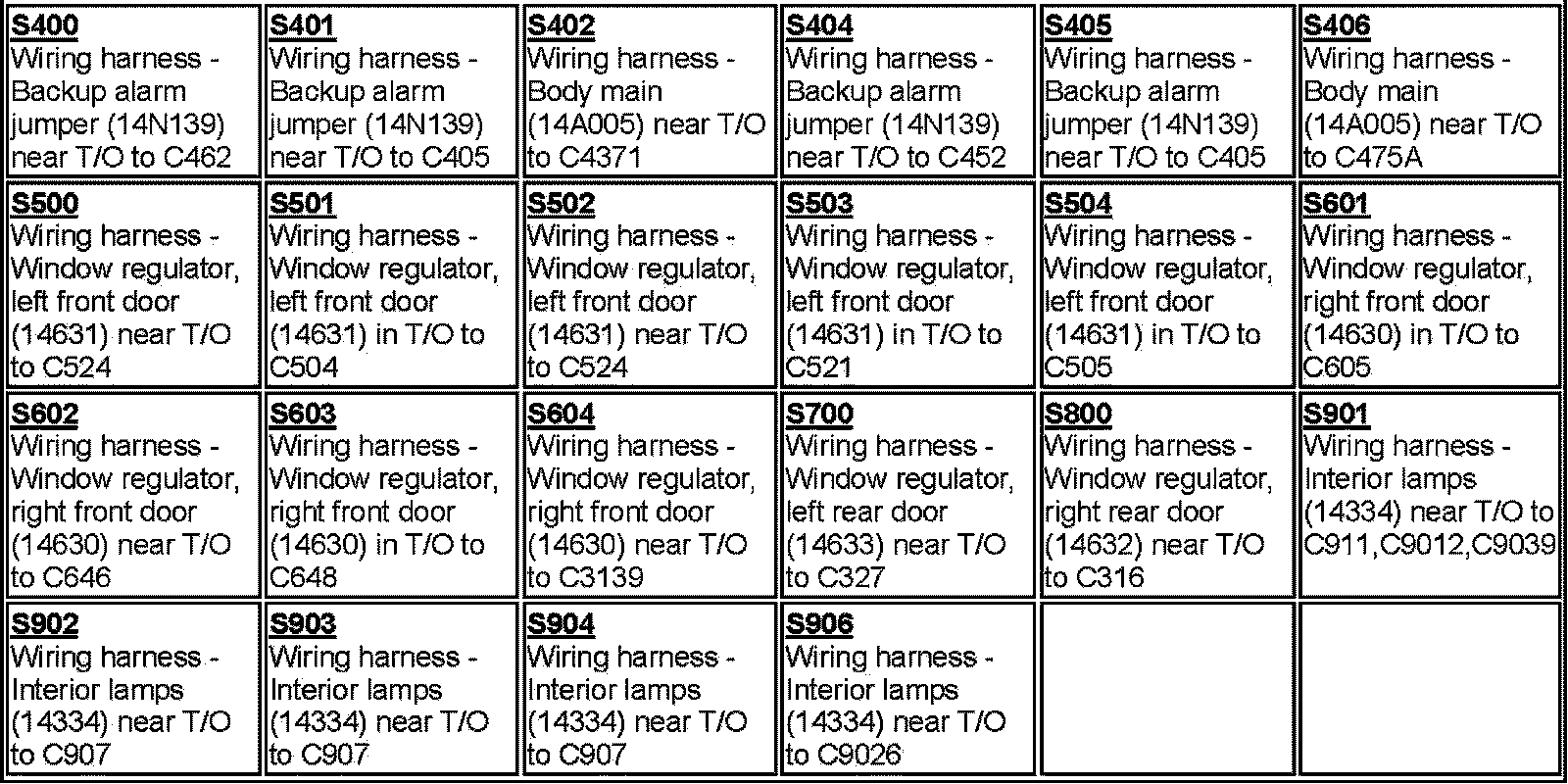

S400-S906:
