Wiper Switch: Service and Repair

Steering Column Multifunction Switch

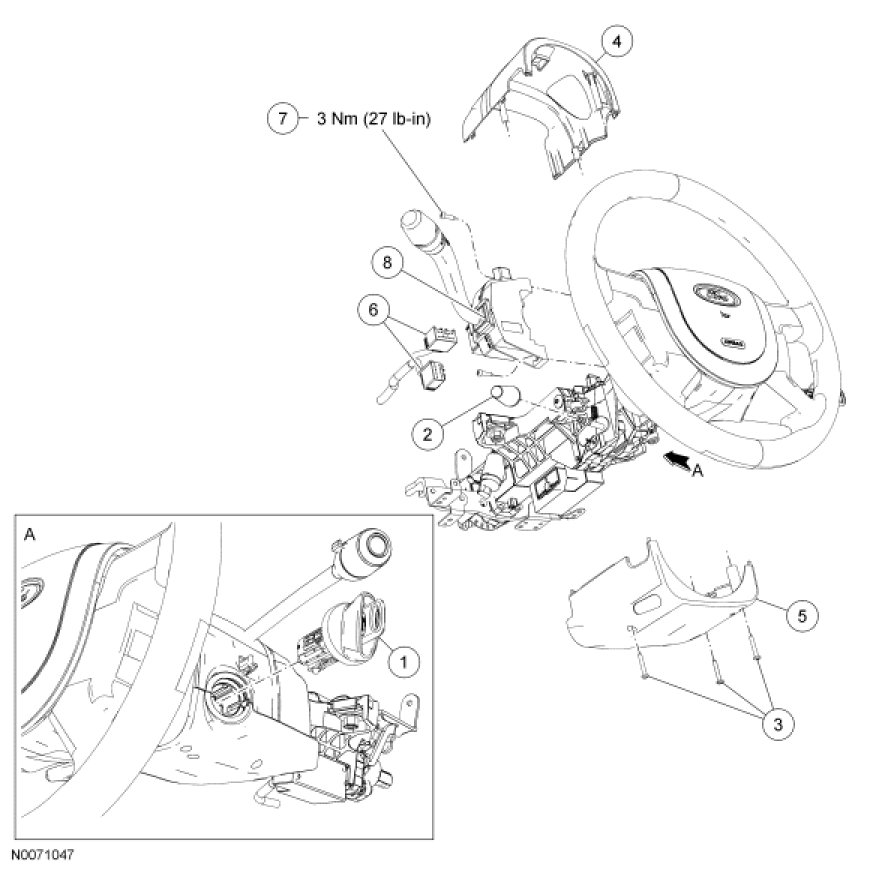

Removal and Installation

1. Remove the ignition switch lock cylinder. For additional information, refer to Doors, Hood and Trunk &/or Locks.

2. If equipped, remove the tilt release lever/ handle.

3. Remove the 3 steering column shroud screws and the upper and lower steering column shrouds.

4. Disconnect the multifunction switch electrical connectors.

5. Remove the 2 screws and the multifunction switch.
- To install, tighten to 3 Nm (27 lb-in).

6. To install, reverse the removal procedure.
