Exhaust Manifold

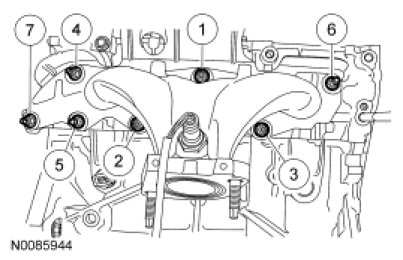

Install a new exhaust manifold gasket, the exhaust manifold and 7 new nuts in the sequence shown in 2 stages:
Stage 1: Tighten to 48 Nm (35 lb-ft).
Stage 2: Tighten to 48 Nm (35 lb-ft).
