Home >> Ford >> 2010 >> Fusion FWD L4-2.5L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

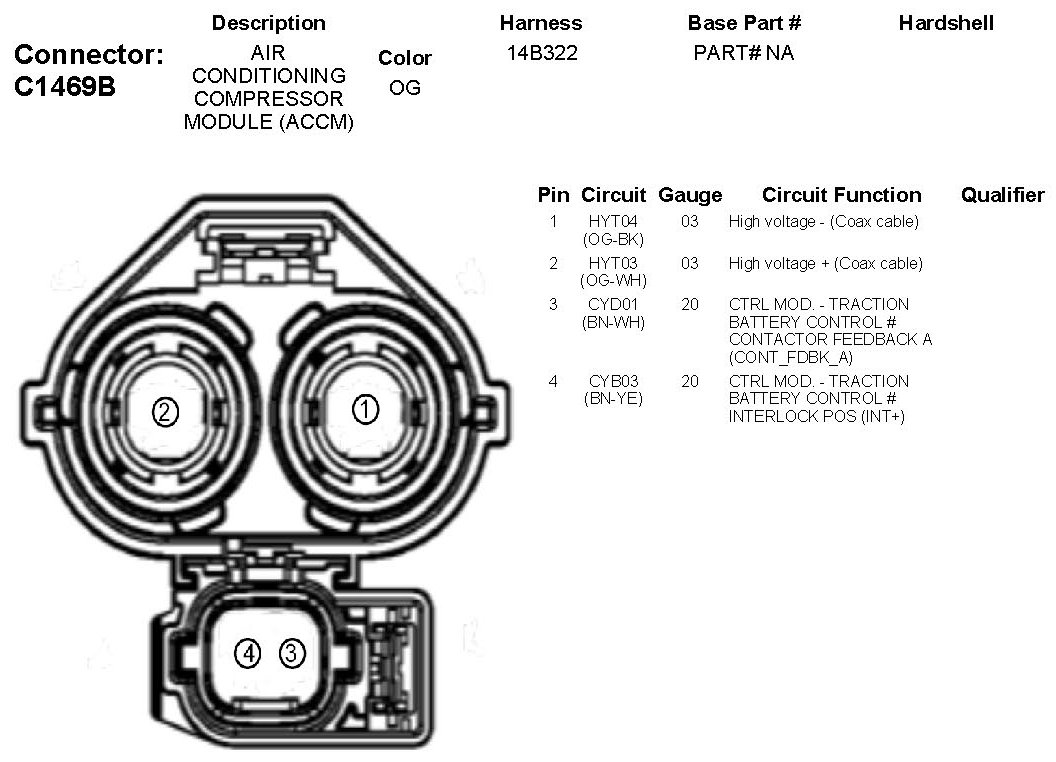

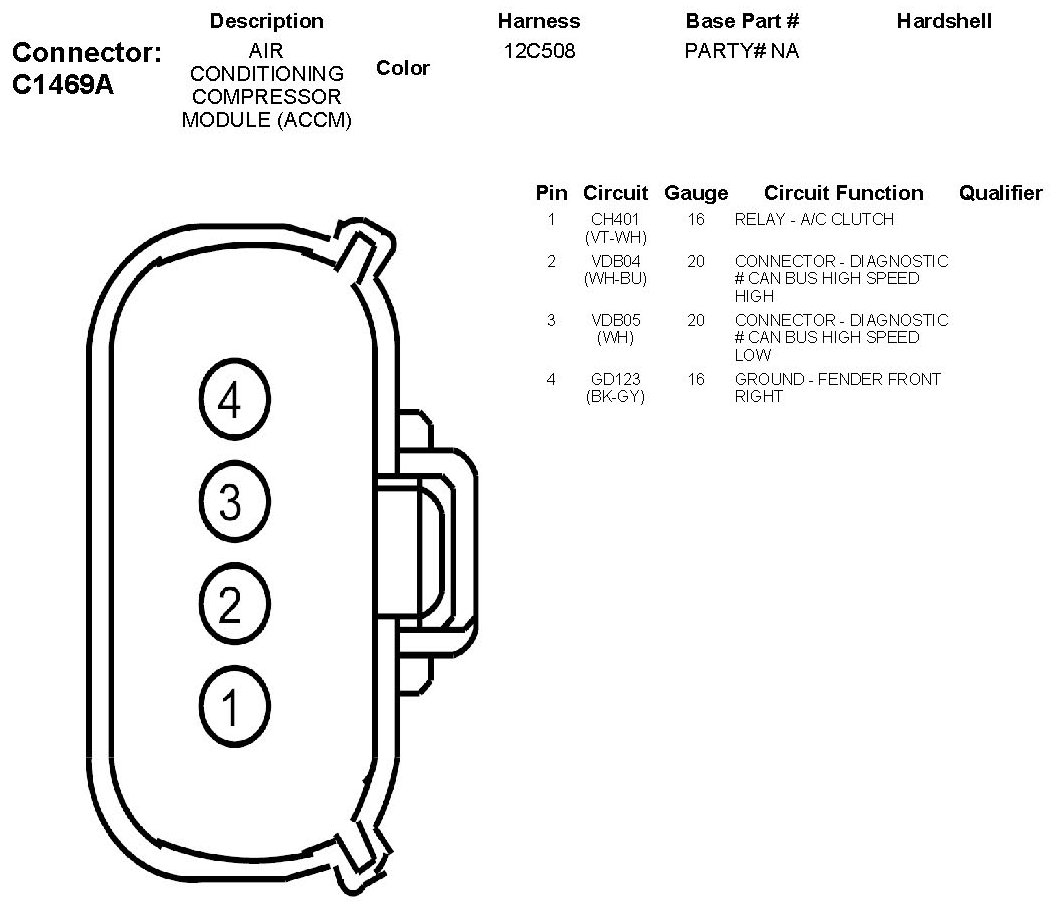

Control Assembly, HVAC
