Spark Plugs




Spark Plugs

Removal and Installation

1. Remove the ignition coil. For additional information, refer to Ignition Coil-On-Plug Ignition Coil-On-Plug.

2. NOTICE: Only use hand tools when removing or installing the spark plugs, or damage can occur to the cylinder head or spark plug.

NOTE: Remove foreign material from the spark plug well using compressed air.

Remove the spark plug.

- To install, tighten to 12 Nm (106 lb-in).

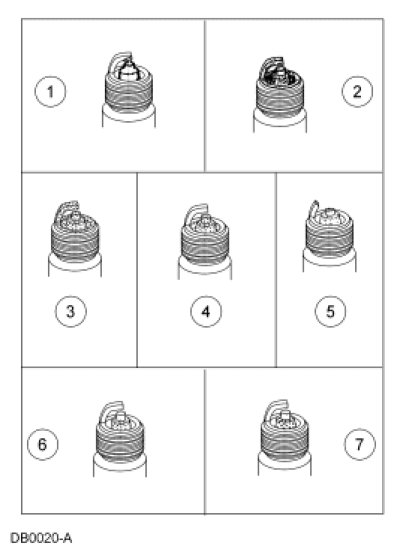

3. Inspect the spark plugs.











4. Check and adjust the spark plug gap as necessary.





5. To install, reverse the removal procedure.
