Cruise Control Deactivator Switch




Cruise Control Deactivator Switch

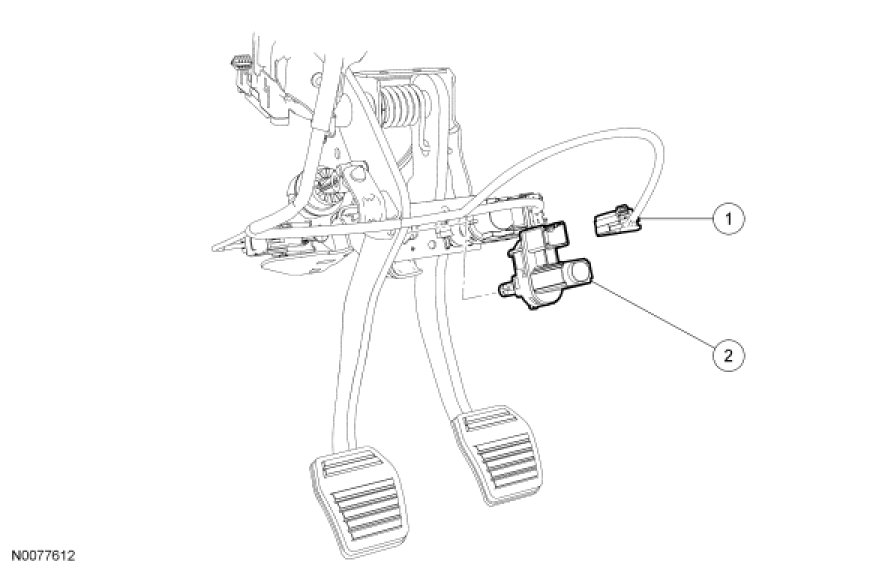

Removal and Installation

1. Disconnect the electrical connector.

2. Rotate the cruise control deactivator switch counterclockwise one-quarter turn.

3. Remove the cruise control deactivator switch.

4. To install, reverse the removal procedure.
