Seat - Exploded View, Third Row




Seat - Exploded View, Third Row

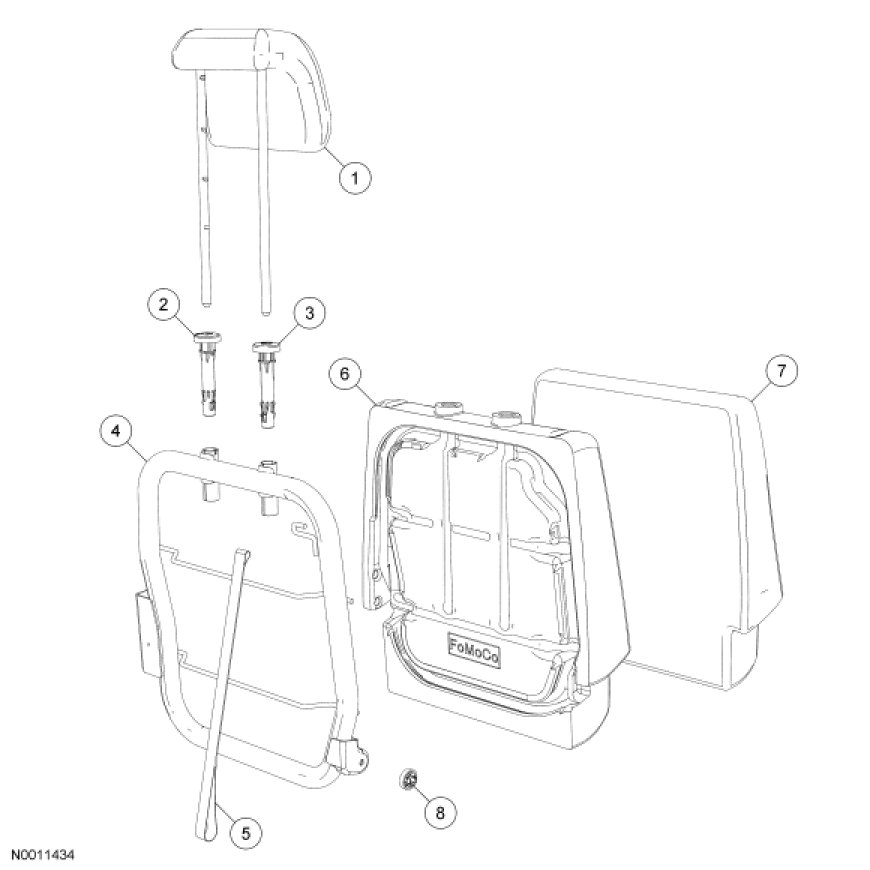

Backrest

NOTE: LH shown, RH similar.

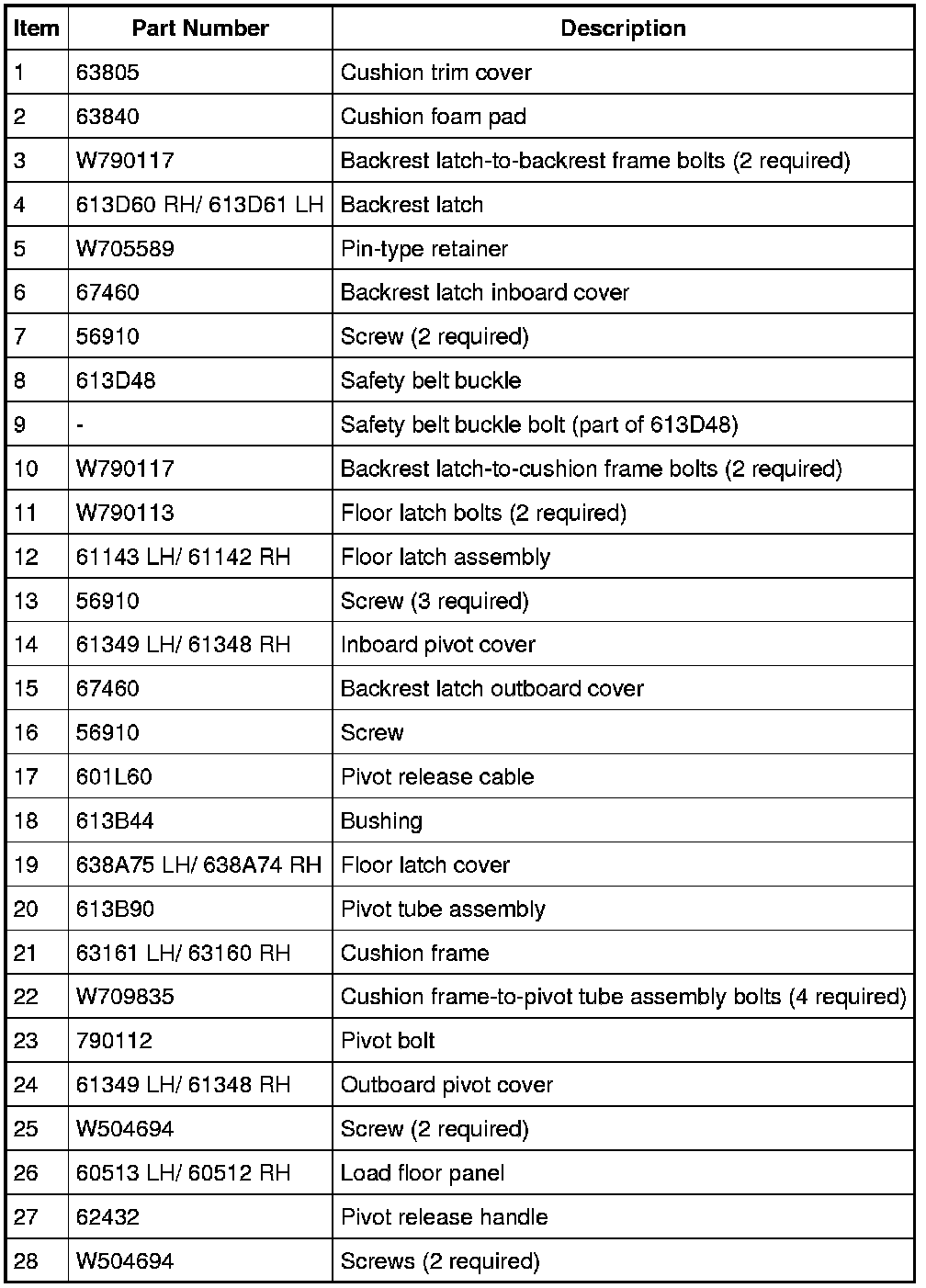

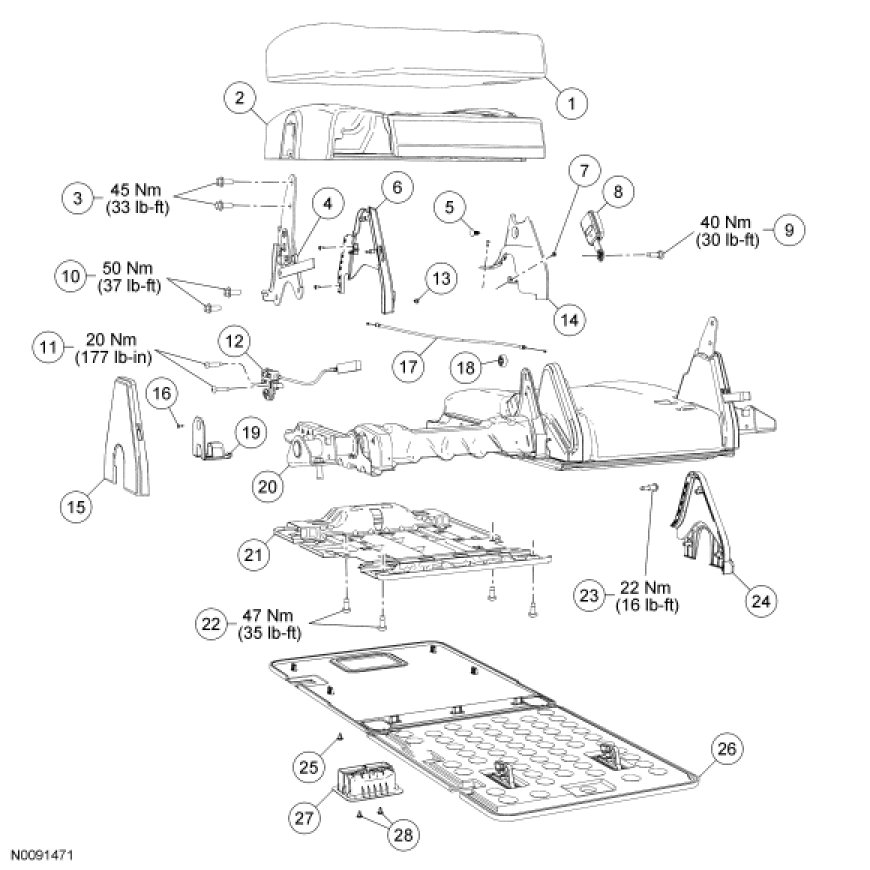

Cushion
