Parking Assist Control Module: Service and Repair

Parking Aid Module (PAM) - Explorer

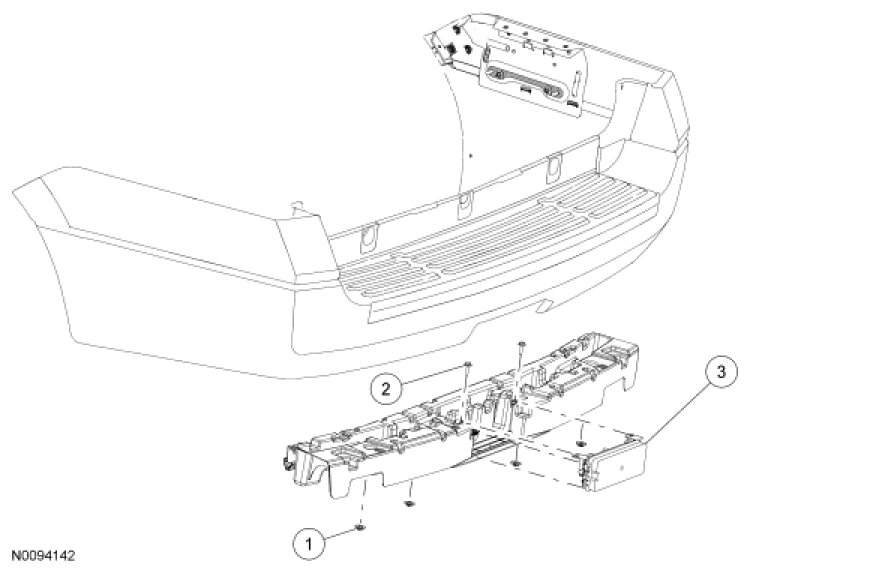

Removal and Installation

1. Disconnect the Parking Aid Module (PAM) bumper harness from the body harness.

2. Remove the rear bumper cover. For additional information, refer to Bumper.

3. Remove the 4 insulator-to-bumper cover nuts and the insulator from the bumper cover.

4. Disconnect the PAM bumper harness from the PAM.

5. Remove the 2 PAM bolts.

6. Remove the PAM assembly.

7. To install, reverse the removal procedure.
