Air Duct: Service and Repair

Air Inlet Duct

Removal and Installation

1. Remove the heater core and evaporator core housing. Service and Repair

2. Remove the air inlet duct.

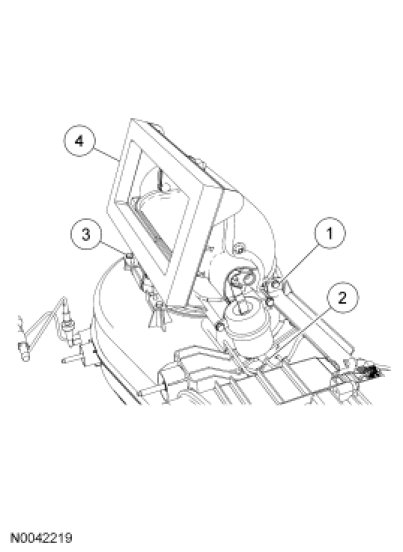

1. Remove the support bracket screw.

2. Disconnect the air inlet door vacuum control motor vacuum connector.

3. Remove the 3 air inlet duct screws.

4. Remove the air inlet duct.





3. To install, reverse the removal procedure.
