Power Mirror Motor: Service and Repair




Exterior Mirror Motor

Removal and Installation

NOTE: RH shown, LH similar.

1. Remove the exterior mirror glass. For additional information, refer to Exterior Mirror Glass Exterior Mirror Glass.

2. Remove the exterior mirror motor screws.

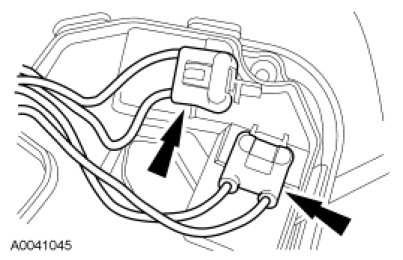

3. Disconnect the exterior mirror motor electrical connectors.





4. To install, reverse the removal procedure.
