Running Board

Running Board

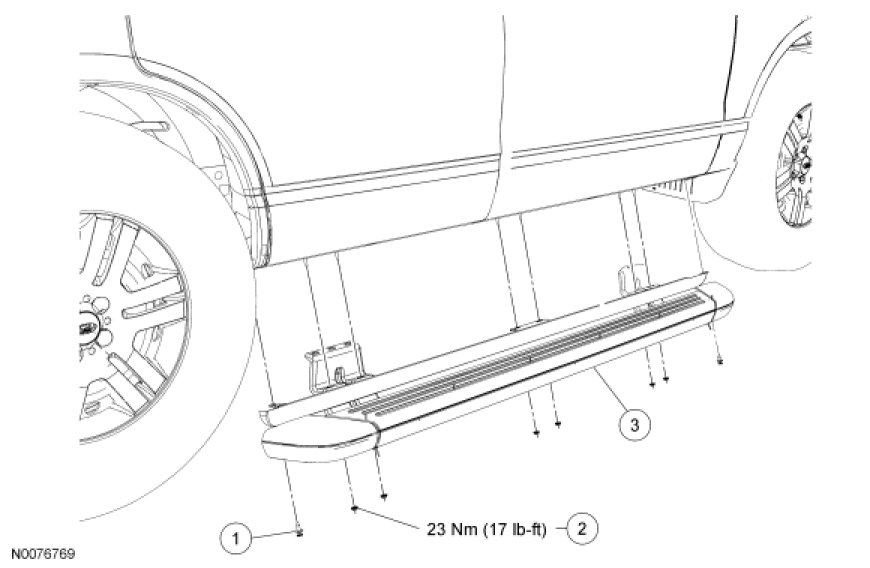

NOTE: Explorer Limited shown, all others similar.











Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. Remove the 6 running board retaining nuts.
- To install, tighten to 23 Nm (17 lb-ft).

3. Remove the 2 running board pin-type retainers.

4. Remove the running board.

5. To install, reverse the removal procedure.
